LED VALUE HW 90 45 W/6500 K E40

Product benefits
  • Energy savings of up to 50 % compared to conventional compact fluorescent lamps
  • Accessory cover works as a reflector and increase the illuminance up to 100 %
  • Wide beam angle: 200°
  • Long lifetime of up to 20,000 h
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 45 W
Construction wattage 45.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 90 W
Nominal current 203 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.90

Photometrical data

Luminous flux 4500 lm
Nominal useful luminous flux 90° 4500 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 256.00 mm
Diameter 137.00 mm
Maximum diameter 137 mm
Product weight 350.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) E40
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CB, EMC, RoHS
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LV HW 45W/865 2

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E40
Length 256.00 mm
Height 137.00 mm
Width 137.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 50 % compared to conventional compact fluorescent lamps
  • Accessory cover works as a reflector and increase the illuminance up to 100 %
  • Wide beam angle: 200°
  • Long lifetime of up to 20,000 h
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
Areas of application
  • Suitable for indoor applications.
  • Warehouses
  • Workshops
  • Stadiums
  • Car parks
Product features
  • Luminous efficacy: up to 100 lm/W
  • Color rendering index Ra: ≥ 80
  • Power factor: 0.9
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075723511 Folding box
1		 144 mm x 144 mm x 270 mm 552.00 g 5.60 dm³
4058075723528 Shipping box
10		 737 mm x 302 mm x 295 mm 6581.00 g 65.66 dm³

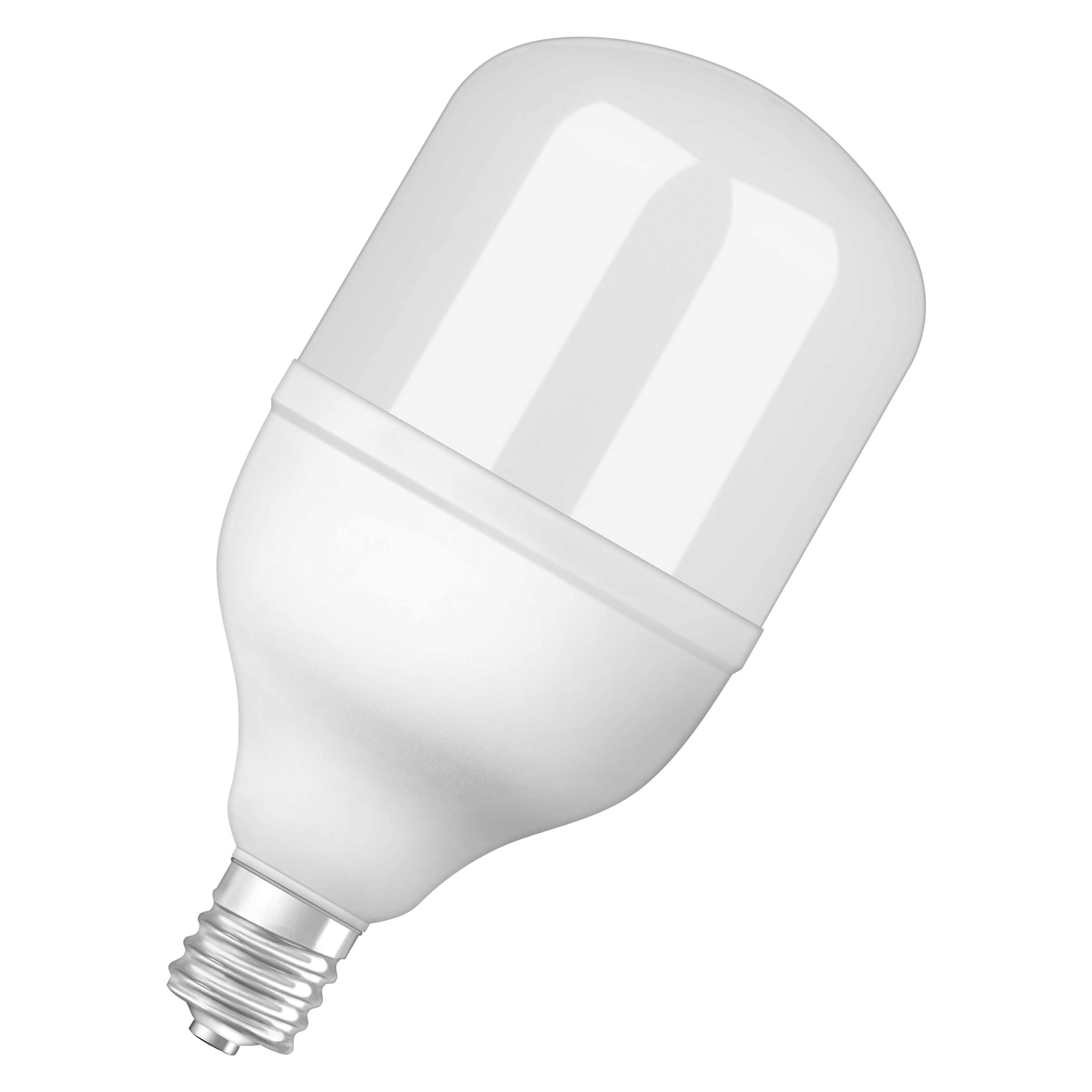

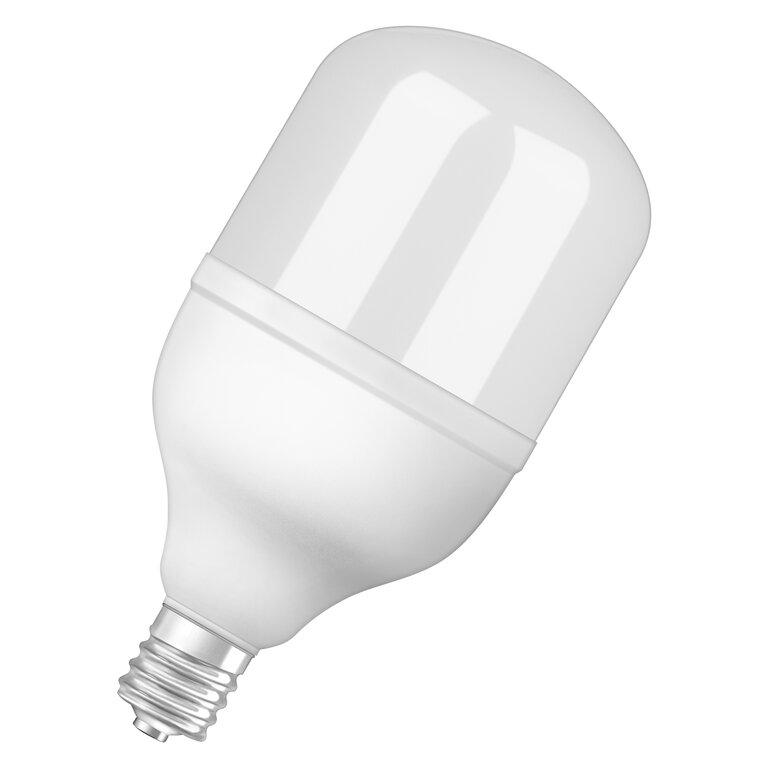

Product image: white background, diagonal
HW ECO and VALUE 45W E 40 JPG (1.33 MB)

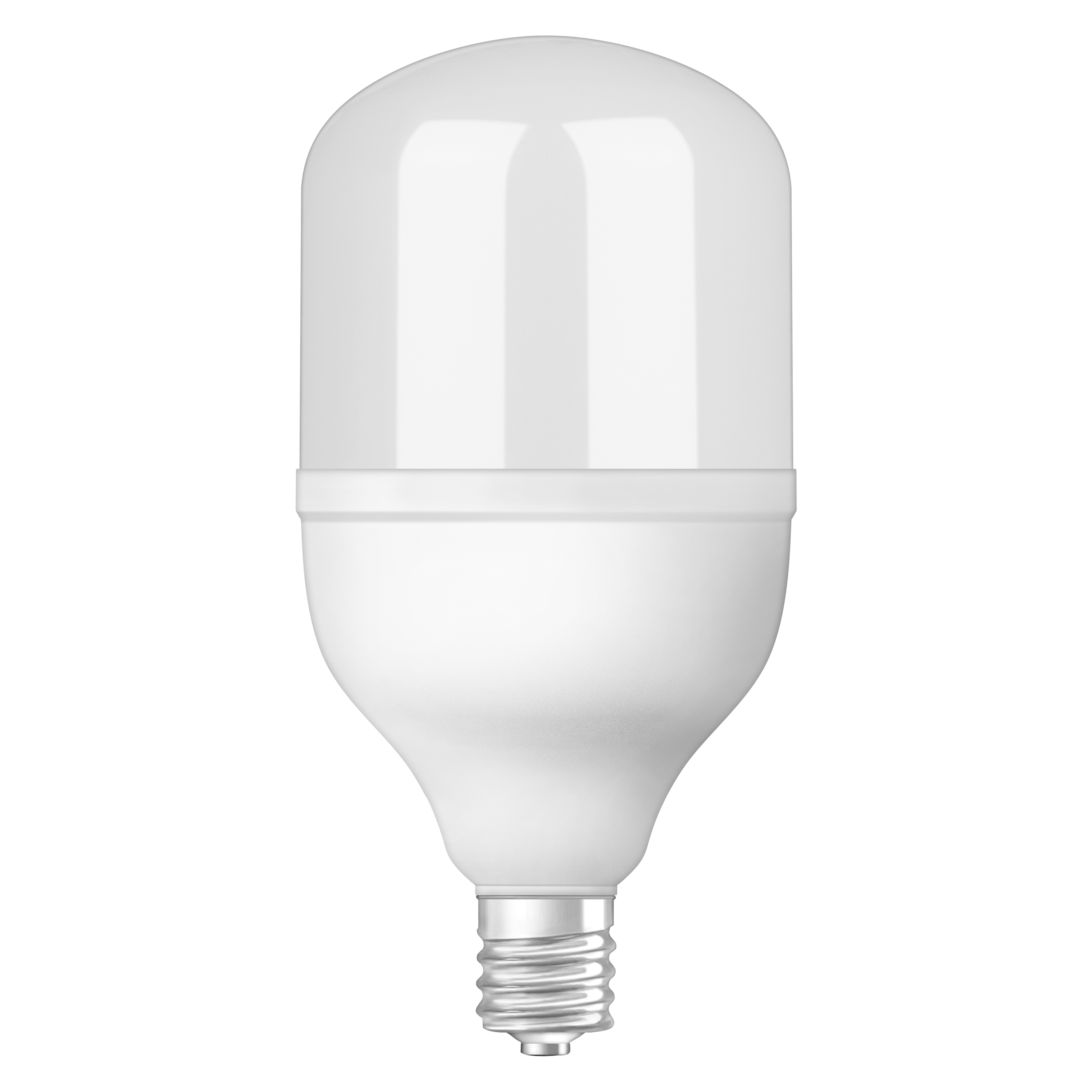

Product image: white background, upright
HW ECO and VALUE 45W E 40 JPG (1.23 MB)
Product line drawing with numbers
LV HW 45W 220 240V E40 SVG (7.37 KB)
