LED PFM MR16 60 ° 7.5 W/3000 K GU5.3

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps due to compact full glass design and single optic
  • Clear cast shadows for brilliant accent light
  • Good quality of light
  • Creation of the preferred light ambience thanks to dimming
  • Very low energy consumption
  • Easy installation
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details

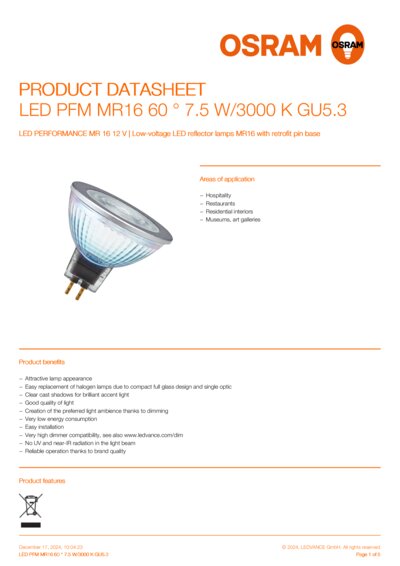

Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7.5 W
Construction wattage 7.50 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 50 W
Nominal current 650 mA
Type of current AC/DC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.90

Photometrical data

Luminous intensity 550 cd
Luminous flux 760 lm
Nominal useful luminous flux 90° 760 lm
Luminous efficacy 101 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra > 90
Light color 930
Rated peak intensity 550 cd

Light technical data

Beam angle 60 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 44.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 45.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes

Certificates & Standards

Type of protection IP20

Country-specific categorizations

Order reference LPMR1650607,5W/

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU5.3
Length 44.00 mm
Height 50.00 mm
Width 50.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps due to compact full glass design and single optic
  • Clear cast shadows for brilliant accent light
  • Good quality of light
  • Creation of the preferred light ambience thanks to dimming
  • Very low energy consumption
  • Easy installation
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Hospitality
  • Restaurants
  • Residential interiors
  • Museums, art galleries
Product features
  • Single optic design
  • Input voltage: 12 VAC
  • Mercury-free lamps
  • Lifetime up to 25,000 h
  • Dimmable
  • High color consistency: ≤ 6 SDCM
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075535411 Folding box
1		 54 mm x 54 mm x 93 mm 65.00 g 0.27 dm³
4099854025822 Shipping box
10		 282 mm x 118 mm x 108 mm 778.00 g 3.59 dm³
