Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Dimmable |
|---|---|---|---|---|---|---|
| Emergency Lighting 6 W/840 | G5 | 6 W | 42 V | 10000 h | 300 lm | Yes |
| Nominal wattage | 6 W |
| Construction wattage | 6.00 W |
| Nominal voltage | 42 V |
| Nominal current | 0.16 A |
| Luminous flux | 300 lm |
| Luminous efficacy | 50 lm/W |
| Light color (designation) | LUMILUX Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥80 |
| Light color | 840 |
| Rated LLMF at 2,000 h | 0.80 |
| Rated LLMF at 4,000 h | 0.74 |
| Rated LLMF at 6,000 h | 0.71 |
| Rated LLMF at 8,000 h | 0.69 |
| Overall length | 226.30 mm |
| Length with base excl. base pins/connection | 212,00 mm |
| Diameter | 16.00 mm |
| Tube diameter | 16 mm |
| Product weight | 20.02 g |
| Service life | 4500 h |
| Rated lamp survival factor at 2,000 h | 0.99 |
| Rated lamp survival factor at 4,000 h | 0.99 |
| Rated lamp survival factor at 6,000 h | 0.95 |
| Rated lamp survival factor at 8,000 h | 0.81 |
| Lifespan B50 | 10000 h |
| Base (standard designation) | G5 |
| Mercury content | 2.9 mg |

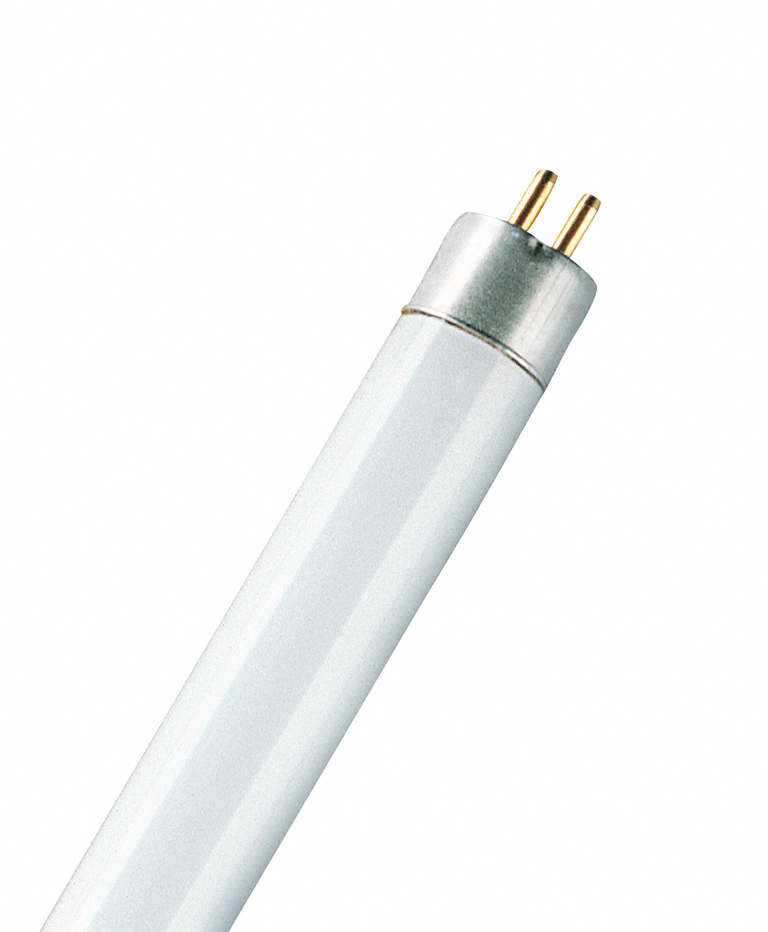

| Design / version | Emergency Lighting (Basic) T5 short tubular, G5 base |
| Product remark | T5 SHORT for emergency lighting |
| Dimmable | Yes |
| Energy efficiency class | G |
| Energy consumption | 6.00 kWh/1000h |
| ILCOS | FD-6/840-E-G5-16/212 |
| Order reference | L 6W/840 EL |
| Lighting technology used | OTHER_FL |
| Non-directional or directional | NDLS |
| Mains or non-mains | NMLS |
| Light source cap-type (or other electric interface) | G5 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 226.30 mm |
| Height | 16.00 mm |
| Width | 16.00 mm |
| Chromaticity coordinate x | 0,380 |
| Chromaticity coordinate y | 0,380 |
| Beam angle correspondence | SPHERE_360 |
| EPREL ID | 546307 |
| Model number | AC34074 |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321325662 | Sleeve 1 |
19 mm x 19 mm x 227 mm | 24.50 g | 0.08 dm³ |
| 4008321325679 | Shipping box 25 |
247 mm x 103 mm x 109 mm | 764.00 g | 2.77 dm³ |
| EAN | SEG number | STK number | EFO number |
|---|---|---|---|
| 4008321325662 | 8329148 | 4930123 | 3860911 |
