HALOSTAR OVEN

Choose your product version

10 W 12 V G4

20 W 12 V G4

20 W 12 V G4

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Dimmable
HALOSTAR OVEN 10 W 12 V G4 G4 10 W 12 V 2000 h 130 lm Yes
HALOSTAR OVEN 20 W 12 V G4 G4 20 W 12 V 2000 h 300 lm Yes
HALOSTAR OVEN 20 W 12 V G4 G4 20 W 12 V 2000 h 300 lm Yes


HALOSTAR OVEN 10 W 12 V G4

Product benefits
  • Two to three times the luminous efficiency of conventional oven lighting
  • Optimum halogen content for high temperatures
  • Tempered pins for reliable contact at high temperatures
  • Suitable for pyrolysis (permissible ambient temperature 450 °C)
  • Contains no mercury
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 12 V
Operating mode 12V AC/DC
Nominal current 834 mA
Type of current AC/DC
Power factor λ 1.00

Photometrical data

Luminous flux 130 lm
Luminous efficacy 13 lm/W
Lumen main.fact.at end of nom.life time 0.85
Light color (designation) Warm White
Color temperature 2800 K
Color rendering index Ra 100
Light color 1028
Standard deviation of color matching ≤6 sdcm
UV protection Yes

Light technical data

Starting time < 0.2 s

Dimensions & Weight

Overall length 30.00 mm
Light center length (LCL) 21,5 mm
Diameter 8.00 mm
Maximum diameter 8 mm
Product weight 1.1 g

Temperatures & operating conditions

Ambient temperature range -20…+450 °C
Maximum temperature at tc test point 450 °C

Lifespan

Lifespan L70/B50 at 25 °C 2000 h
Number of switching cycles 8000

Additional product data

Base (standard designation) G4
Mercury content 0.0 mg
Mercury-free Yes
Product remark Heat-resistant up to 300 °C, Lamp suitable for oven with high temperature self cleaning (Lamps must be switched off! Max. ambient temperature 450 °C), For use in shielded luminaires only

Capabilities

Dimmable Yes 1)
Burning position Any

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class G 1)
Energy consumption 10.00 kWh/1000h
Standards CE, EAC, UKCA

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

ILCOS HSGT/C/UB-10-12-G4-10/21,5
Order reference 64418 OVEN 10W

LOGISTICAL DATA

Temperature range at storage -20…+85 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used HL
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G4
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.0 W
Claim of equivalent power No
Length 30.00 mm
Height 8.00 mm
Width 8.00 mm
Chromaticity coordinate x 0.452
Chromaticity coordinate y 0.408
R9 Colour rendering index 100
Beam angle correspondence SPHERE_360
Survival factor 0.85
EPREL ID 714454,2194499
Model number AC35315,AC68758

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Two to three times the luminous efficiency of conventional oven lighting
  • Optimum halogen content for high temperatures
  • Tempered pins for reliable contact at high temperatures
  • Suitable for pyrolysis (permissible ambient temperature 450 °C)
  • Contains no mercury
Areas of application
  • Baking ovens
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
  • Not designed as a replacement for conventional lighting in private household.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300308081 Folding box
1		 23 mm x 25 mm x 70 mm 4.10 g 0.04 dm³
4050300942339 Shipping box
40		 144 mm x 107 mm x 121 mm 196.00 g 1.86 dm³
4099854491641 Shipping box
20		 134 mm x 75 mm x 99 mm 118.00 g 0.99 dm³
4099854491658 Shipping box
120		 247 mm x 154 mm x 224 mm 935.00 g 8.52 dm³
Declarations of conformity

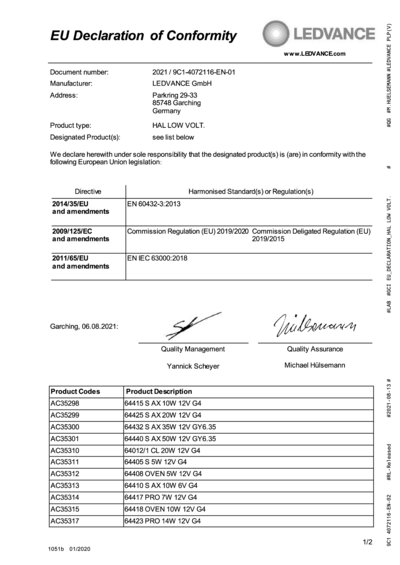

CE Declaration HAL LOW VOLT PDF (286.41 KB)
Declarations of conformity

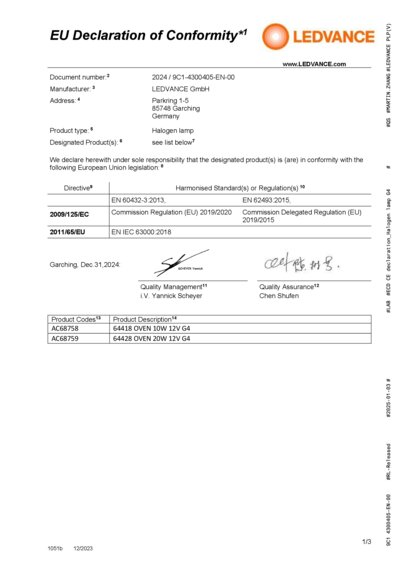

HALOGEN HALOSTAR OVEN 12V G4 PDF (278.46 KB)

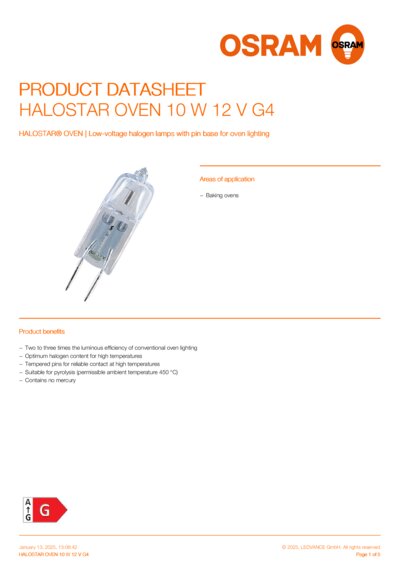

Product datasheet -> old version of product
HALOSTAR®OVENHALOSTARO VEN10W12VG4en PDF (777.8 KB)

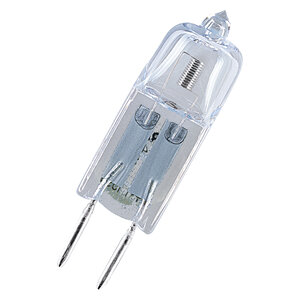

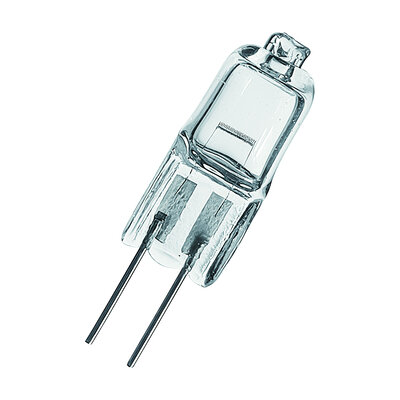

Product image: white background, diagonal
323679_HALOSTAR STARLI TE JPG (2.2 MB)
Product line drawing with letters
626_HALOSTAR STARLITE SVG (8.98 KB)
Product line drawing, front, no dimensions
325083_HALOSTAR STARLI TE SVG (4.25 KB)

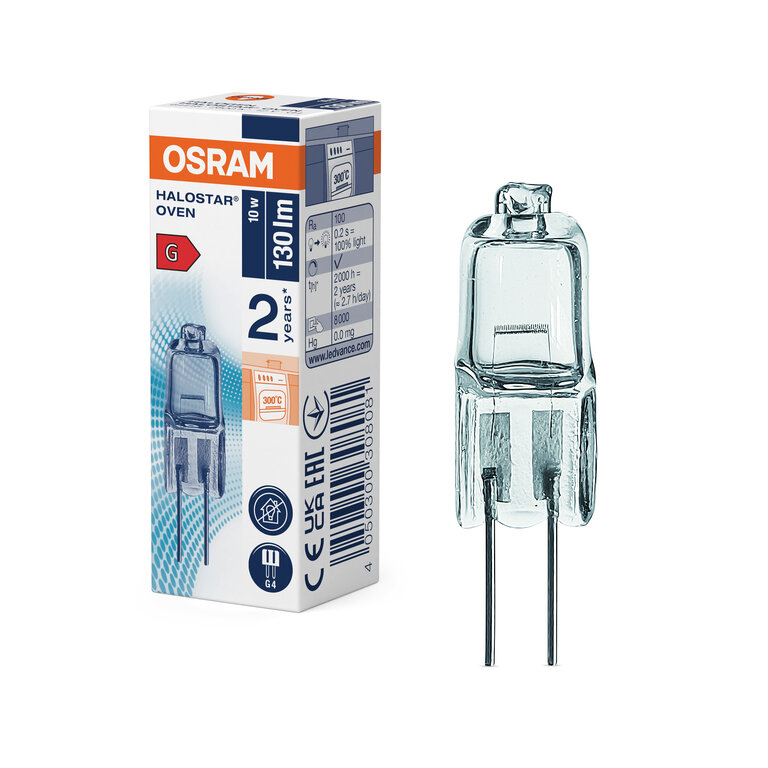

Combo Shot = Product Beauty Shot + Packaging Image
FC1 U1 HALOSTAR OVEN 6 4418 10W 12V G4 JPG (1.6 MB)

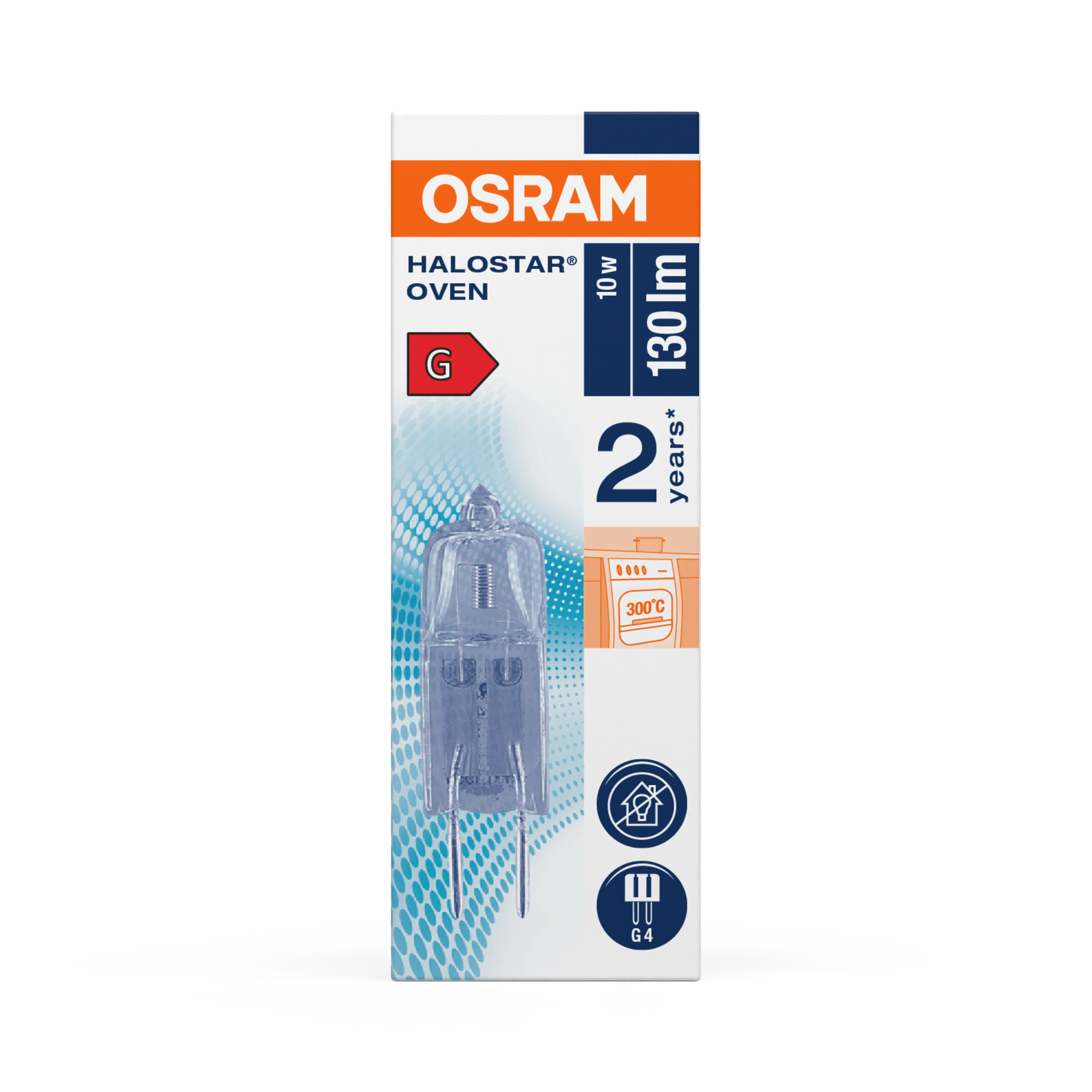

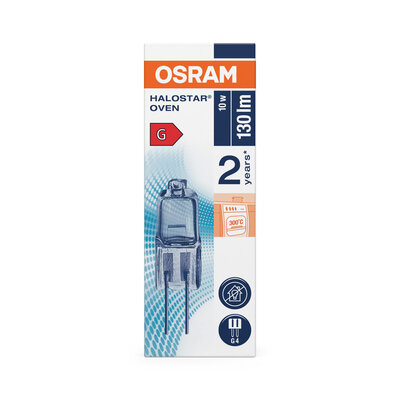

Packaging image, frontal
505585_HAL STANDARD HA LOSTAR OVEN 64418 10W 12V G TIF (981.22 KB)

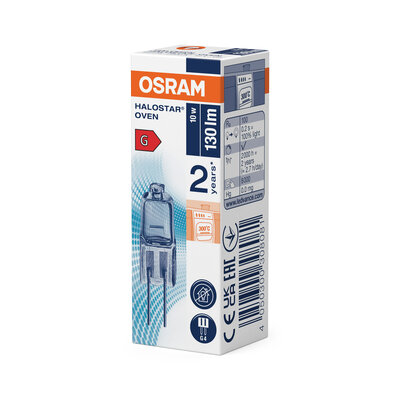

Packaging image, spacial
FC1 U1 HALOSTAR OVEN 6 4418 10W 12V G4 JPG (1.19 MB)
Energy label
EL-4050300308081-AC353 15 PDF (21.37 KB)
Energy label
EL-4050300308081-AC687 58 PDF (21.66 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)

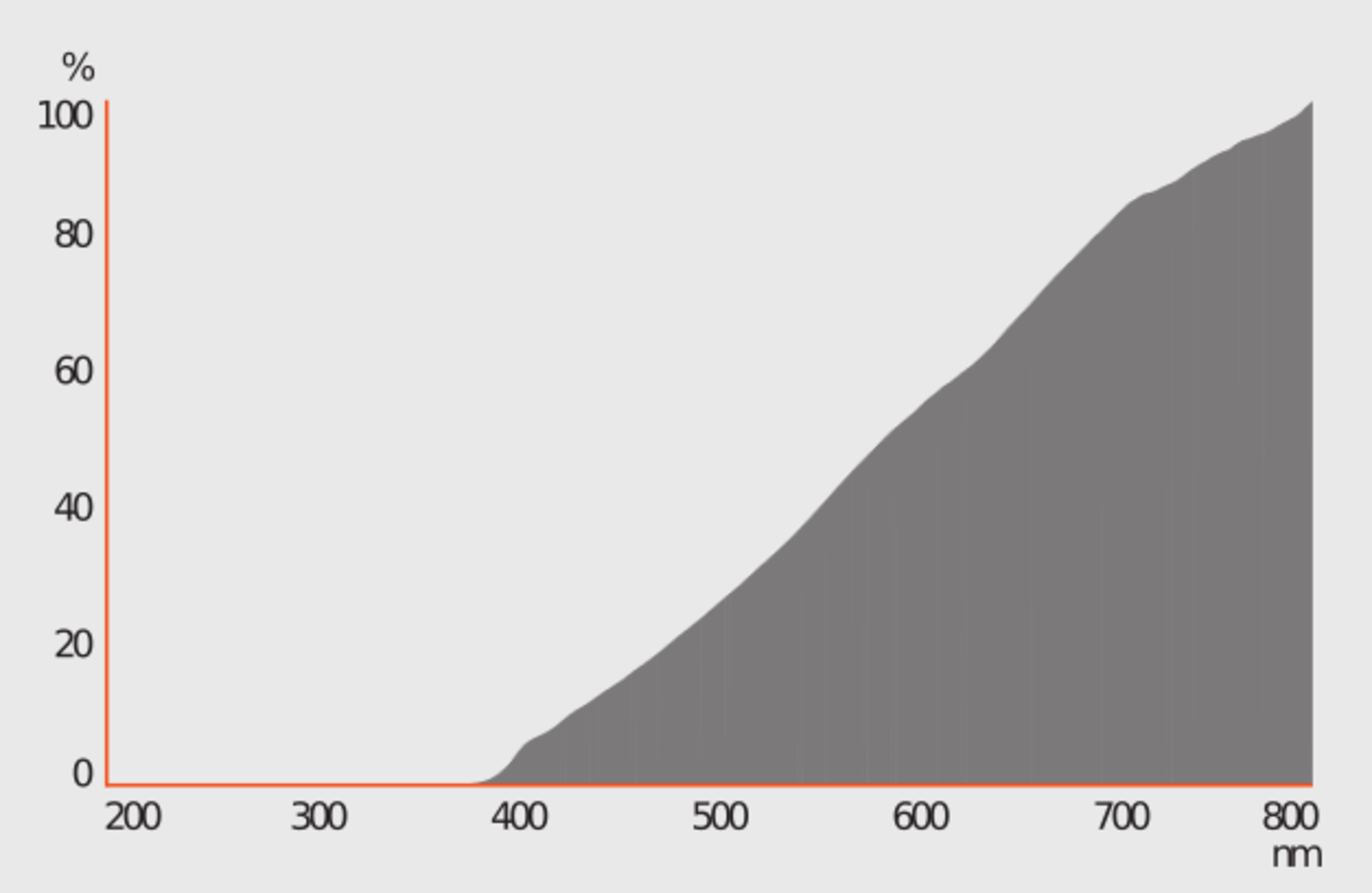

Spectral power distribution
349619_HAL_IRC PNG (102.54 KB)
EAN SEG number STK number EFO number ELDAS number
4050300308081 8326592 4730120 3710636 940330511
