LED PERFORMANCE MR 16 12 V

Choose your product version

36 ° 5 W/2700 K GU5.3

24 ° 5 W/2700 K GU5.3

36 ° 5 W/3000 K GU5.3

10 ° 7.5 W/2700 K GU5.3

10 ° 7.5 W/3000 K GU5.3

36 ° 7.5 W/2700 K GU5.3

24 ° 7.5 W/2700 K GU5.3

36 ° 7.5 W/3000 K GU5.3

24 ° 7.5 W/3000 K GU5.3

36 ° 7.5 W/3000 K GU5.3

36 ° 7.5 W/6500 K GU5.3

36 ° 7.5 W/6500 K GU5.3

60 ° 7.5 W/3000 K GU5.3

60 ° 7.5 W/4000 K GU5.3

60 ° 7.5 W/6500 K GU5.3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P MR16 36 ° 5 W/2700 K GU5.3 GU5.3 5 W 12 V 25000 h 330 lm 35 W 36 ° Yes
P MR16 24 ° 5 W/2700 K GU5.3 GU5.3 5 W 12 V 25000 h 330 lm 35 W 24 ° Yes
P MR16 36 ° 5 W/3000 K GU5.3 GU5.3 5 W 12 V 25000 h 330 lm 35 W 36 ° Yes
LED PFM MR16 10 ° 7.5 W/2700 K GU5.3 GU5.3 7.5 W 12 V 25000 h 500 lm 50 W 10 ° Yes
LED PFM MR16 10 ° 7.5 W/3000 K GU5.3 GU5.3 7.5 W 12 V 25000 h 500 lm 50 W 10 ° Yes
LED PFM MR16 36 ° 7.5 W/2700 K GU5.3 GU5.3 7.5 W 12 V 25000 h 700 lm 50 W 36 ° Yes
LED PFM MR16 24 ° 7.5 W/2700 K GU5.3 GU5.3 7.5 W 12 V 25000 h 700 lm 50 W 24 ° Yes
LED PFM MR16 36 ° 7.5 W/3000 K GU5.3 GU5.3 7.5 W 12 V 25000 h 700 lm 50 W 36 ° Yes
LED PFM MR16 24 ° 7.5 W/3000 K GU5.3 GU5.3 7.5 W 12 V 25000 h 700 lm 50 W 24 ° Yes
LED PFM MR16 36 ° 7.5 W/3000 K GU5.3 GU5.3 7.5 W 12 V 25000 h 700 lm 50 W 36 ° Yes
LED PFM MR16 36 ° 7.5 W/6500 K GU5.3 GU5.3 7.5 W 12 V 25000 h 720 lm 50 W 36 ° Yes
LED PFM MR16 36 ° 7.5 W/6500 K GU5.3 GU5.3 7.5 W 12 V 25000 h 720 lm 50 W 36 ° Yes
LED PFM MR16 60 ° 7.5 W/3000 K GU5.3 GU5.3 7.5 W 12 V 25000 h 760 lm 50 W 60 ° Yes
LED PFM MR16 60 ° 7.5 W/4000 K GU5.3 GU5.3 7.5 W 12 V 25000 h 760 lm 50 W 60 ° Yes
LED PFM MR16 60 ° 7.5 W/6500 K GU5.3 GU5.3 7.5 W 12 V 25000 h 760 lm 50 W 60 ° Yes


P MR16 36 ° 5 W/2700 K GU5.3

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps due to compact full glass design and single optic
  • Clear cast shadows for brilliant accent light
  • Good quality of light
  • Creation of the preferred light ambience thanks to dimming
  • Very low energy consumption
  • Easy installation
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 35 W
Nominal current 460 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.90

Photometrical data

Luminous flux 330 lm
Nominal useful luminous flux 90° 330 lm
Luminous efficacy 66 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 90
Light color 927
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 36 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 44.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 36.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class A 1)
Type of protection IP20
Standards CB, EMC, RoHS

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LPMR163536 5W/9

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU5.3
Length 44.00 mm
Height 50.00 mm
Width 50.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps due to compact full glass design and single optic
  • Clear cast shadows for brilliant accent light
  • Good quality of light
  • Creation of the preferred light ambience thanks to dimming
  • Very low energy consumption
  • Easy installation
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Hospitality
  • Restaurants
  • Residential interiors
  • Museums, art galleries
Product features
  • Single optic design
  • Input voltage: 12 VAC
  • Mercury-free lamps
  • Lifetime up to 25,000 h
  • Dimmable
  • High color consistency: ≤ 6 SDCM
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075588455 Folding box
1		 49 mm x 49 mm x 62 mm 43.00 g 0.15 dm³
4058075588462 Shipping box
10		 255 mm x 107 mm x 72 mm 483.00 g 1.96 dm³

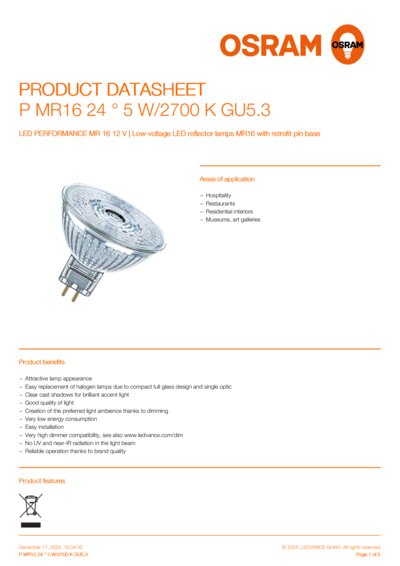

Product datasheet -> old version of product
PMR1636°5W2700KGU5.3en PDF (1.17 MB)

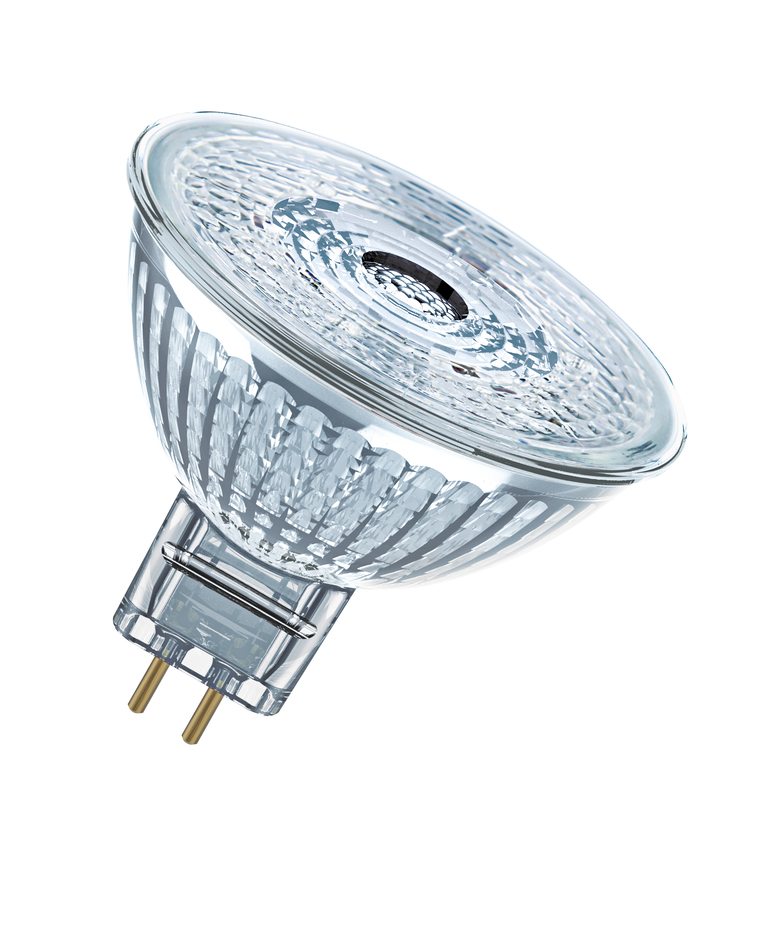

Product image: white background, diagonal
LED PFM MR16 35 GU5.3 TIF (34.1 MB)

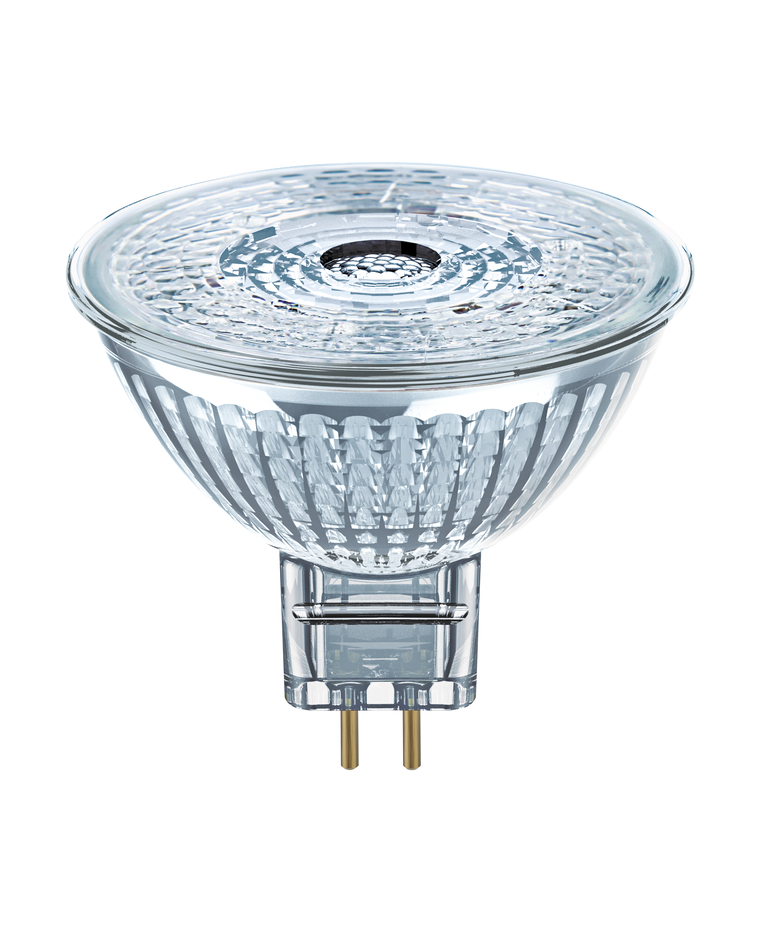

Product image: white background, upright
LED PFM MR16 35 GU5.3 TIF (12.52 MB)
Product line drawing, front, no dimensions
LED SUPERSTAR MR16 12V GU5.3 SVG (5.99 KB)
