LED VALUE MR16 12 V

Choose your product version

36 ° 3 W/2700 K GU5.3

35 36 ° 4.5 W/2700 K GU5.3

35 36 ° 4.5 W/2700 K GU5.3

35 24 ° 4.5 W/2700 K GU5.3

35 36 ° 4.5 W/4000 K GU5.3

50 36 ° 5.5 W/2700 K GU5.3

50 24 ° 5.5 W/2700 K GU5.3

60 ° 5.5 W/3000 K GU5.3

50 36 ° 5.5 W/3000 K GU5.3

60 ° 5.5 W/3000 K GU5.3

60 ° 5.5 W/6500 K GU5.3

60 ° 5.5 W/6500 K GU5.3

36 ° 6 W/2700 K GU5.3 Ra 80

36 ° 6 W/6500 K GU5.3 Ra 80

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE MR 16 36 ° 3 W/2700 K GU5.3 GU5.3 3 W 12 V 15000 h 230 lm 20 W 36 ° No
LED VALUE MR 16 35 36 ° 4.5 W/2700 K GU5.3 GU5.3 4.5 W 12 V 15000 h 350 lm 35 W 36 ° No
LED VALUE MR 16 35 36 ° 4.5 W/2700 K GU5.3 GU5.3 4.5 W 12 V 15000 h 420 lm 35 W 36 ° No
LED VALUE MR 16 35 24 ° 4.5 W/2700 K GU5.3 GU5.3 4.5 W 12 V 15000 h 420 lm 35 W 24 ° No
LED VALUE MR 16 35 36 ° 4.5 W/4000 K GU5.3 GU5.3 4.5 W 12 V 15000 h 420 lm 35 W 36 ° No
LED VALUE MR 16 50 36 ° 5.5 W/2700 K GU5.3 GU5.3 5.5 W 12 V 15000 h 530 lm 50 W 36 ° No
LED VALUE MR 16 50 24 ° 5.5 W/2700 K GU5.3 GU5.3 5.5 W 12 V 15000 h 530 lm 50 W 24 ° No
LED VALUE MR 16 60 ° 5.5 W/3000 K GU5.3 GU5.3 5.5 W 12 V 15000 h 530 lm 60 °
LED VALUE MR 16 50 36 ° 5.5 W/3000 K GU5.3 GU5.3 5.5 W 12 V 15000 h 530 lm 50 W 36 ° No
LED VALUE MR 16 60 ° 5.5 W/3000 K GU5.3 GU5.3 5.5 W 12 V 15000 h 530 lm 60 °
LED VALUE MR 16 60 ° 5.5 W/6500 K GU5.3 GU5.3 5.5 W 12 V 15000 h 530 lm 60 °
LED VALUE MR 16 60 ° 5.5 W/6500 K GU5.3 GU5.3 5.5 W 12 V 15000 h 530 lm 60 °
LED VALUE MR 16 36 ° 6 W/2700 K GU5.3 Ra 80 GU5.3 6 W 12.00 V 15000 h 450 lm 40 W 36 ° No
LED VALUE MR 16 36 ° 6 W/6500 K GU5.3 Ra 80 GU5.3 6 W 12.00 V 15000 h 470 lm 40 W 36 ° No


LED VALUE MR 16 36 ° 3 W/2700 K GU5.3

Product benefits
  • Very low energy consumption
  • No UV radiation in the light beam
  • Shockproof and vibration-proof
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 3 W
Construction wattage 3.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 20 W
Nominal current 340 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ 0.70

Photometrical data

Luminous intensity 500 cd
Luminous flux 230 lm
Nominal useful luminous flux 90° 230 lm
Luminous efficacy 76 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Rated peak intensity 500 cd

Light technical data

Beam angle 36 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 46.00 mm
Diameter 51.00 mm
Maximum diameter 51 mm
Product weight 33.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A+ 1)
Type of protection IP20
Standards CB, EMC, RoHS

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LVMR162036 3W/8

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU5.3
Length 46.00 mm
Height 51.00 mm
Width 51.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very low energy consumption
  • No UV radiation in the light beam
  • Shockproof and vibration-proof
Areas of application
  • All domestic rooms, especially where the lamps are visible
  • Outdoor applications only in suitable luminaires
  • Direct and indirect lighting
Product features
  • Not dimmable
  • Base: GU5.3
  • Lifetime up to 15,000 h
  • Mercury-free lamps
Equipment / Accessories
  • Equipped with high-power LEDs
  • Suitable for many commercially available conventional transformers
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075587519 Folding box
1		 49 mm x 49 mm x 62 mm 40.00 g 0.15 dm³
4058075587526 Shipping box
10		 255 mm x 107 mm x 72 mm 453.00 g 1.96 dm³

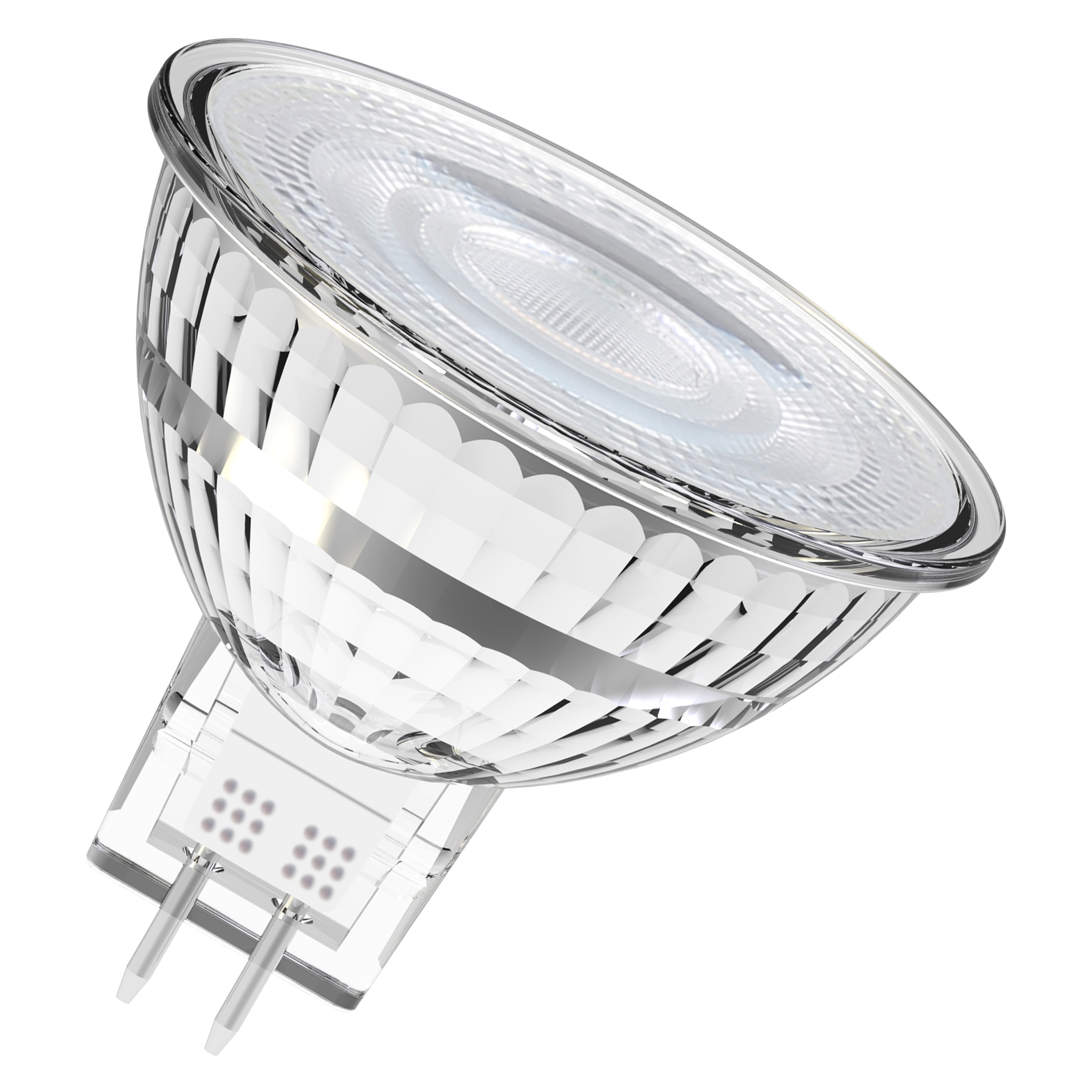

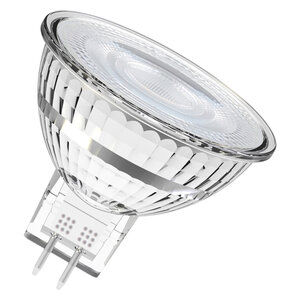

Product image: white background, diagonal
LED VALUE MR16 20 GU5. 3 JPG (1.37 MB)

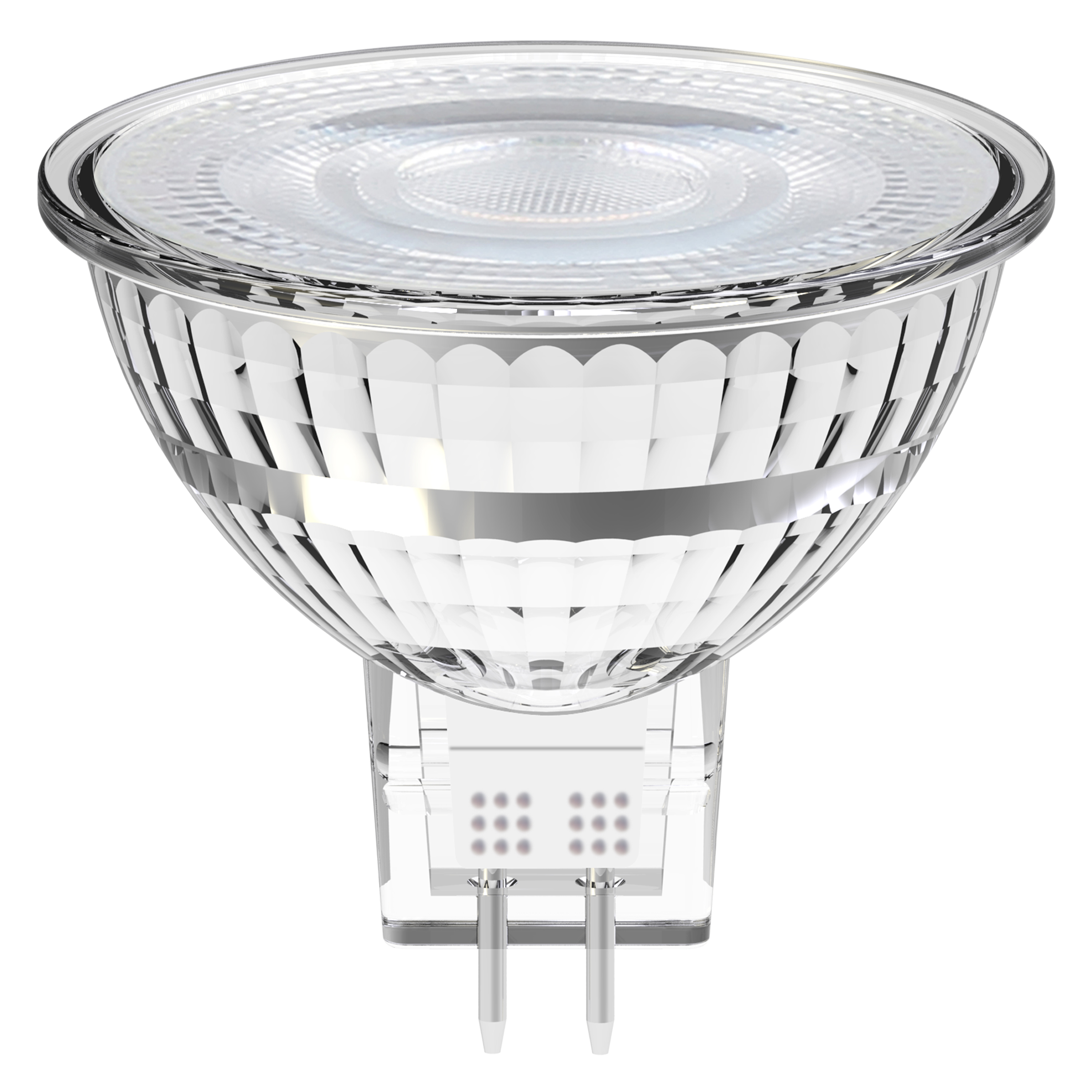

Product image: white background, upright
LED VALUE MR16 20 GU5 .3 JPG (1.32 MB)
Product line drawing, front, no dimensions
506811_LED STAR MR16 5 0 36 SVG (4.12 KB)
