Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
P MR11 20 36 ° 2.6 W/2700 K GU4	GU4	2.6 W	12 V	25000 h	184 lm	20 W	36 °	Yes
P MR11 20 36 ° 3.2 W/2700 K GU4	GU4	3.2 W	12 V	25000 h	184 lm	20 W	36 °	Yes

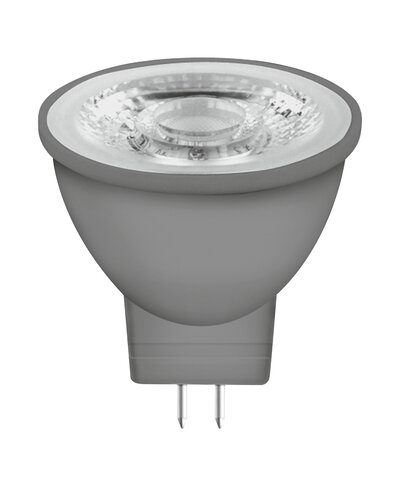

P MR11 20 36 ° 2.6 W/2700 K GU4

Quick, simple and safe replacement without rewiring
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Low maintenance costs thanks to long lifetime
No UV and near-IR radiation in the light beam
Stepless dimming
Very high dimmer compatibility, see also www.ledvance.com/dim
Compatible with many common conventional and electronic control gears (see also compatibility list)
Instant 100 % light, no warm-up time

Nominal wattage	2.6 W
Construction wattage	2.60 W
Nominal voltage	12 V
Claimed equiv. conventional lamp power	20 W
Nominal current	235 mA
Type of current	AC
Inrush current	18 A
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz
Power factor λ	> 0.50

Luminous intensity	400 cd
Luminous flux	184 lm
Nominal useful luminous flux 90°	184 lm
Luminous efficacy	70 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated peak intensity	400 cd
Rated LLMF at 6,000 h	0.80

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	83 °C

Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Base (standard designation)	GU4
Mercury content	0.0 mg
Mercury-free	Yes
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Dimmable

Yes

Energy efficiency class	A+ ¹⁾
Energy consumption	3.00 kWh/1000h
Type of protection	IP20
Standards	CE, CB, EAC
Photobiological safety group acc. to EN62778	RG0

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

ILCOS	DRR-3,3/827-12-GU4-35/36
Order reference	LPMR11D2036 2,6

Light source cap-type (or other electric interface)	GU4
Length	38.00 mm
Height	35,0 mm
Width	35,0 mm

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Quick, simple and safe replacement without rewiring
Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
Low maintenance costs thanks to long lifetime
No UV and near-IR radiation in the light beam
Stepless dimming
Very high dimmer compatibility, see also www.ledvance.com/dim
Compatible with many common conventional and electronic control gears (see also compatibility list)
Instant 100 % light, no warm-up time

Areas of application

Product features

References / Links

For further products and actual information concerning LED lamps see www.ledvance.com/ledlamps
For Guarantee see www.ledvance.com/guarantee
Further information see www.ledvance.com/low-voltage-ledlamps
For dimming conformity see www.ledvance.com/dim

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075813458	Folding box 1	36 mm x 36 mm x 46 mm	21.00 g	0.06 dm³
4058075813465	Shipping box 10	188 mm x 78 mm x 55 mm	238.00 g	0.81 dm³
4058075031142	Shipping box 80	201 mm x 169 mm x 240 mm		8.15 dm³
