PARATHOM PRO MR16

Choose your product version

35 36 ° 6.3 W/3000 K GU5.3 DIM

43 36 ° DIM 7.8 W/3000 K GU5.3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
PPRO MR16 35 36 ° 6.3 W/3000 K GU5.3 DIM GU5.3 6.3 W 12 V 40000 h 350 lm 35 W 36 ° Yes
PPRO MR16 43 36 ° DIM 7.8 W/3000 K GU5.3 GU5.3 7.8 W 12 V 40000 h 500 lm 43 W 36 ° Yes


PPRO MR16 35 36 ° 6.3 W/3000 K GU5.3 DIM

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 6.3 W
Construction wattage 6.30 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 35 W
Nominal current 950 mA
Type of current AC/DC
Inrush current 9.9 A
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.50

Photometrical data

Luminous intensity 900 cd
Luminous flux 350 lm
Nominal useful luminous flux 90° 350 lm
Luminous efficacy 55 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 97
Light color 930
Standard deviation of color matching ≤3 sdcm
Rated peak intensity 900 cd
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 53.00 mm
Diameter 51.00 mm
Maximum diameter 51 mm
Product weight 65.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 80 °C

Lifespan

Number of switching cycles 1000000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class A 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LPMR16D3536 6,3

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU5.3
Length 53.00 mm
Height 51.00 mm
Width 51.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • Low maintenance costs thanks to long lifetime
  • No UV and near-IR radiation in the light beam
  • Stepless dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • Instant 100 % light, no warm-up time
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Shops and exhibition rooms
  • Domestic applications
  • Commercial applications
  • Accent lighting
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to low voltage halogen lamps
  • High color consistency: ≤ 3 SDCM
  • Dimmable
  • Base: GU5.3
  • Lamp made of glass
  • Excellent color rendering CRI > 97
  • Lifetime up to 40,000 h
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075094970 Folding box
1		 49 mm x 49 mm x 62 mm 72.00 g 0.15 dm³
4058075094987 Shipping box
10		 255 mm x 107 mm x 72 mm 813.00 g 1.96 dm³

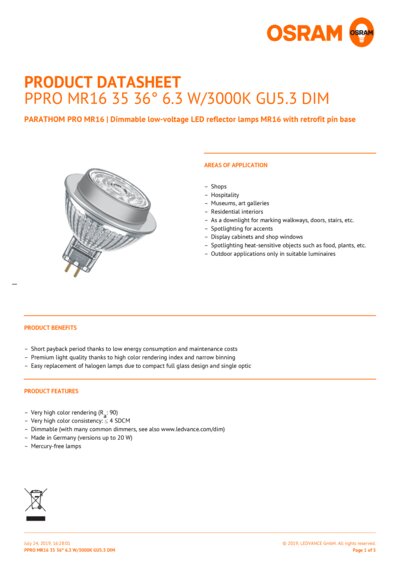

PRODUCT DATASHEET
PPRO MR16 35 36 6.3 W 3000K GU5.3 DIM DATAS HEET PDF (494.89 KB)

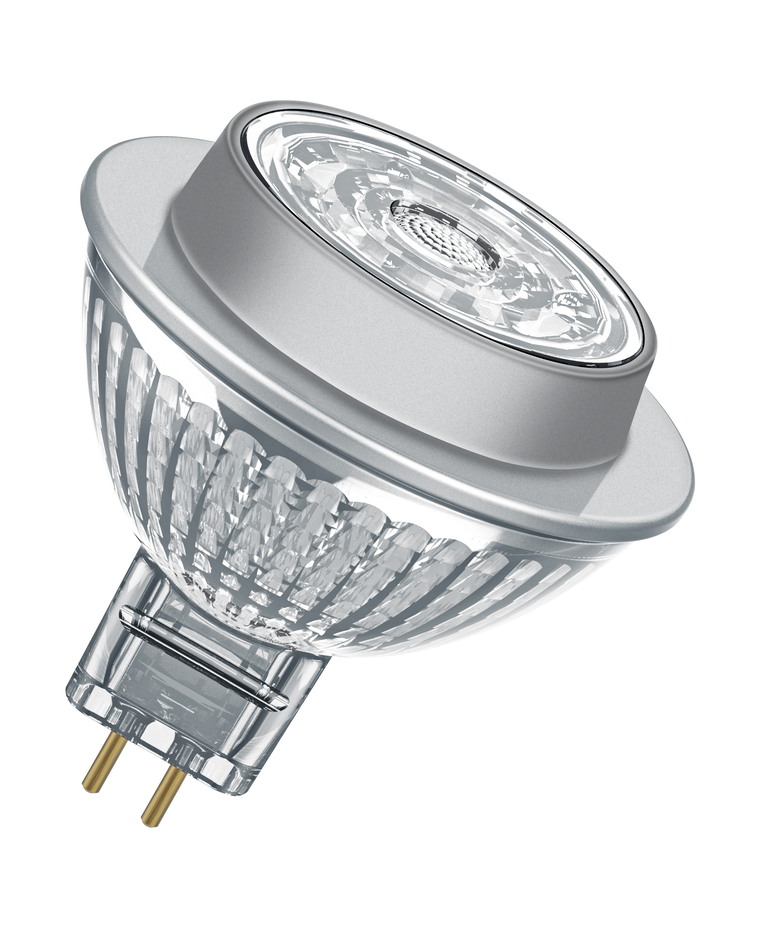

Product image: white background, diagonal
LED MR16 high lumen TIF (89.67 MB)

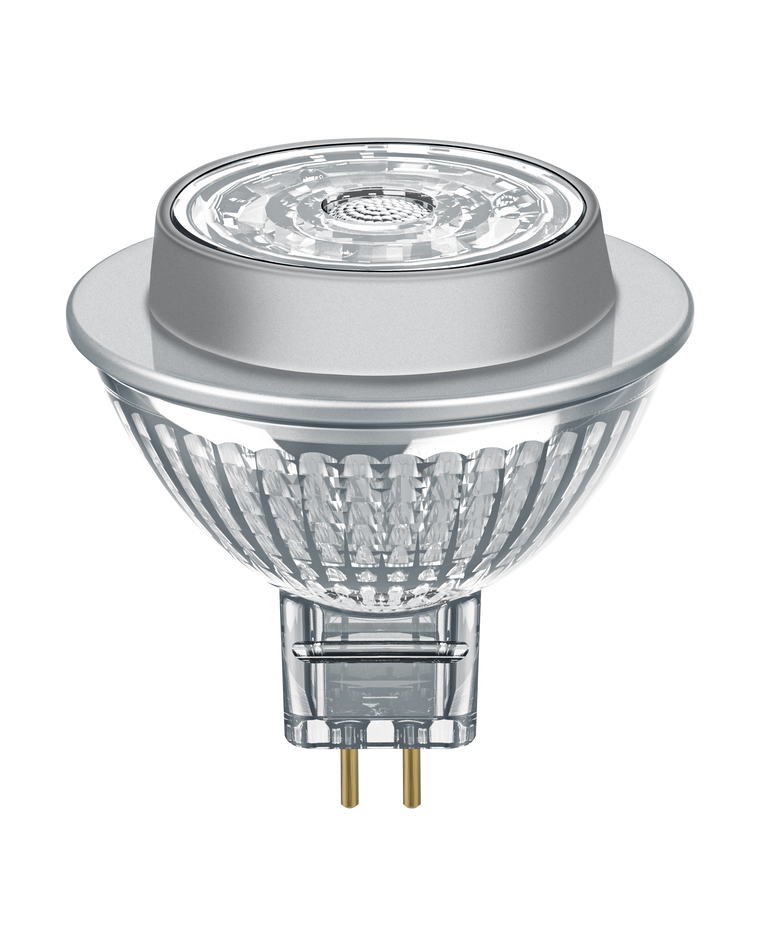

Product image: white background, upright
LED MR16 high lumen TIF (89.67 MB)
Product line drawing with letters
LED MR16 high lumen SVG (16.93 KB)
Product line drawing with numbers
LED MR16 high lumen SVG (18.22 KB)
Product line drawing, front, no dimensions
666418_MR16 43/50 2016 SVG (17.91 KB)
Product line drawing - technical
LED MR16 high lumen SVG (14.01 KB)
Packaging image, frontal
PARA PRO MR16 35 DIM b a36 6.3W 830 GL GU5.3 MiCh TIF (3.22 MB)
Packaging image, spacial
PARA PRO MR16 35 DIM b a36 6.3W 830 GL GU5.3 MiCh TIF (4.9 MB)
IES file (IES)
AC07565_MR16356,3W12VG U5,3 IES (5.13 KB)
LDT file (Eulumdat)
AC07565_MR16356,3W12VG U5,3 LDT (2.43 KB)
Light distribution curve type cone
LPMR16D3536 6,3W 930 1 2V GU5.3 FS1 OSRAM SVG (54.62 KB)
Light distribution curve type polar
LPMR16D3536 6,3W 930 1 2V GU5.3 FS1 OSRAM SVG (216.46 KB)
Spectral power distribution
OS GW P9LT31.CM 10 C 3 000K SVG (11.78 KB)
EAN SEG number EFO number ELDAS number
4058075094970 8293971 3719969 941801650
