LED PIN 12 V

Choose your product version

0.9W 827 Clear G4

1.5W 827 Clear G4

2.2W 827 Clear G4

2.2W 827 Clear GY6.35

3.3W 827 Clear GY6.35

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PIN 10 320° 0.9W 827 Clear G4 G4 0.9 W 12 V 15000 h 100 lm 10 W 320 ° No
LED PIN 20 320° 1.5W 827 Clear G4 G4 1.5 W 12 V 15000 h 200 lm 20 W 320 ° No
LED PIN 28 320° 2.2W 827 Clear G4 G4 2.2 W 12 V 15000 h 300 lm 28 W 320 ° No
LED PIN 28 320° 2.2W 827 Clear GY6.35 GY6.35 2.2 W 12 V 15000 h 300 lm 28 W 320 ° No
LED PIN 40 320° 3.3W 827 Clear GY6.35 GY6.35 3.3 W 12 V 15000 h 470 lm 40 W 320 ° No


LED PIN 10 320° 0.9W 827 Clear G4

Product benefits
  • Variable use at Direct Current and Alternating Current
  • Good all-around light emission
  • Ideal for decorative and free-burning applications
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 0.9 W
Construction wattage 0.90 W
Nominal voltage 12 V
Operating mode 12V AC/DC
Claimed equiv. conventional lamp power 10 W
Nominal current 130 mA
Type of current AC/DC
Inrush current 12.3 A
Max. lamp number on MCB B10 A 48
Max. lamp number on MCB B16 A 61
Total harmonic distortion < 150 %
Power factor λ > 0.50

Photometrical data

Luminous flux 100 lm
Nominal useful luminous flux 90° 100 lm
Luminous efficacy 111 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 33.00 mm
Diameter 12 mm
Maximum diameter 12 mm
Product weight 2.6 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 85 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G4
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 1.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPIN10 CL 0,9

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G4
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 33.00 mm
Height 12 mm
Width 12 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 1403247,522866

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Variable use at Direct Current and Alternating Current
  • Good all-around light emission
  • Ideal for decorative and free-burning applications
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Decorative applications
  • Atmospheric accent lighting throughout the home
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • LED alternative to low voltage halogen lamps
  • Base: G4, GY6.35
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075431935 Folding box
1		 20 mm x 49 mm x 95 mm 9.60 g 0.09 dm³
4058075449770 Folding box
2		 20 mm x 49 mm x 95 mm 12.20 g 0.09 dm³
4058075622517 Shipping box
6		 109 mm x 79 mm x 104 mm 89.60 g 0.90 dm³
4058075622821 Shipping box
12		 109 mm x 79 mm x 104 mm 96.00 g 0.90 dm³
4058075449794 Shipping box
160		 256 mm x 236 mm x 237 mm 1612.00 g 14.32 dm³
4058075622524 Shipping box
48		 236 mm x 176 mm x 237 mm 1029.00 g 9.84 dm³
4058075622838 Shipping box
96		 236 mm x 176 mm x 237 mm 1090.00 g 9.84 dm³
4058075431959 Shipping box
80		 256 mm x 236 mm x 237 mm 1420.00 g 14.32 dm³
Declarations of conformity
LED PIN 20 NON-DIM 12V PDF (297.28 KB)
PRODUCT DATASHEET
PIN103200.9W2700KG4en PDF (104.28 KB)
PRODUCT DATASHEET
PIN103200.9W2700KG4en PDF (104.21 KB)

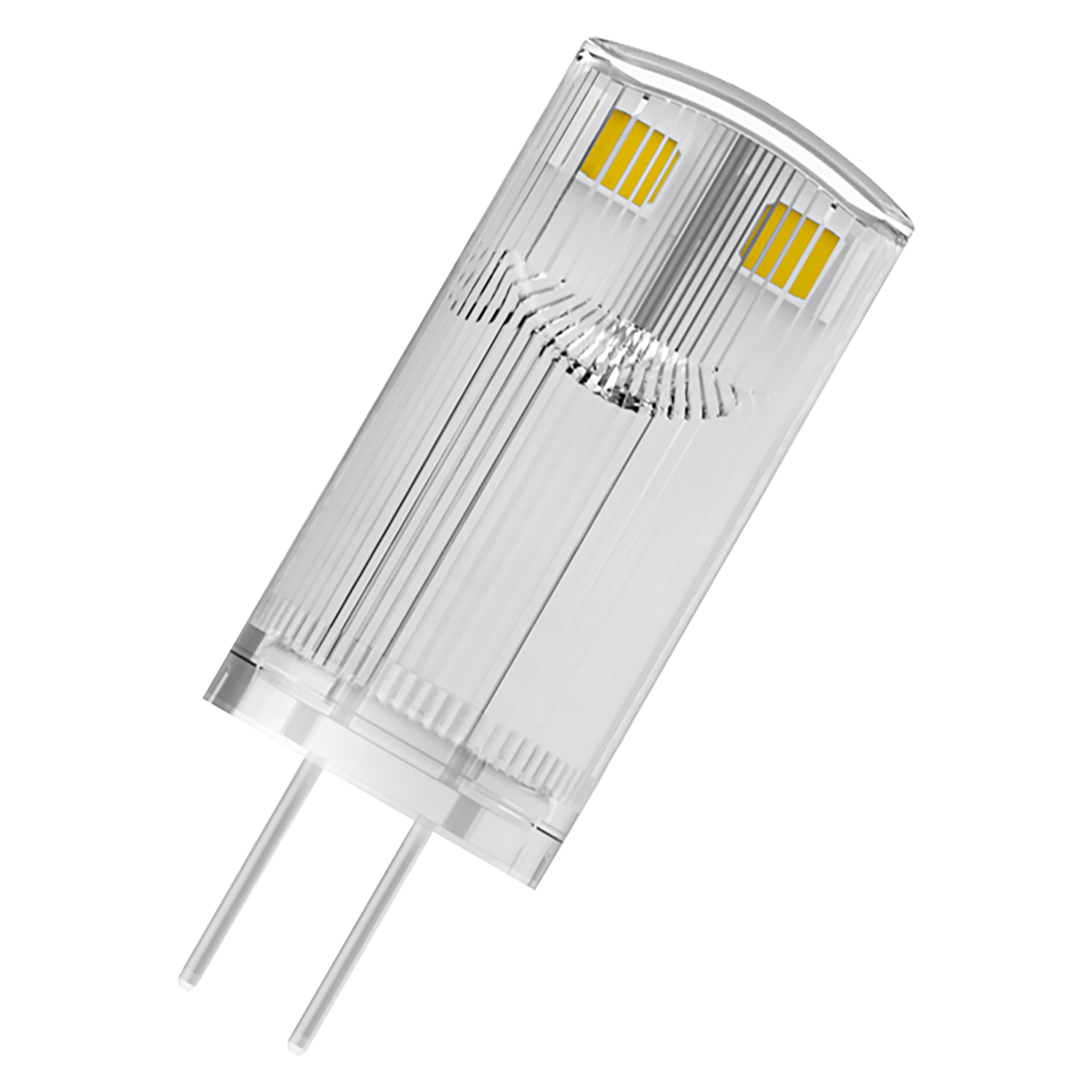

Product image: white background, diagonal with OSRAM logo
LED PIN 10 G4 clear TIF (1.92 MB)
Product image: white background, diagonal
LED PIN 10 G4 clear TIF (1.21 MB)
Product image: white background, upright, OSRAM logo
LED PIN 10 G4 clear TIF (1.92 MB)
Product image: white background, upright
LED PIN 10 G4 clear TIF (1.92 MB)
Product line drawing with letters
LED PIN 10 G4 clear SVG (7.4 KB)

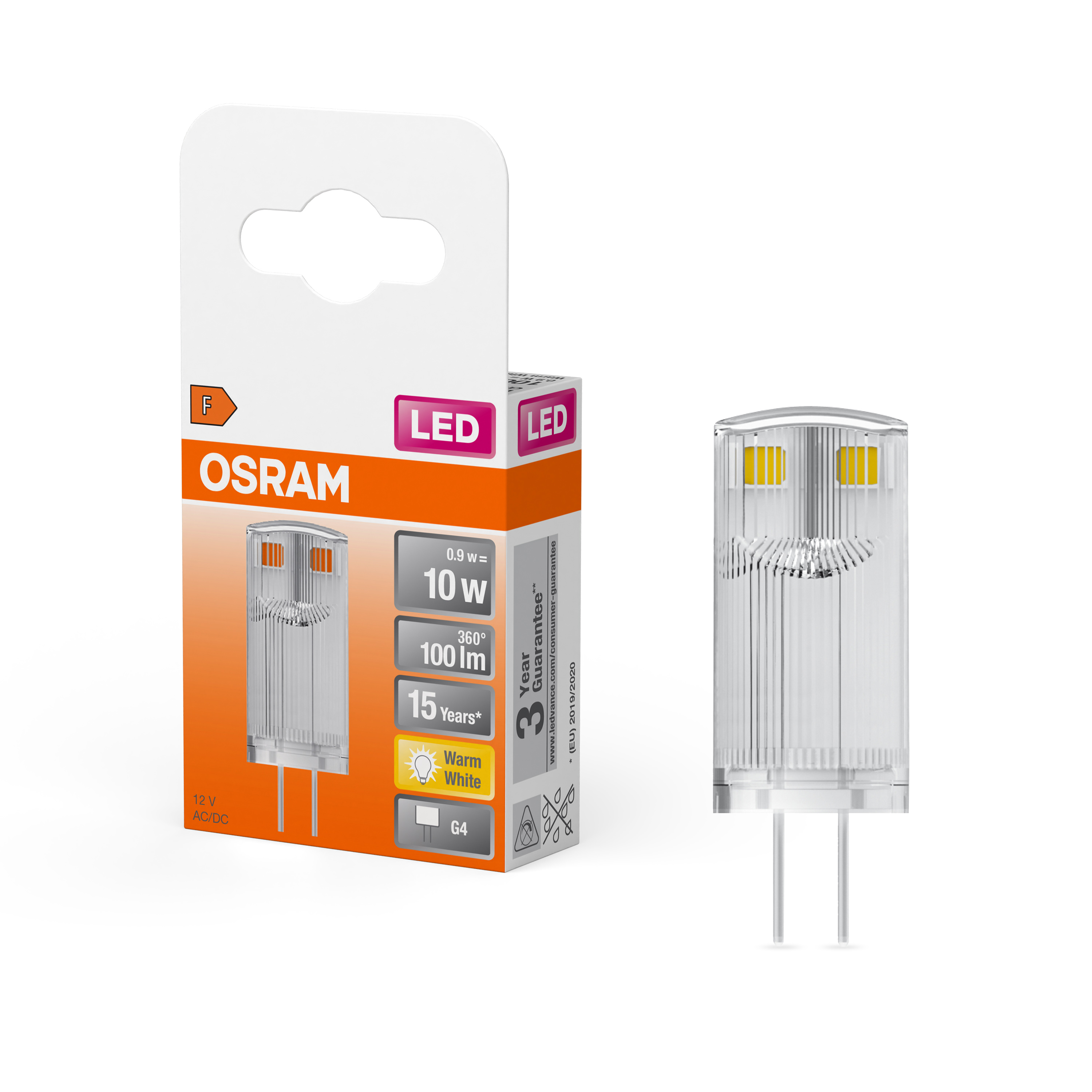

Combo Shot = Product Beauty Shot + Packaging Image
LEDPIN10 CL 0,9W-827 1 2V G4 FS1 OSRAM JPG (673.43 KB)
Combo Shot = Product Beauty Shot + Packaging Image
FC2 LED ST PIN 10 0.9W 827 CL G4 JPG (676.63 KB)

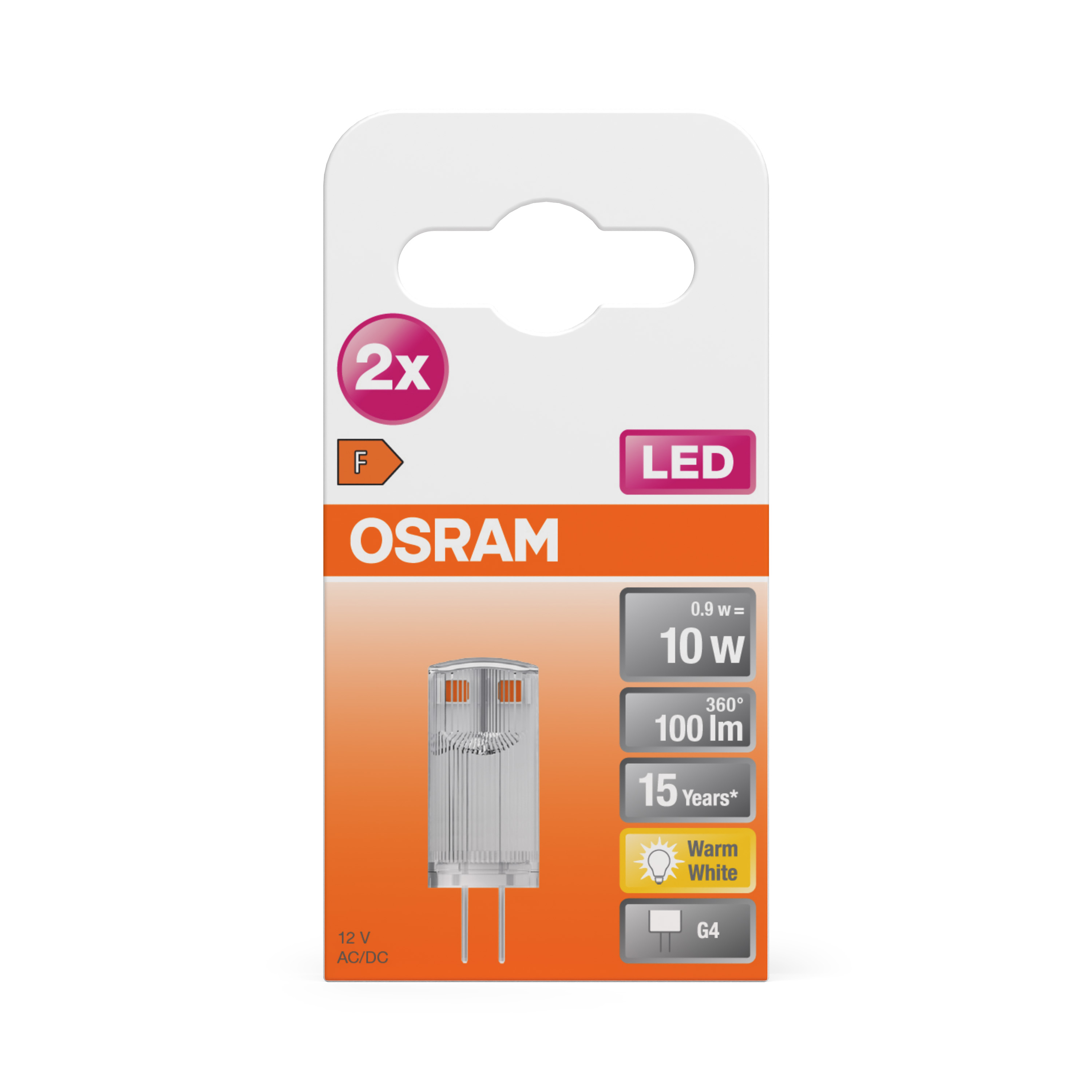

Packaging image, frontal
LED ST PIN 10 0.9W 827 CL G4 MiCh TIF (559.34 KB)
Packaging image, frontal
LED ST PIN 10 0.9W 827 CL G4 MiCh TIF (570.23 KB)

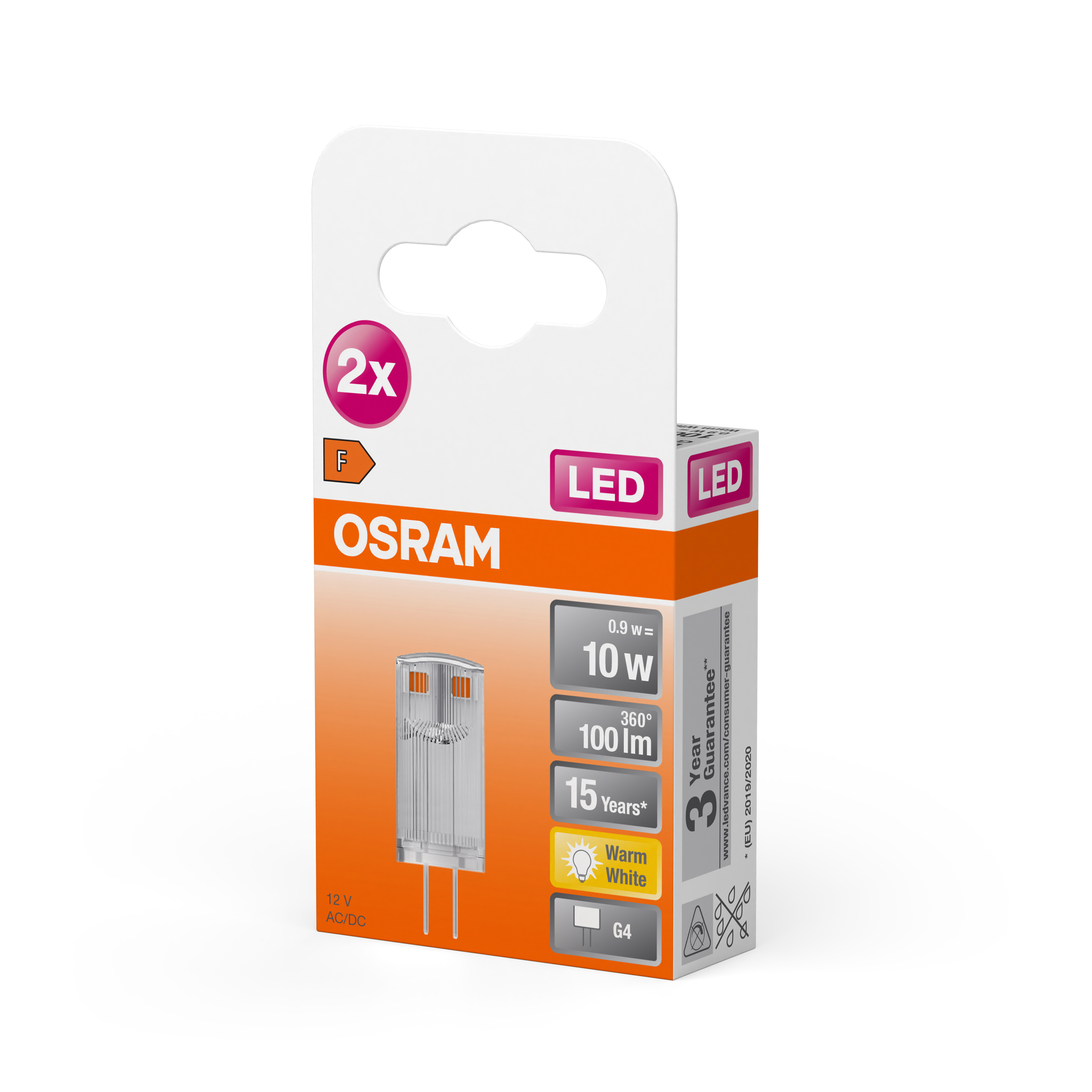

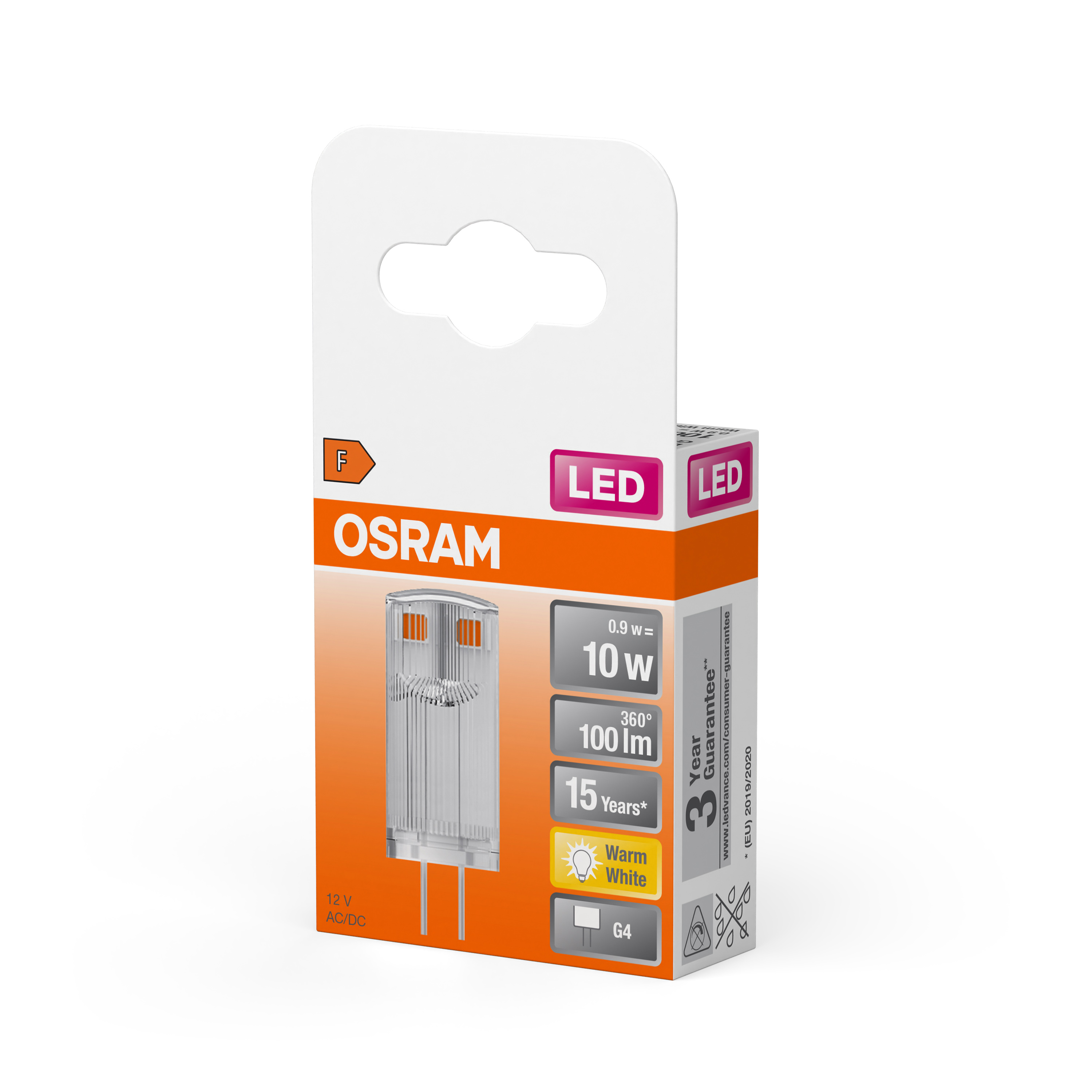

Packaging image, spacial
