PARATHOM DIM LED PIN G4 12 V

Choose your product version

20 320 ° 2 W/2700 K G4

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P DIM PIN 20 320 ° 2 W/2700 K G4 G4 2 W 12 V 25000 h 200 lm 20 W 320 ° Yes


P DIM PIN 20 320 ° 2 W/2700 K G4

Product benefits
  • Very long lifetime of up to 25,000 h
  • Very low energy consumption
  • Easy replacement of halogen lamps thanks to compact design
  • Ideal for decorative and free-burning applications
  • Lower thermal output (compared with the standard reference product)
  • Five year guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 2 W
Construction wattage 2.00 W
Nominal voltage 12 V
Operating mode 12V AC/DC
Claimed equiv. conventional lamp power 20 W
Nominal current 180 mA
Type of current AC/DC
Inrush current 3.95 A
Max. lamp number on MCB B10 A 40
Max. lamp number on MCB B16 A 46
Total harmonic distortion 37.9 %
Power factor λ > 0.90

Photometrical data

Luminous flux 200 lm
Nominal useful luminous flux 90° 200 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 40.00 mm
Diameter 15,0 mm
Maximum diameter 15 mm
Product weight 5.5 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 90 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G4
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LEDPPIN20D CL 2

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G4
Correlated colour temperature type SINGLE_VALUE
Length 40.00 mm
Height 15,0 mm
Width 15,0 mm
Displacement factor 0.5
EPREL ID 1402999
Model number AC17652

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very long lifetime of up to 25,000 h
  • Very low energy consumption
  • Easy replacement of halogen lamps thanks to compact design
  • Ideal for decorative and free-burning applications
  • Lower thermal output (compared with the standard reference product)
  • Five year guarantee
Areas of application
  • Decorative applications
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor applications only in suitable luminaires
Product features
  • LED alternative to low voltage halogen lamps
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075271746 Folding box
1		 28 mm x 28 mm x 67 mm 10.50 g 0.05 dm³
4058075271753 Shipping box
20		 150 mm x 122 mm x 77 mm 207.00 g 1.41 dm³
4058075271760 Shipping box
120		 256 mm x 160 mm x 248 mm 1377.00 g 10.16 dm³

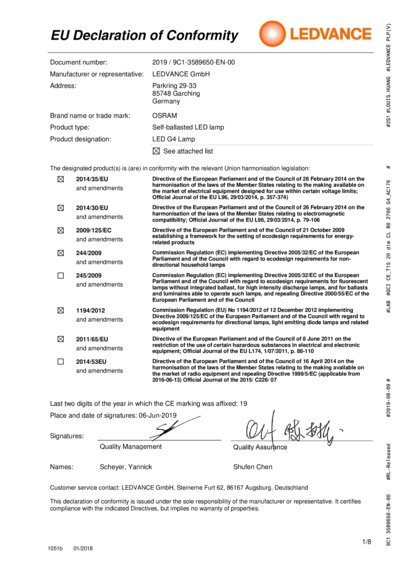

Declarations of conformity
EC Declaration of Conf ormity LED G4 Lamp PDF (244.42 KB)

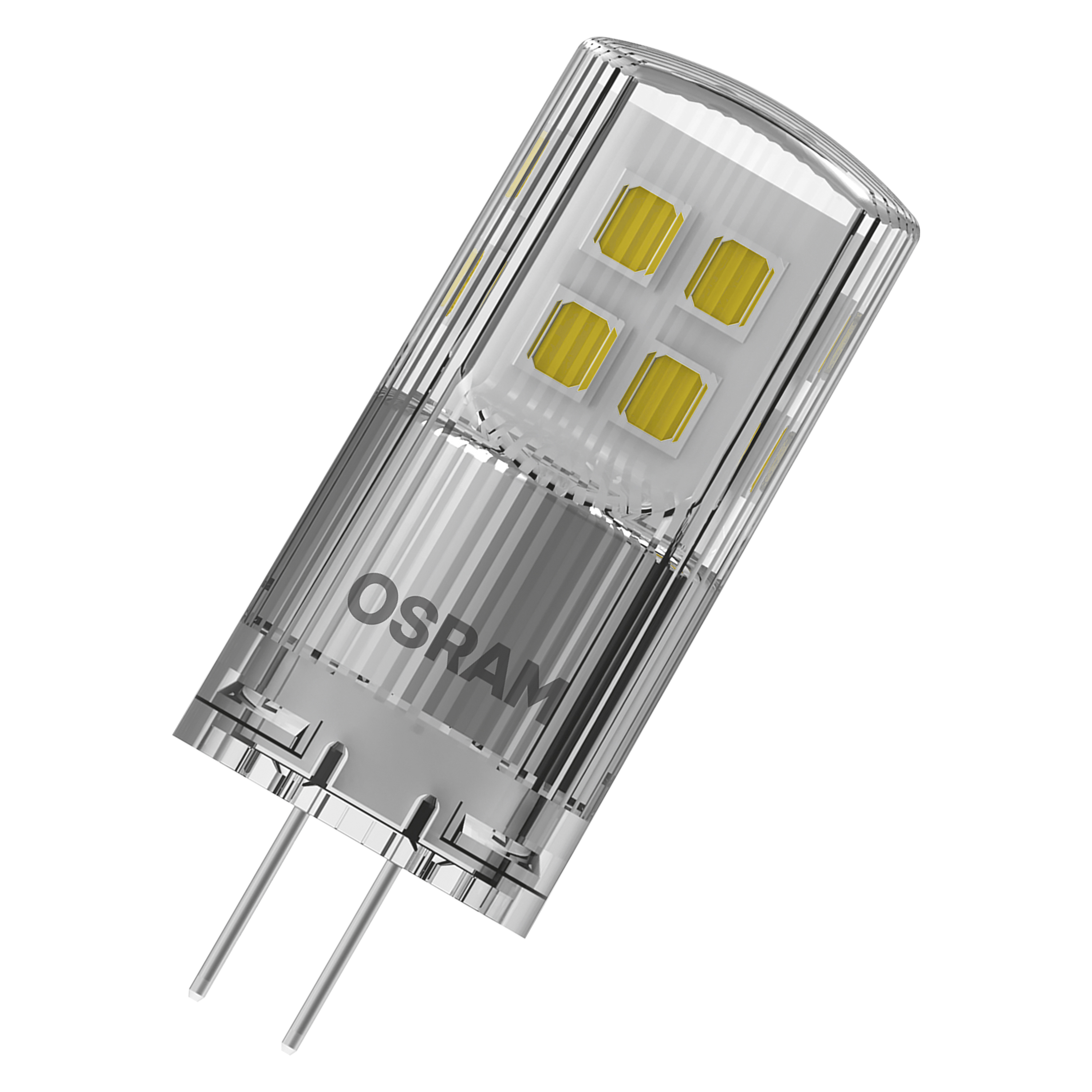

Product image: white background, diagonal with OSRAM logo
LED PIN 20 DIM G4 clea r JPG (1.51 MB)

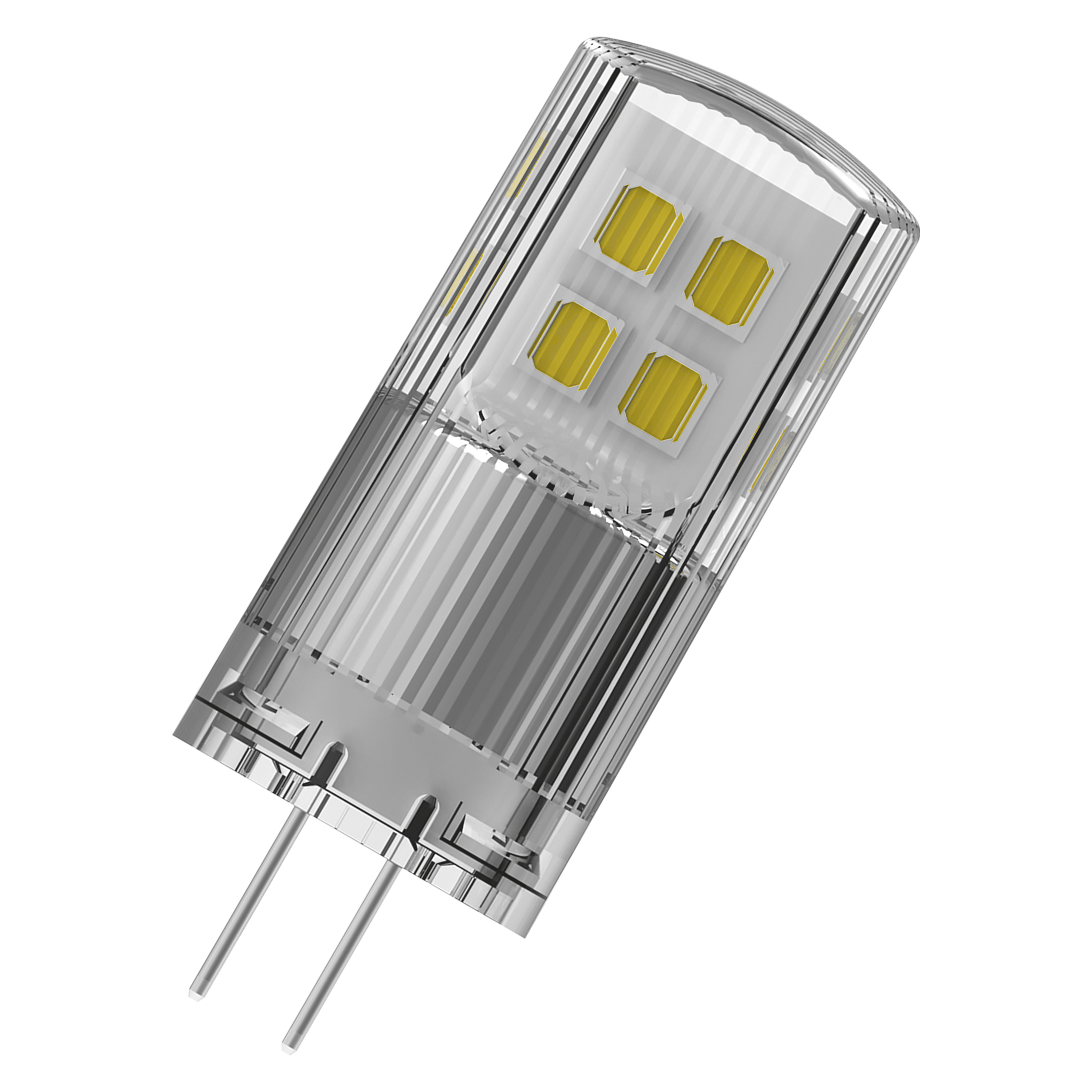

Product image: white background, diagonal
LED PIN 20 DIM G4 clea r JPG (1.5 MB)

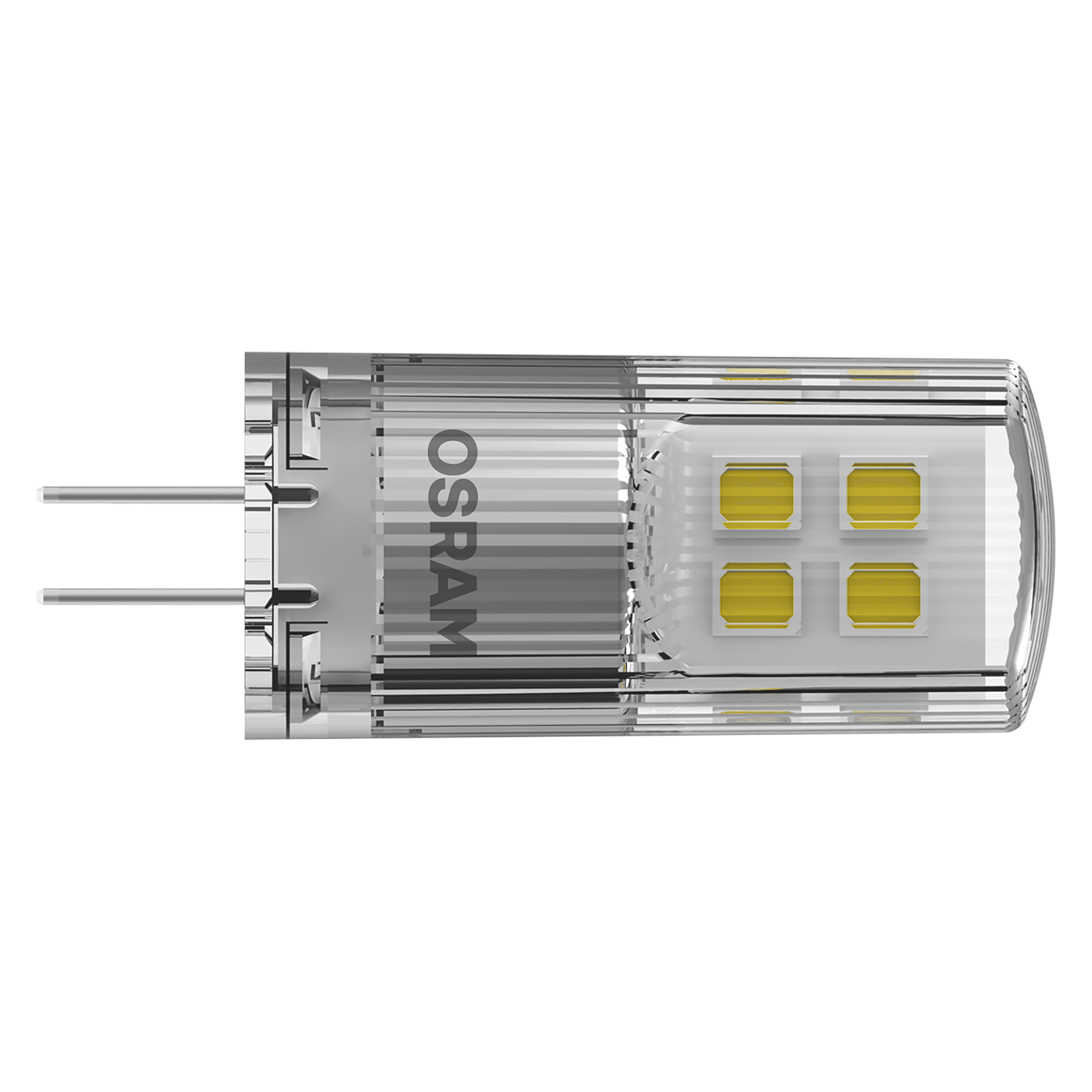

Product image: white background, horizontal, OSRAM logo
LED PIN 20 DIM G4 clea r JPG (1.23 MB)

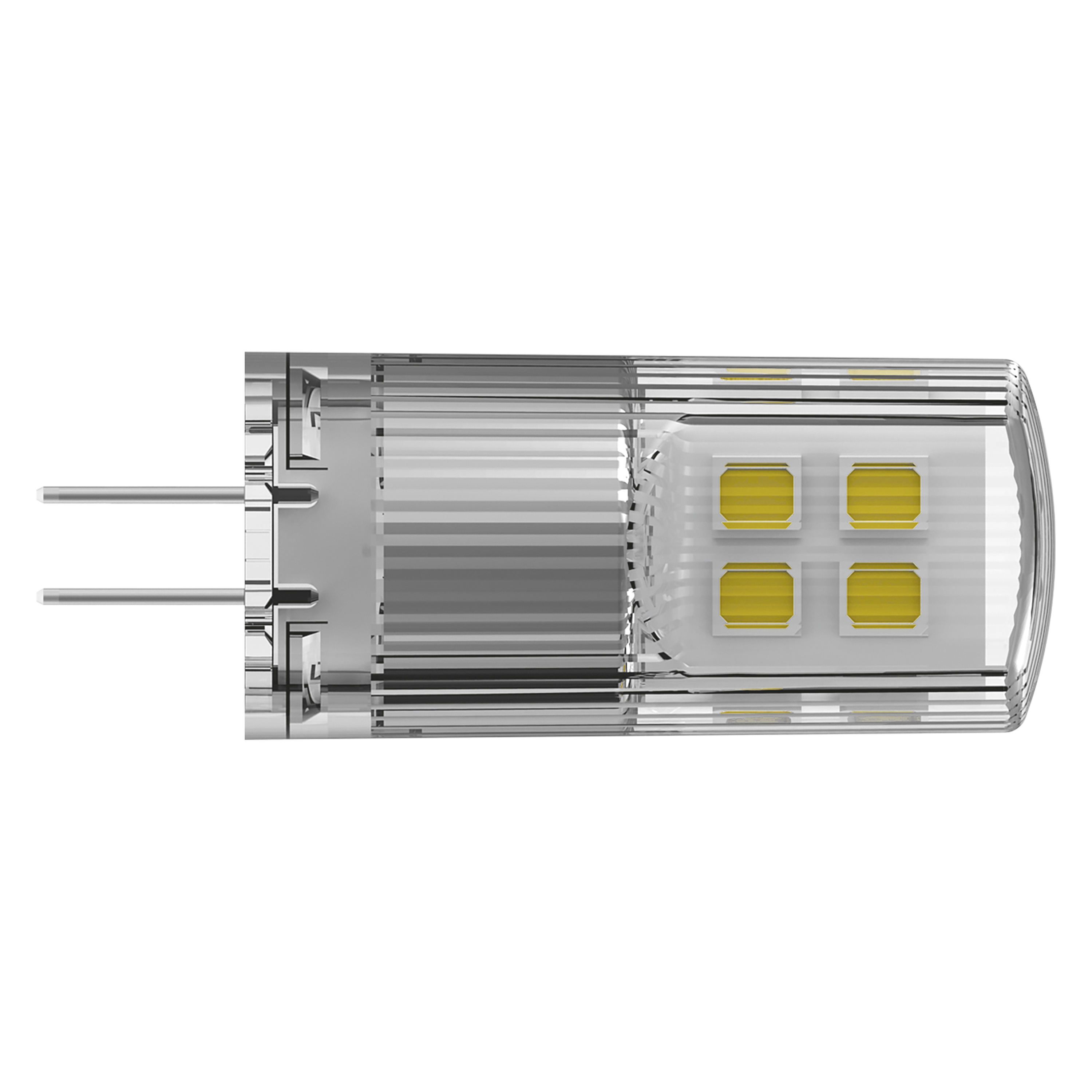

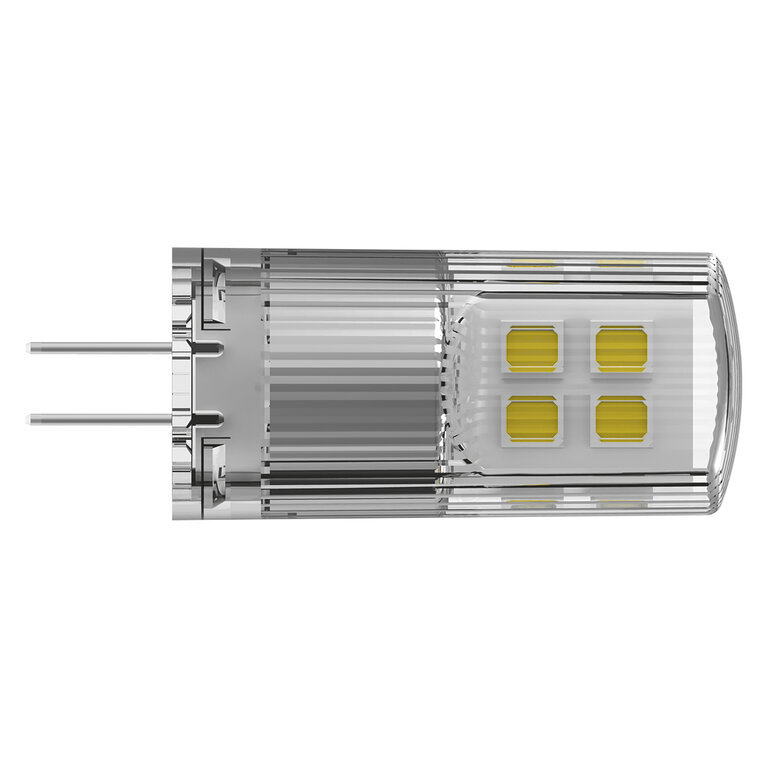

Product image: white background, horizontal
LED PIN 20 DIM G4 clea r JPG (778.85 KB)

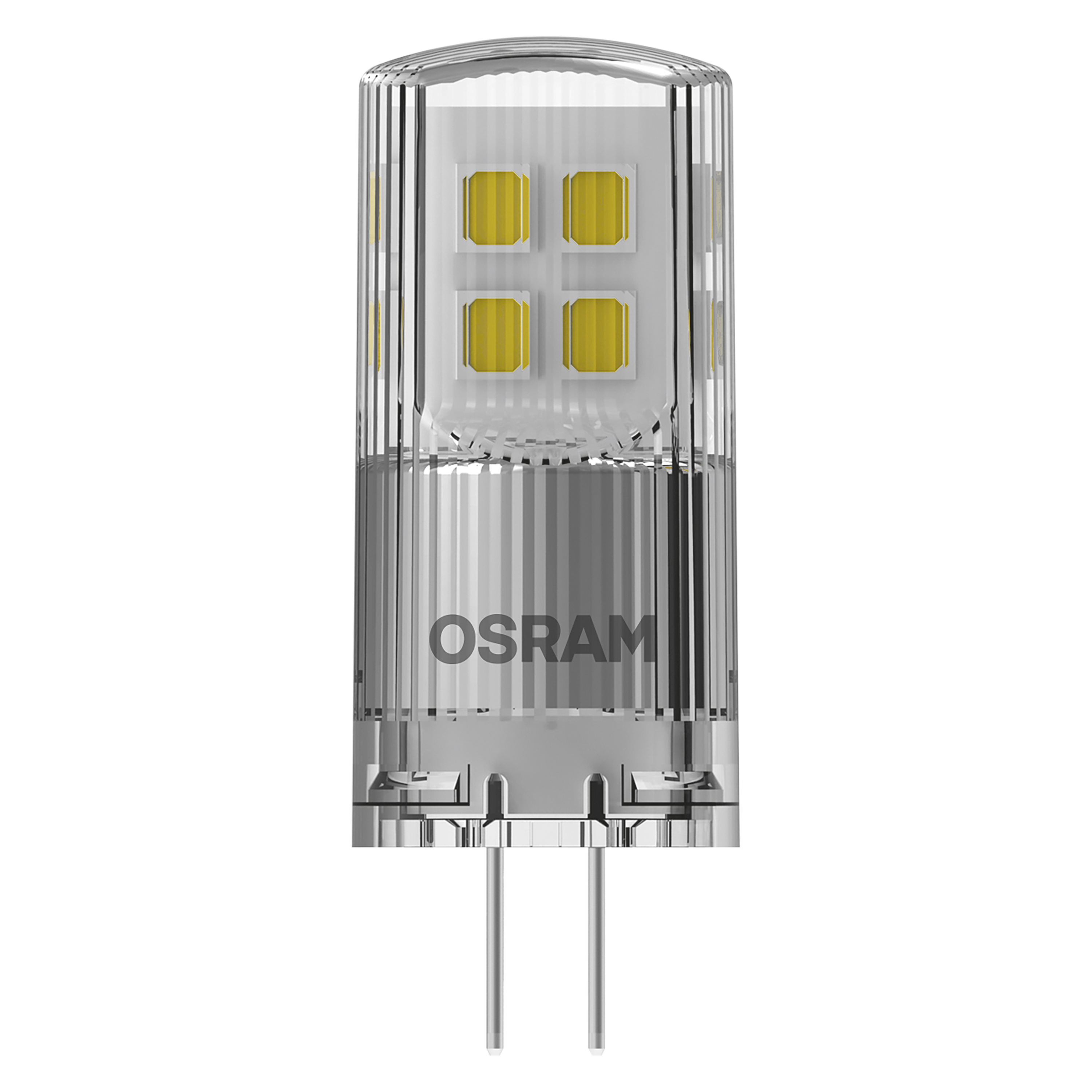

Product image: white background, upright, OSRAM logo
LED PIN 20 DIM G4 clea r JPG (1.24 MB)

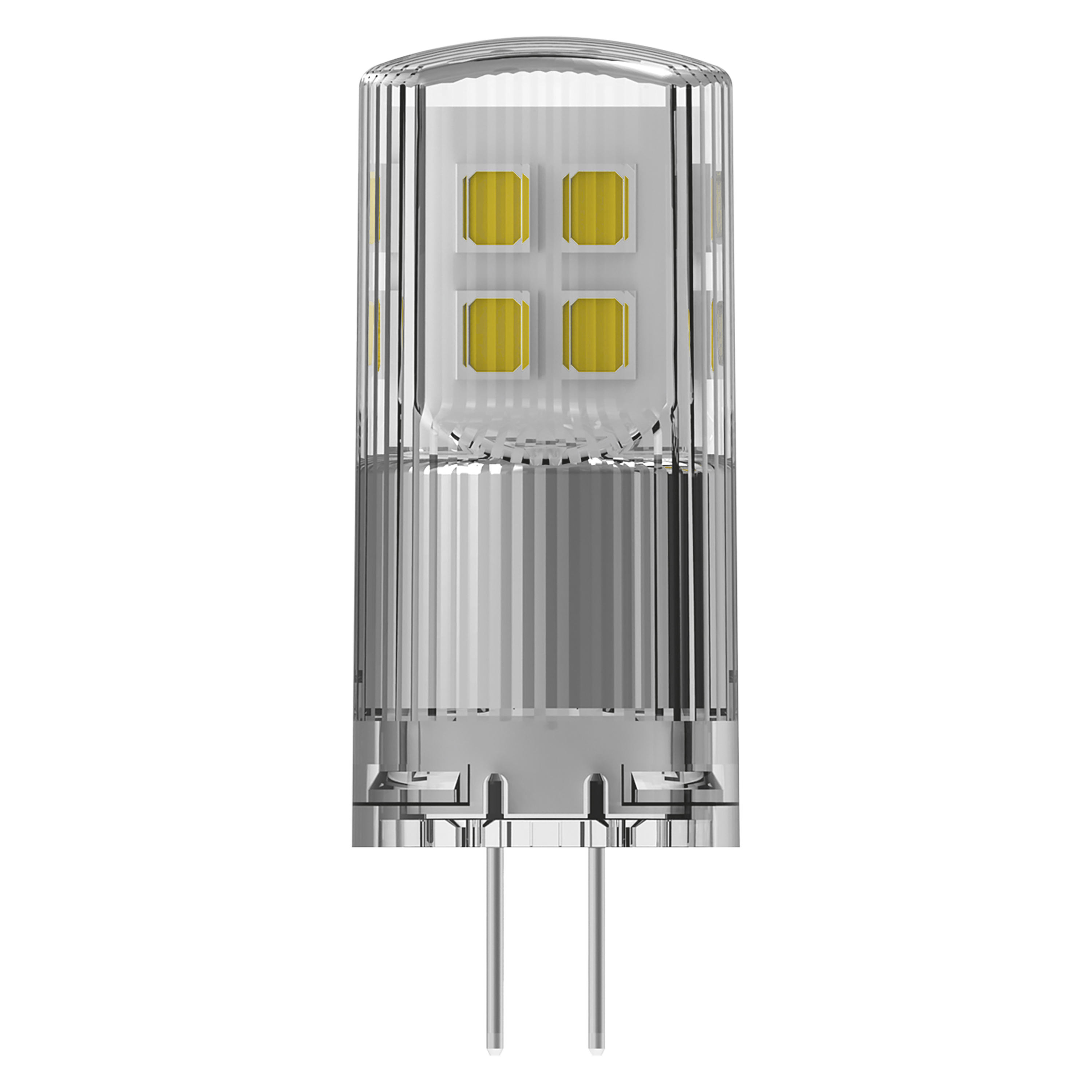

Product image: white background, upright
LED PIN 20 DIM G4 clea r JPG (1.23 MB)
Product line drawing with letters
LED PIN 20 DIM G4 clea r SVG (6.51 KB)
Product line drawing with numbers
LED PIN 20 DIM G4 clea r SVG (10.11 KB)
Product line drawing - technical
LED PIN 20 DIM G4 clea r SVG (3.61 KB)

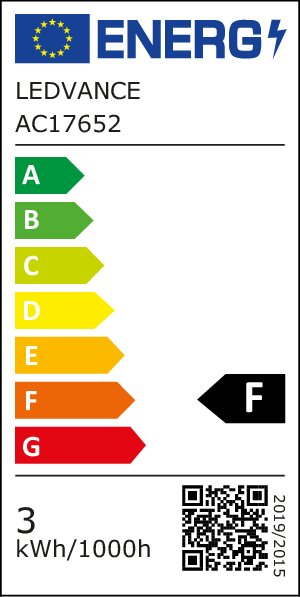

Energy label
EL-4058075271746-AC176 52 PDF (21.71 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
EAN SEG number STK number EFO number ELDAS number
4058075271746 8294982 4731340 3730013 941840760
