PARATHOM LED PIN 12V

Choose your product version

10 0.9 W/2700 K G4

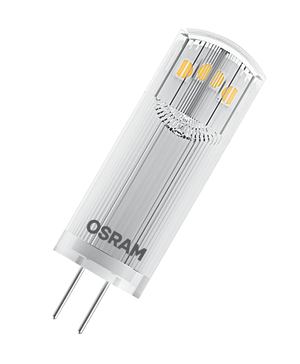

20 1.8 W/2700 K G4

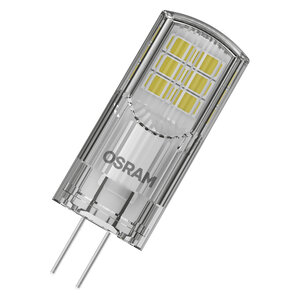

30 2.6 W/2700 K G4

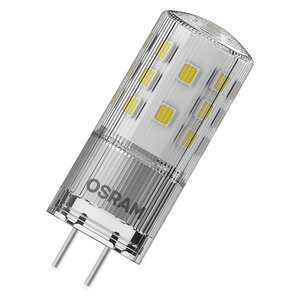

35 3.3 W/2700 K GY6.35

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P PIN 10 0.9 W/2700 K G4 G4 0.9 W 12 V 15000 h 100 lm 10 W 300 ° No
P PIN 20 1.8 W/2700 K G4 G4 1.8 W 12 V 15000 h 200 lm 20 W 300 ° No
P PIN 30 2.6 W/2700 K G4 G4 2.6 W 12 V 15000 h 300 lm 30 W 320 ° No
P PIN 35 3.3 W/2700 K GY6.35 GY6.35 3.3 W 12 V 15000 h 400 lm 35 W 320 ° No


P PIN 10 0.9 W/2700 K G4

Product benefits
  • Variable use at Direct Current and Alternating Current
  • Good all-around light emission
  • Ideal for decorative and free-burning applications
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 0.9 W
Construction wattage 0.90 W
Nominal voltage 12 V
Operating mode 12V AC/DC
Claimed equiv. conventional lamp power 10 W
Nominal current 130 mA
Type of current AC/DC
Inrush current 12.3 A
Max. lamp number on MCB B10 A 48
Max. lamp number on MCB B16 A 61
Total harmonic distortion < 120 %
Power factor λ 0.50

Photometrical data

Luminous flux 100 lm
Nominal useful luminous flux 90° 100 lm
Luminous efficacy 111 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 33.00 mm
Diameter 12 mm
Maximum diameter 12 mm
Product weight 2.6 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 80 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G4
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A++ 1)
Energy consumption 1.00 kWh/1000h
Type of protection IP20
Standards CE, CB, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

ILCOS DRT/C-0,9/827-220-240-G4-12/33
Order reference LEDPPIN10 CL 0,

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G4
Length 33.00 mm
Height 12 mm
Width 12 mm
Displacement factor 0.5
EPREL ID 1403247
Model number AC24746

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Variable use at Direct Current and Alternating Current
  • Good all-around light emission
  • Ideal for decorative and free-burning applications
  • Long lifetime of up to 15,000 h
  • Four year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Decorative applications
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Compatible with many common conventional and electronic control gears (see also compatibility list)
  • LED alternative to low voltage halogen lamps
  • Base: G4, GY6.35
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075811959 Folding box
1		 28 mm x 28 mm x 67 mm 7.40 g 0.05 dm³
4058075811966 Shipping box
20		 150 mm x 122 mm x 77 mm 206.00 g 1.41 dm³
4058075042438 Shipping box
120		 256 mm x 160 mm x 248 mm 1371.00 g 10.16 dm³

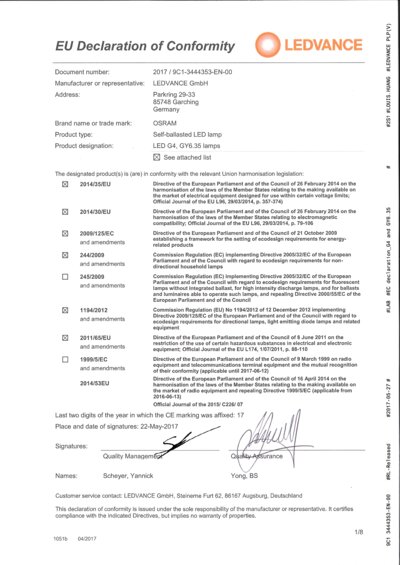

Declarations of conformity
EC declaration G4 10, G4 20, G4 30, GY6.35 3 0 PDF (1.62 MB)

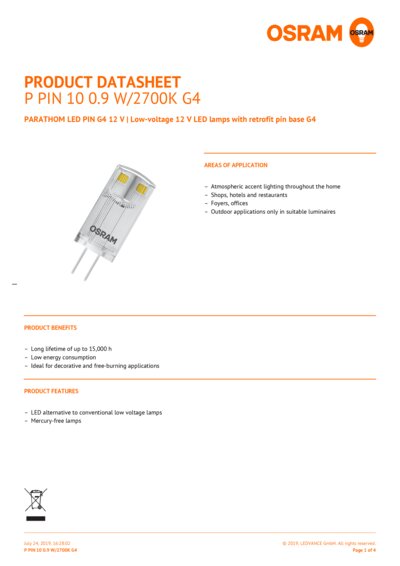

PRODUCT DATASHEET
P PIN 10 0.9 W 2700K G 4 DATASHEET PDF (230.18 KB)

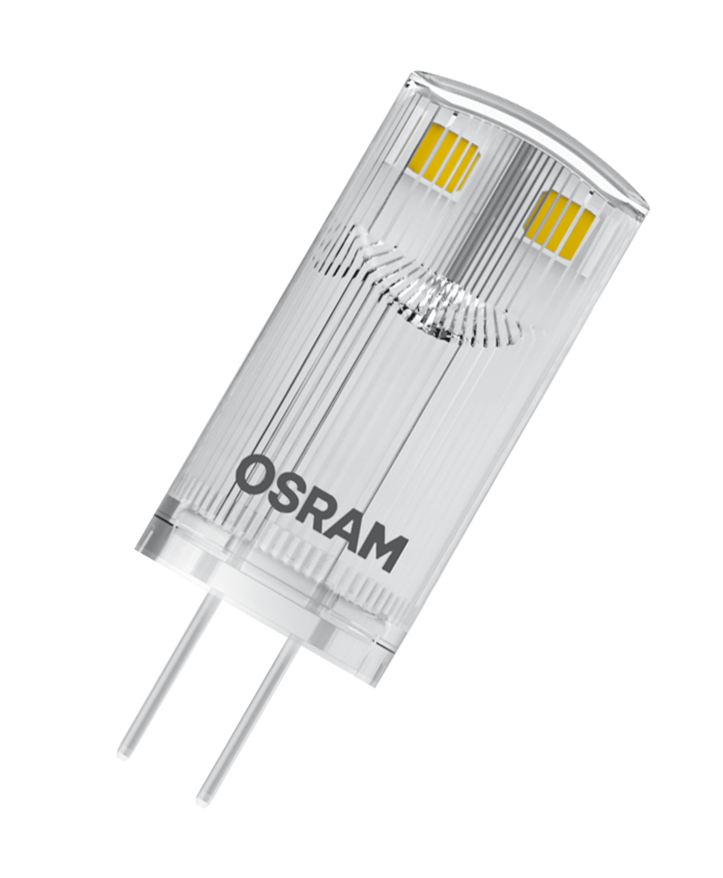

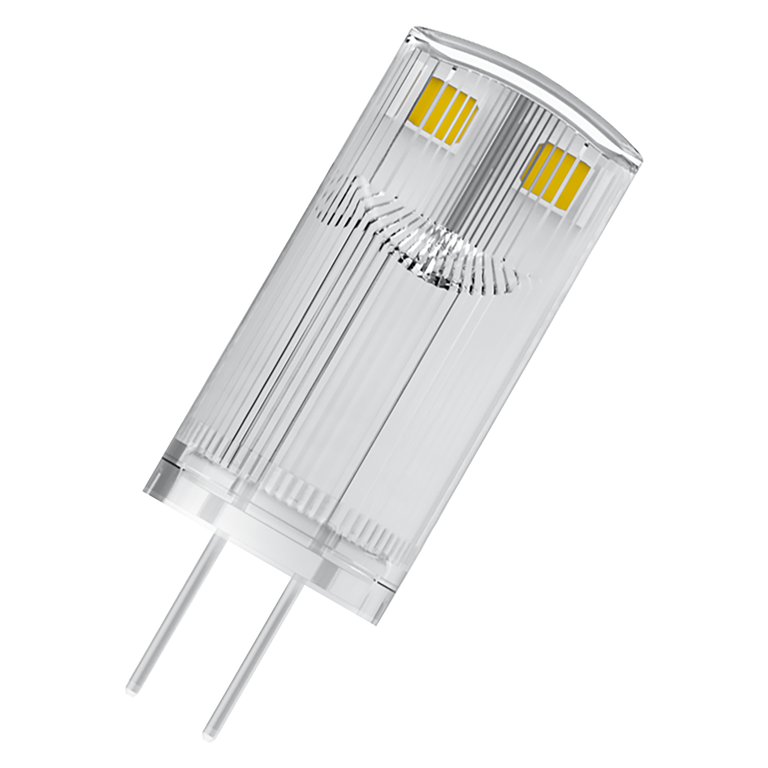

Product image: white background, diagonal with OSRAM logo
LED PIN 10 G4 clear TIF (1.92 MB)
Product image: white background, diagonal
LED PIN 10 G4 clear TIF (1.21 MB)

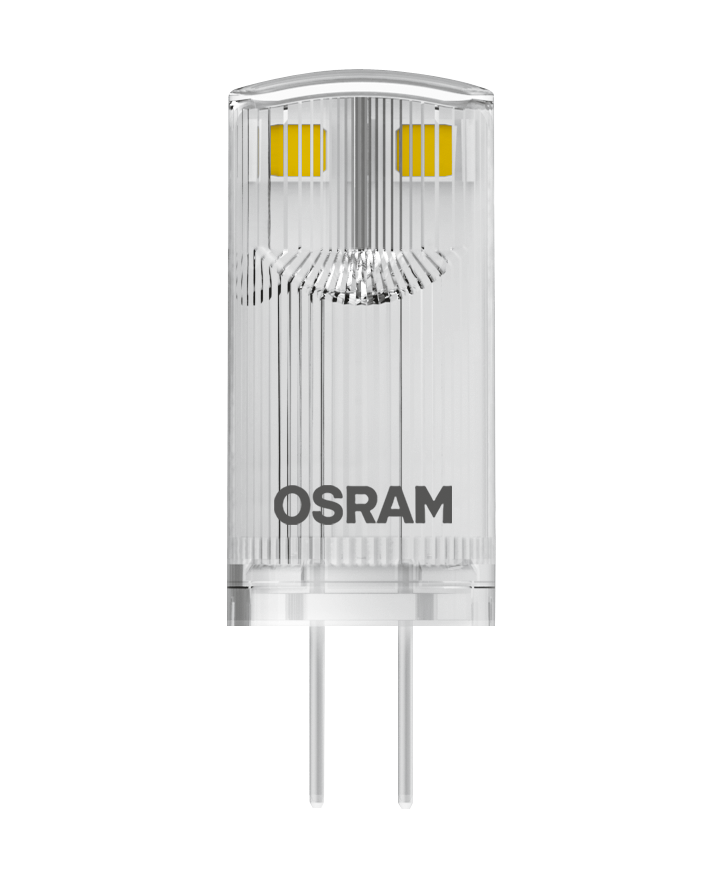

Product image: white background, upright, OSRAM logo
LED PIN 10 G4 clear TIF (1.92 MB)

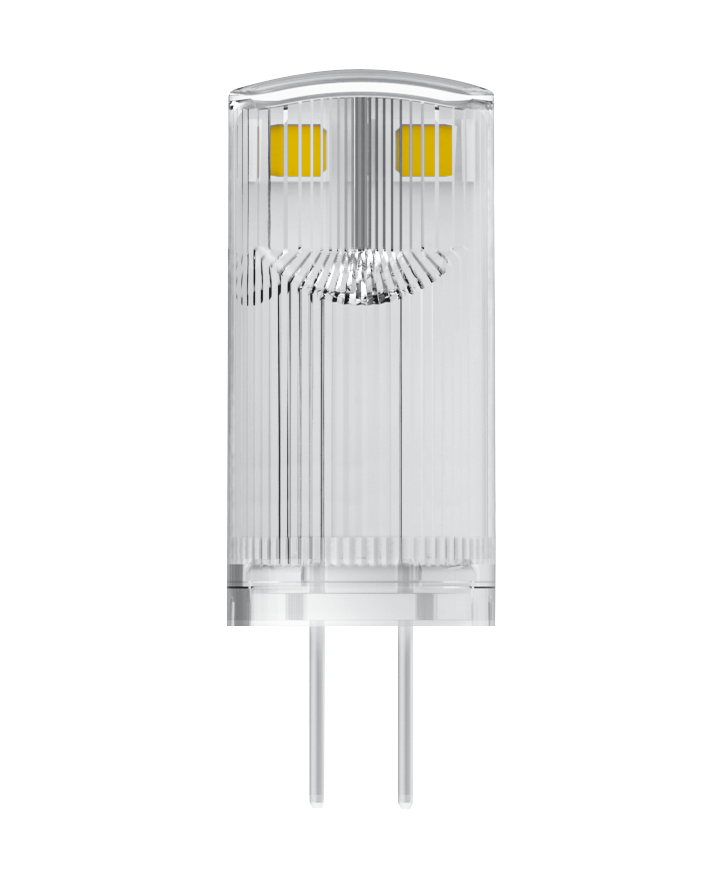

Product image: white background, upright
LED PIN 10 G4 clear TIF (1.92 MB)

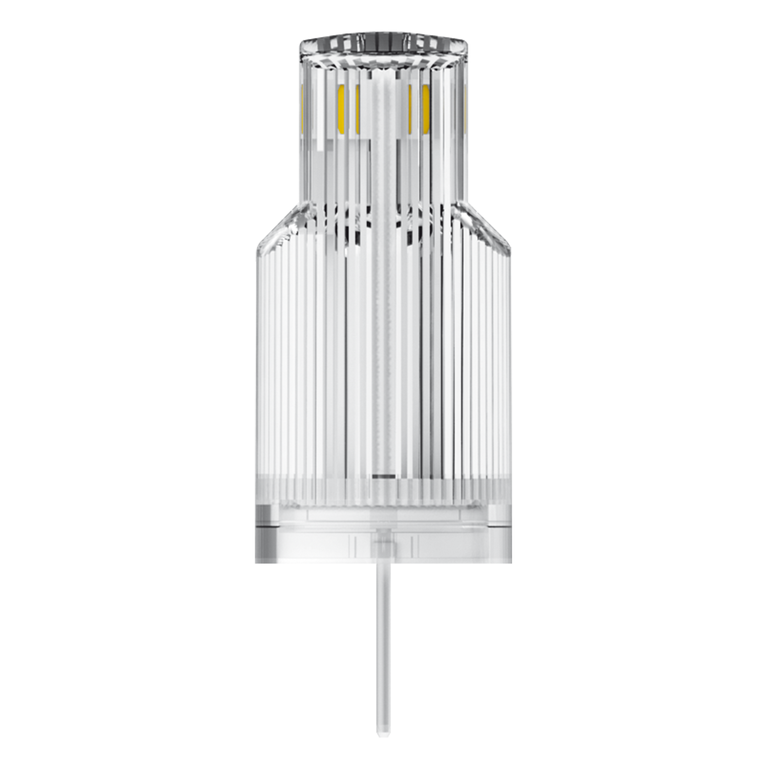

Product image: white background, upright, alternative image
LED PIN 10 G4 clear TIF (26.18 MB)
Product line drawing with letters
LED PIN 10 G4 clear SVG (7.4 KB)

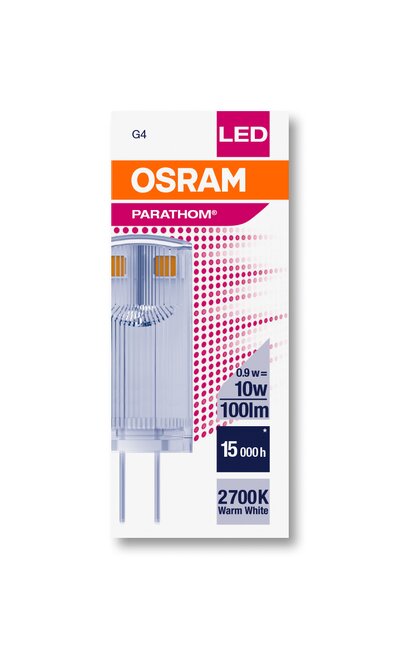

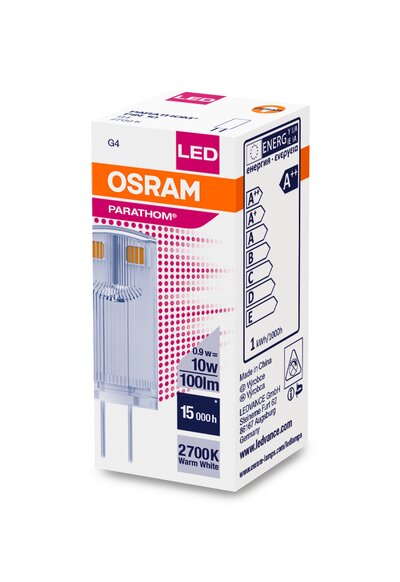

Packaging image, frontal
PARA PIN 10 0.9W 827 C L G4 MiCh Front TIF (2.54 MB)
Packaging image, spacial
PARA PIN 10 0.9W 827 C L G4 MiCh Side TIF (3.45 MB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
EAN SEG number STK number EFO number ELDAS number
4058075811959 8293109 4730959 3760187 941159410
