High-voltage krypton lamps, road traffic

Choose your product version

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux
SIG 1546 E27 100 W 230…240 V 8000 h 830 lm

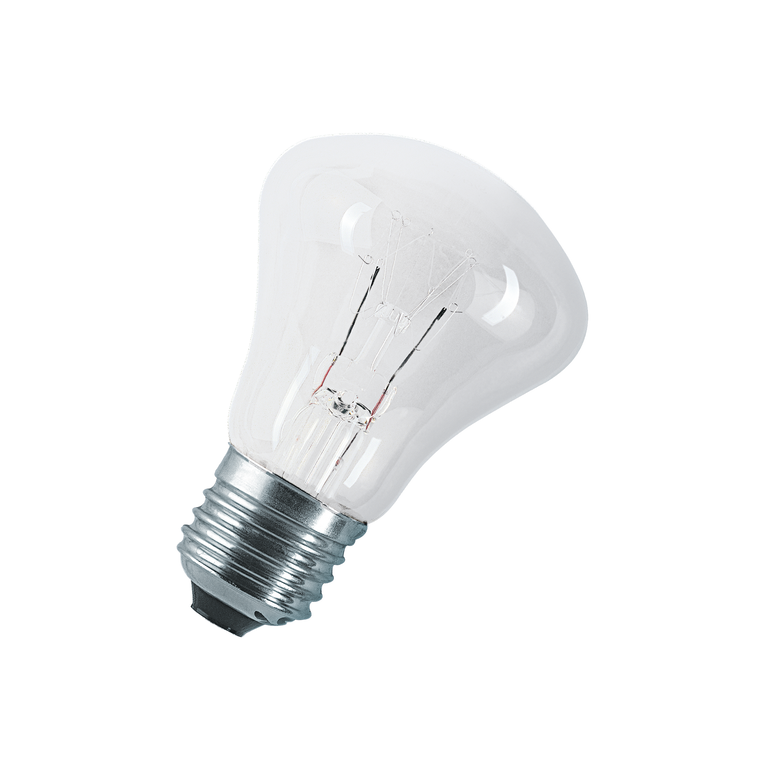

SIG 1546

Product benefits
  • Excellent optical efficiency thanks to a small cradle diameter
  • High luminous efficacy from krypton as filler gas
  • Max. premature failure rate: 2 % up to 3,000 h (related to lamp failures only)
  • High resistance to shock and vibration thanks to nine supports for the filament

PRODUCT DETAILS

Electrical data

Nominal wattage 100 W
Construction wattage 100.00 W
Nominal voltage 230…240 V
Power factor λ 1.00

Photometrical data

Luminous flux 830 lm
Luminous efficacy 8 lm/W
Color temperature 2700 K
Color rendering index Ra 100
Light color 1027

Light technical data

Starting time 0 s

Dimensions & Weight

Overall length 101.00 mm
Light center length (LCL) 79,0 mm 1)
Diameter 62 mm
Maximum diameter 61 mm
Product weight 35.00 g

1) Distance from the coil to the top of base

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Burning position s105

Certificates & Standards

Energy efficiency class E
Energy consumption 100.00 kWh/1000h

Country-specific categorizations

Order reference 1546

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 101.00 mm
Height 62 mm
Width 62 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Excellent optical efficiency thanks to a small cradle diameter
  • High luminous efficacy from krypton as filler gas
  • Max. premature failure rate: 2 % up to 3,000 h (related to lamp failures only)
  • High resistance to shock and vibration thanks to nine supports for the filament
Areas of application
  • Road traffic signalling systems
Product features
  • Lamp base resistant to corrosion
  • Long average lamp lifetime: 8,000 h
  • Maintenance intervals up to four months possible (depending on installation)
Legal advice
  • Correspond to DIN 49842 part 1 and 3
  • Meet luminous intensity requirements of DIN 67527-1/EN 12368 (depending on installation)
Safety advice
  • Use only in signal equipment/luminaires that are specially designed for the purpose. Protect the lamps against moisture during operation and installation.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300222608 Folding box
1
104 mm x 58 mm x 58 mm 42.90 g 0.35 dm³
4050300222615 Shipping box
100
596 mm x 222 mm x 301 mm 4698.00 g 39.83 dm³
EAN STK number
4050300222608 4733755
