Choose your product version
| Nominal wattage | 32.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 140.000 mA |
| Inrush current | 8.95 A |
| Inrush current time Th50 | 350 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 5 |
| Power factor λ | 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | External LED driver |
| Luminous flux | 1950 lm |
| Total luminous flux of contained light sources | 3350 lm |
| Luminous efficacy | 222 lm/W |
| Color temperature | 2700…6500 K |
| Reference control setting of contained light source (Kelvin) | 2700 K 1) |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
1) Performing a reset will restore the default values set by the manufacturer
| Diameter | 485.00 mm |
| Height | 80.00 mm |
| Product weight | 2900.00 g |
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 15000 |
| Type of emergency operation test | None |
| Integrated test switch | No |
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

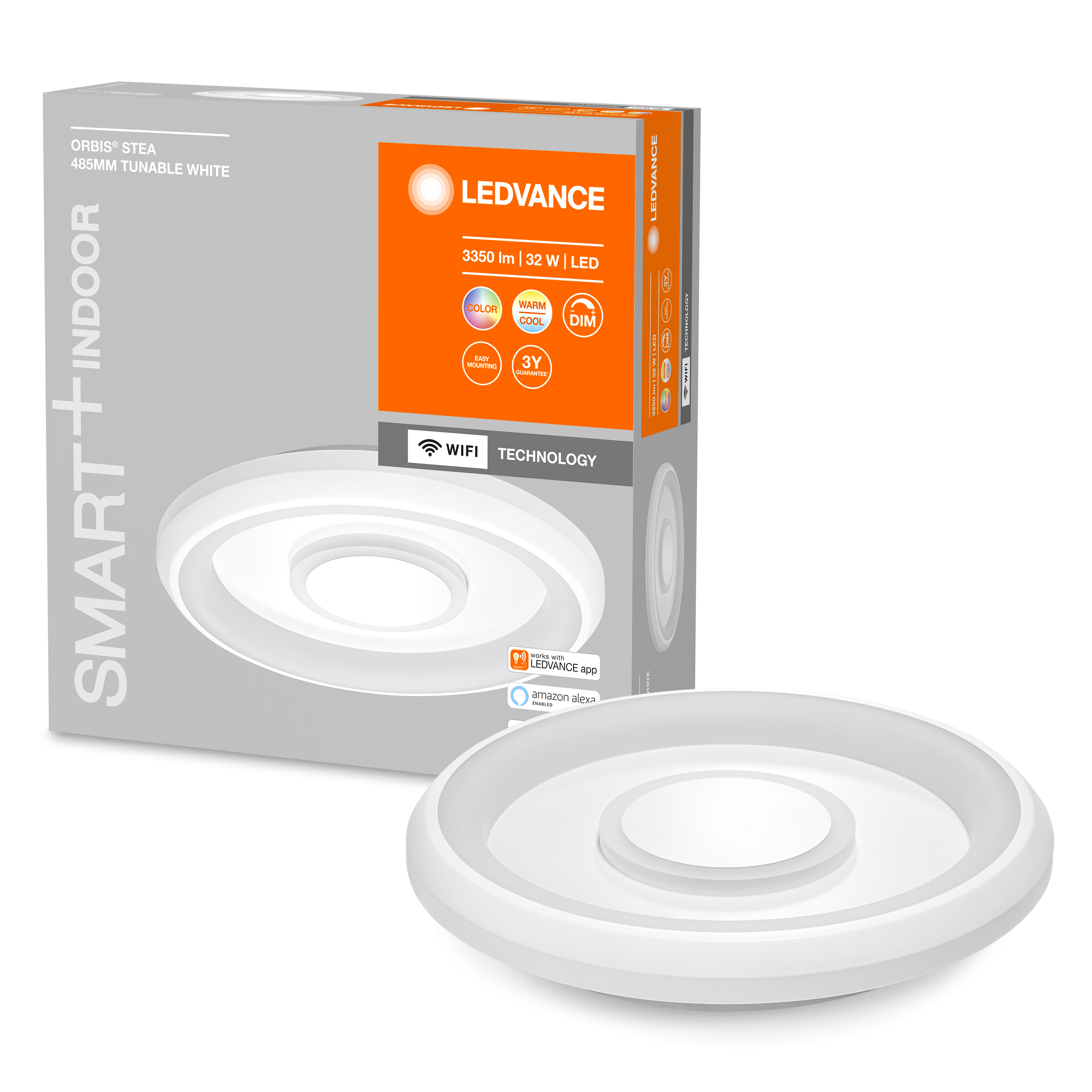

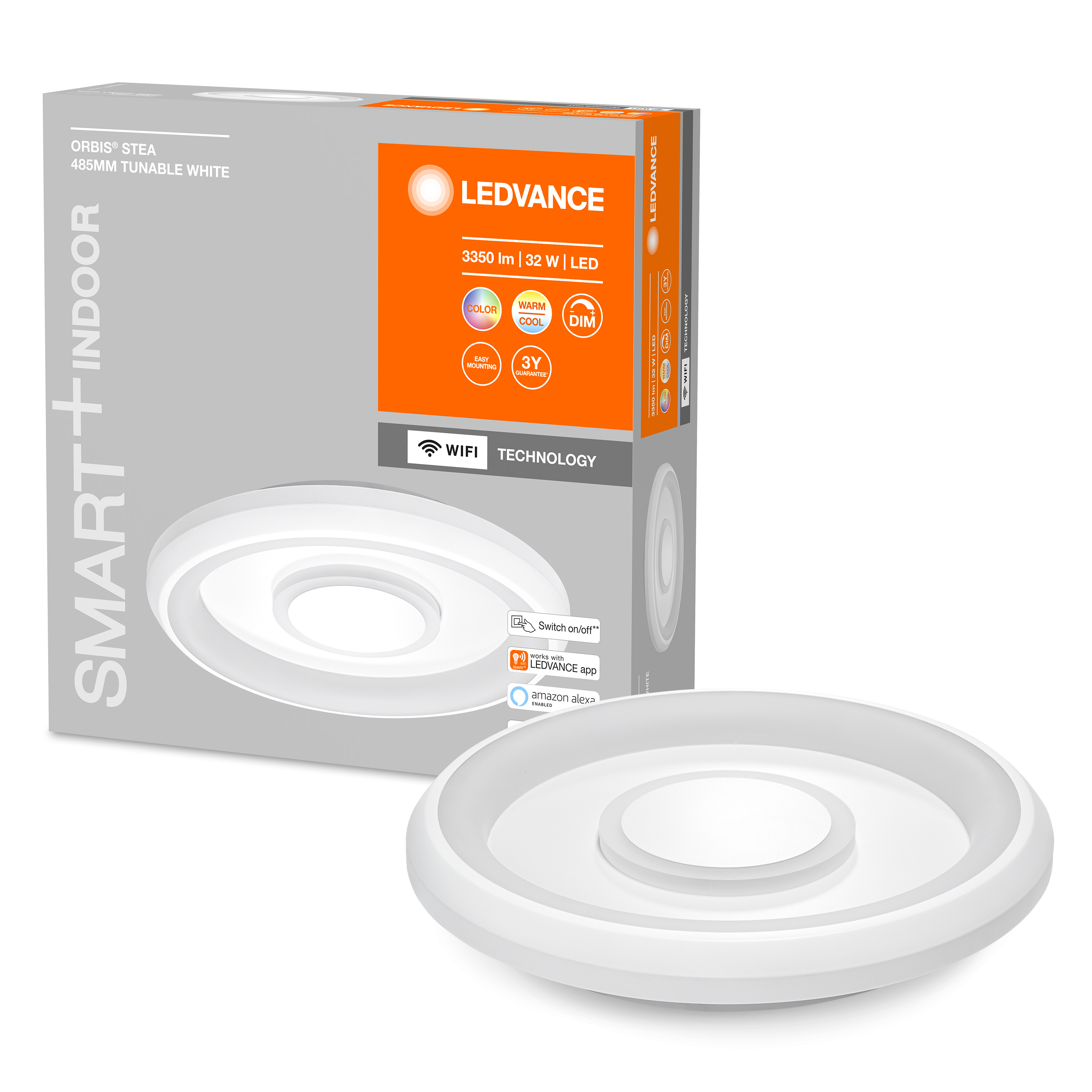

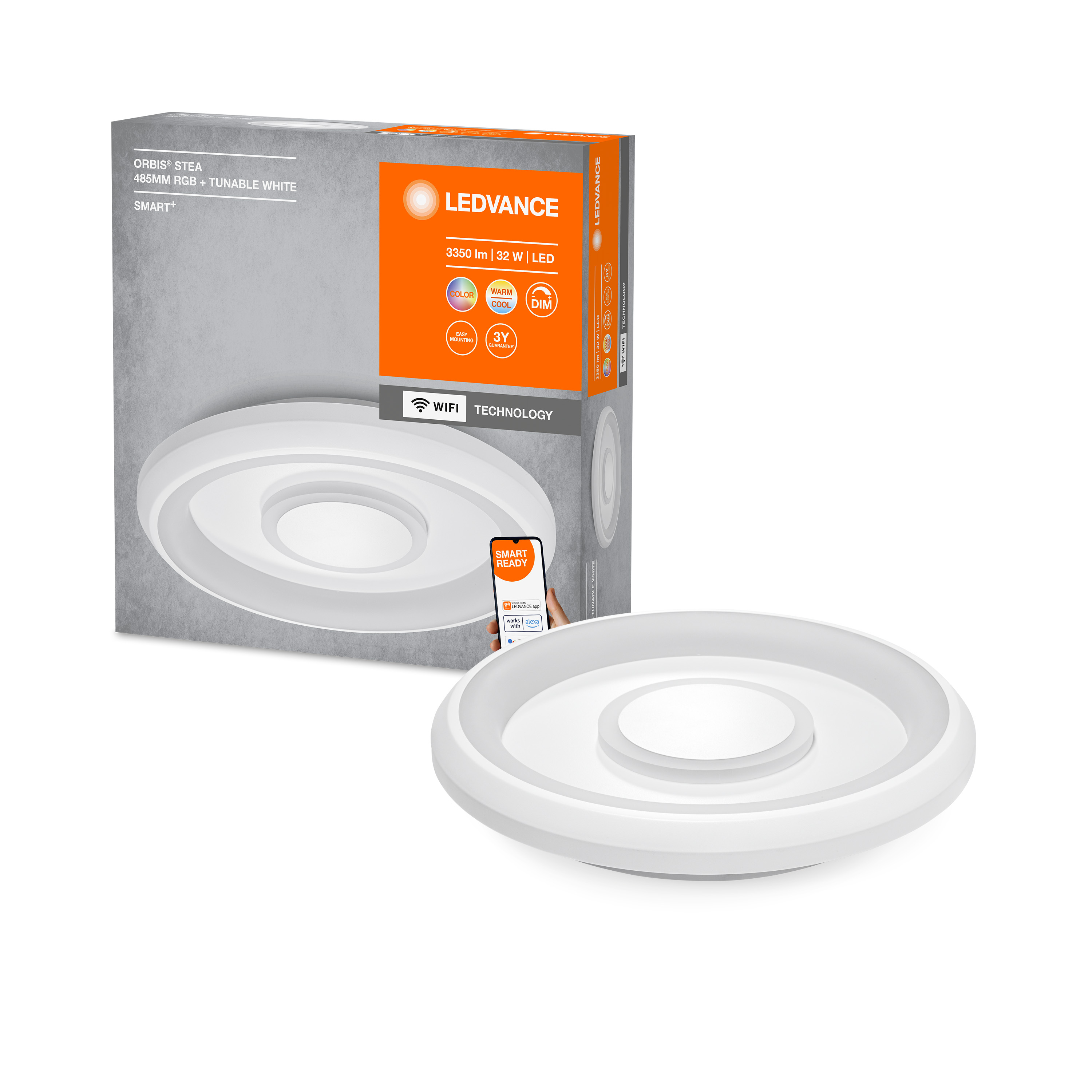

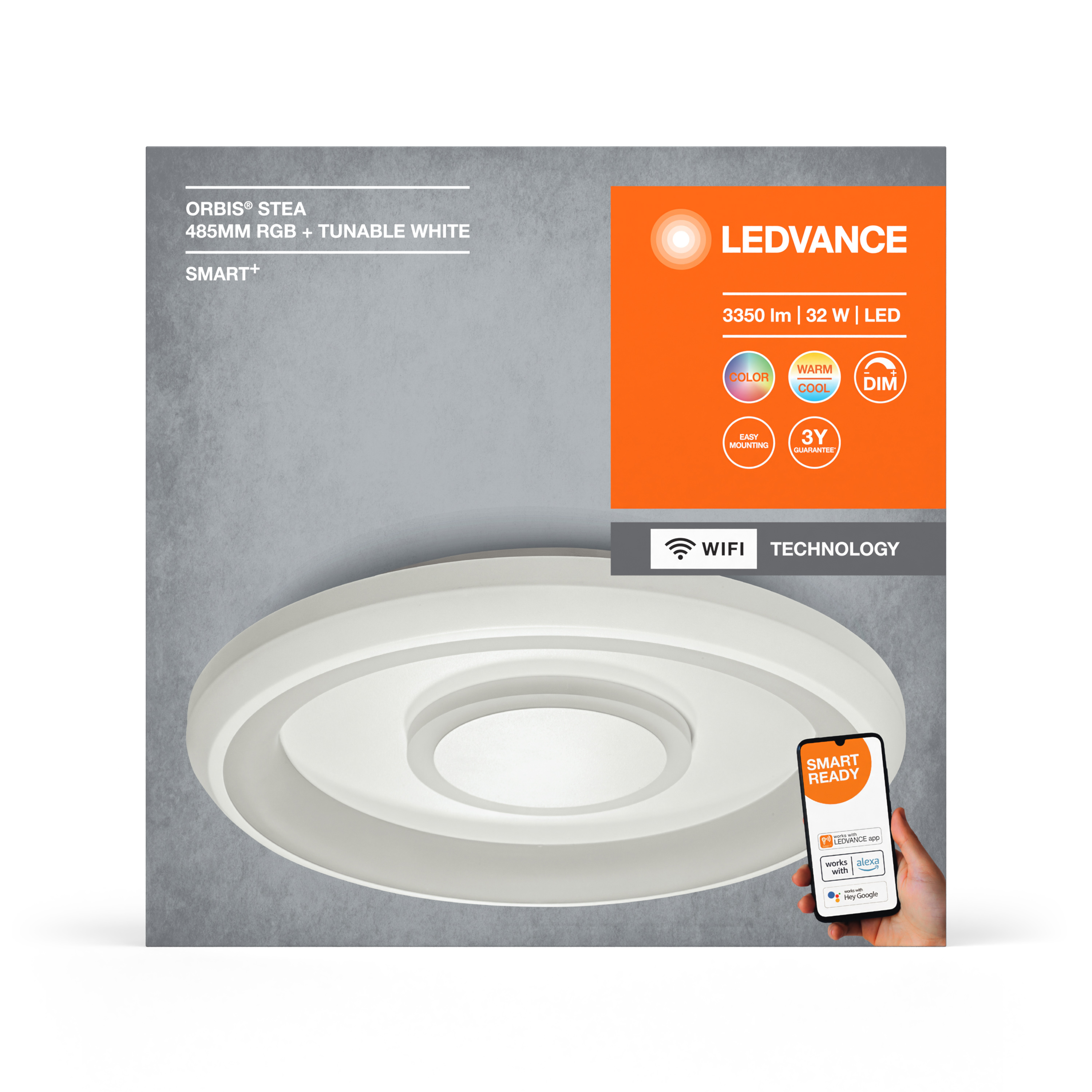

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075573413 | Folding box 1 |
525 mm x 120 mm x 525 mm | 3300.00 g | 33.08 dm³ |
| 4058075573420 | Shipping box 4 |
545 mm x 510 mm x 550 mm | 14200.00 g | 152.87 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075573413 | 941390310 |
