SMART+ FLEX MULTICOLOR

Choose your product version

EXT 1M RGB + TW

OVERVIEW

Product description
SMART+ Wifi Flex EXT 1M RGB + TW


SMART+ Wifi Flex EXT 1M RGB + TW

Product benefits
  • Easy and quick installation
  • Uses multi color and cold or warm white light for most flexible lighting scenes
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 3.60 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ > 0.50
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 320 lm
Total luminous flux of contained light sources 360 lm
Luminous efficacy 89 lm/W
Color temperature 2700…6500 K
Light color (designation) RGBTW
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 110 °

Dimensions & Weight

Length 1000.00 mm
Height 2.60 mm
Width 10.00 mm
Product weight 45.00 g

Materials & Colors

Product color Transparent
Body material Silicone
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Mounting location All surfaces
Application environment Indoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000

Certificates & Standards

Standards CE, EAC
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick installation
  • Uses multi color and cold or warm white light for most flexible lighting scenes
Areas of application
  • Living areas
  • Indirect lighting
Product features
  • Dimmable
  • Flexible, bendable LED strips
  • RGB color control, approx. 16 million color options adjustable
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Voice control works with Hey Google or Alexa
  • Product can be used as an extension for 2M Flex
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Complete mounting and connecting accessories included
Safety advice
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075523838 Folding box
1		 61 mm x 190 mm x 154 mm 183.00 g 1.78 dm³
4058075523845 Shipping box
4		 327 mm x 202 mm x 138 mm 882.00 g 9.12 dm³
User instruction / safety instructions

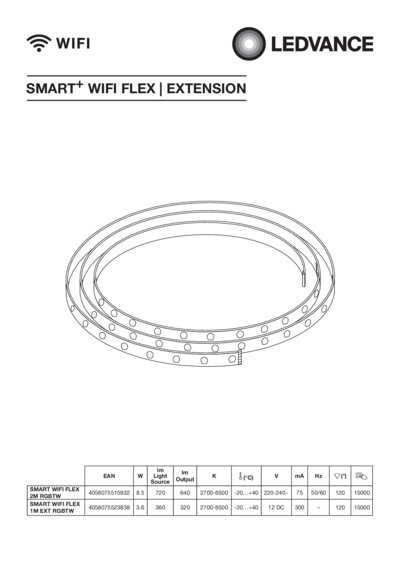

SMART+ WIFI FLEX EXTEN SION PDF (1.08 MB)

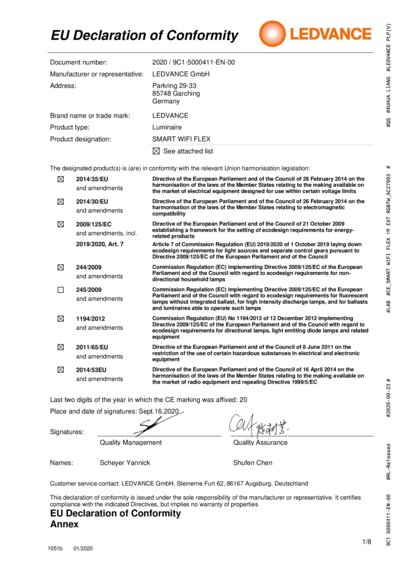

Declarations of conformity
SMART WIFI FLEX PDF (195.38 KB)

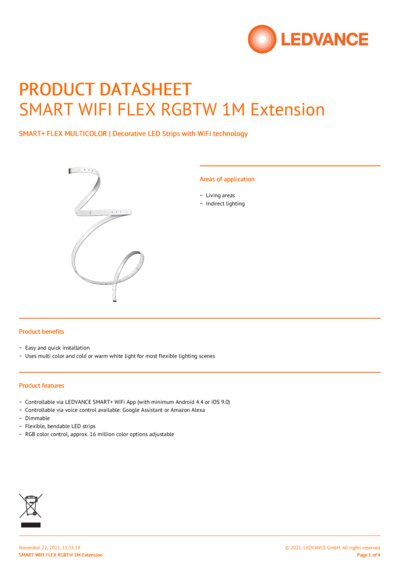

Product datasheet -> old version of product
4058075523838 SMART WI FI FLEX RGBTW 1M Exten sion en old PDF (353.33 KB)

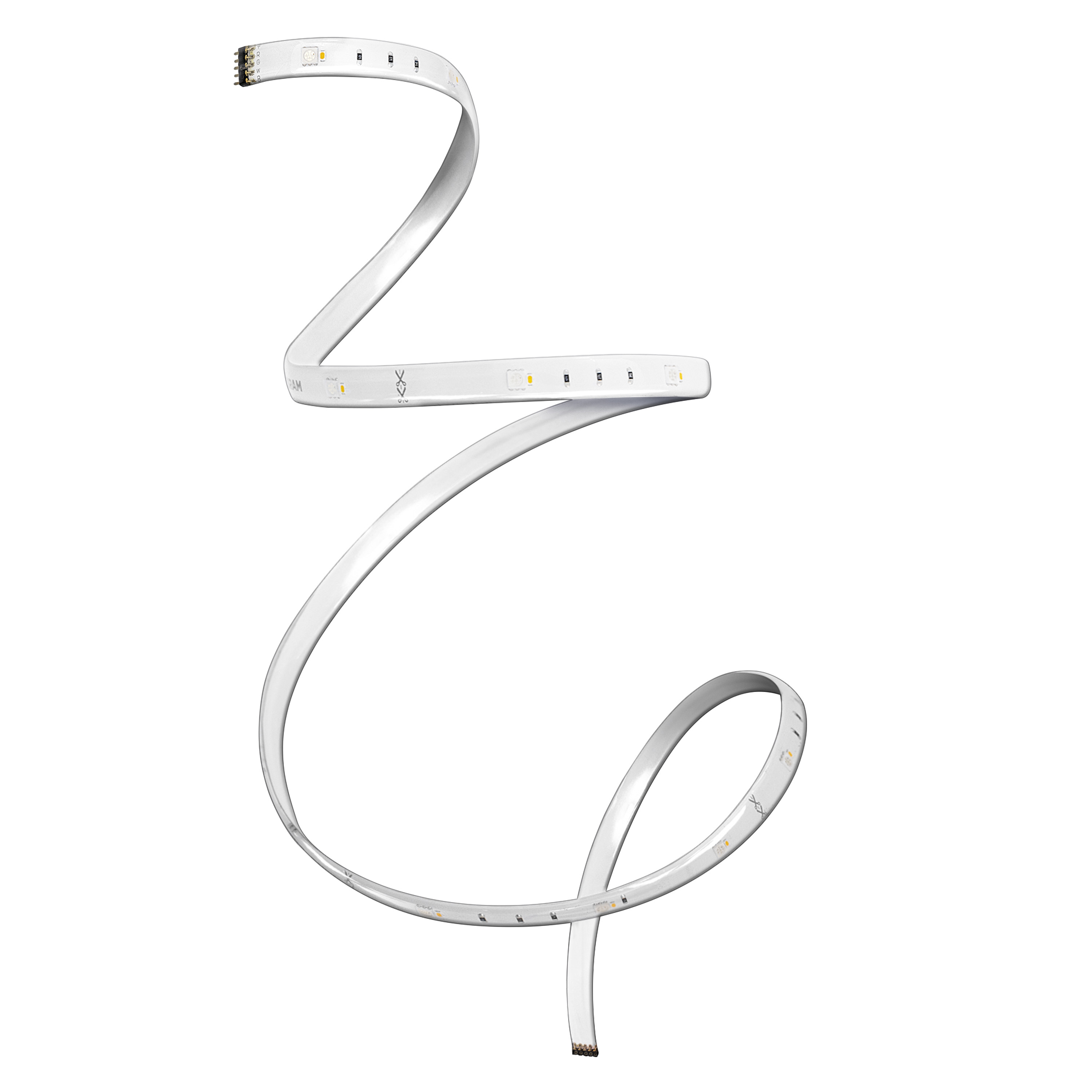

Product image: white background, upright
SMART WIFI FLEX 1M EXT RGBTW       JPG (419.25 KB)

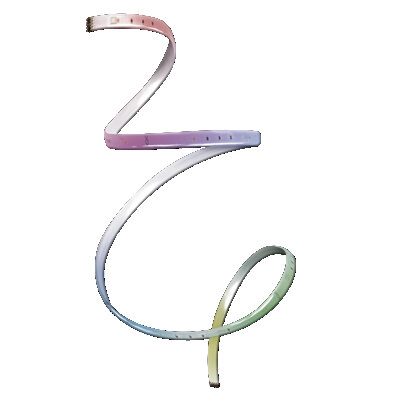

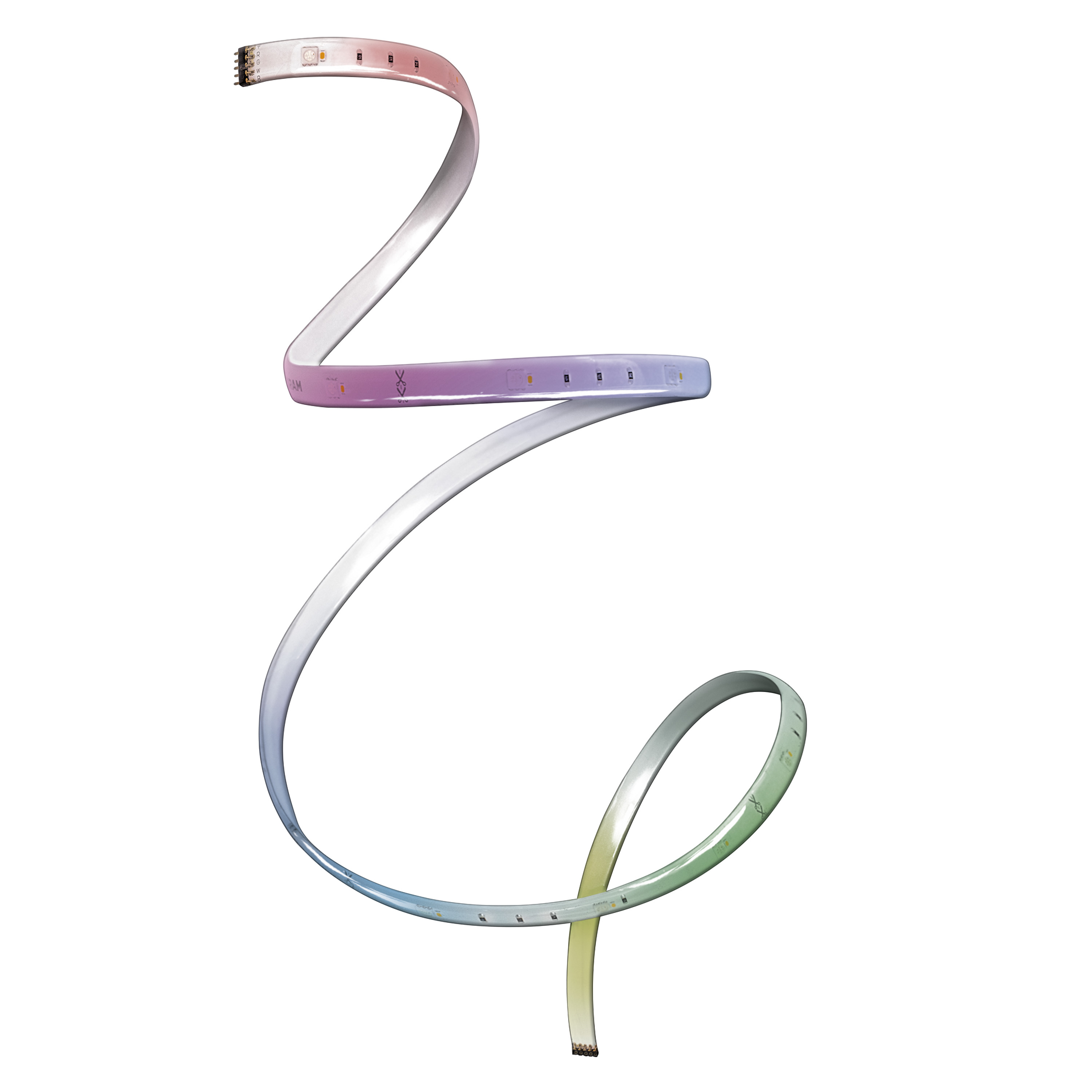

Product image: white background, upright, switched on
SMART WIFI FLEX 1M EXT RGBTW       JPG (442.06 KB)
Product line drawing with letters
SMART WIFI FLEX 1M EXT RGBTW       SVG (20.46 KB)
Product line drawing with numbers
SMART WIFI FLEX 1M EXT RGBTW       SVG (20.59 KB)
Product line drawing, front, no dimensions
SMART WIFI FLEX 1M EXT RGBTW       SVG (16.1 KB)

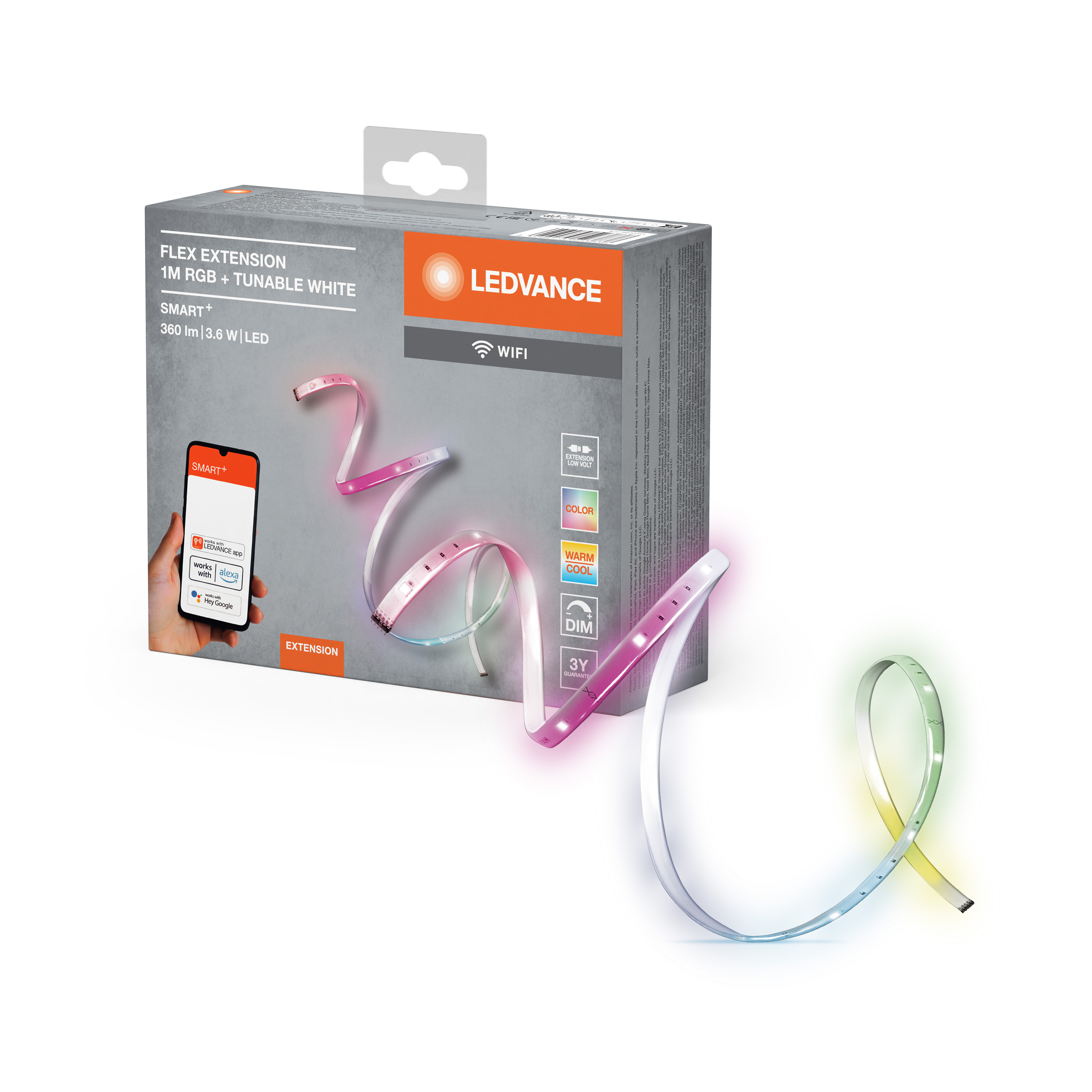

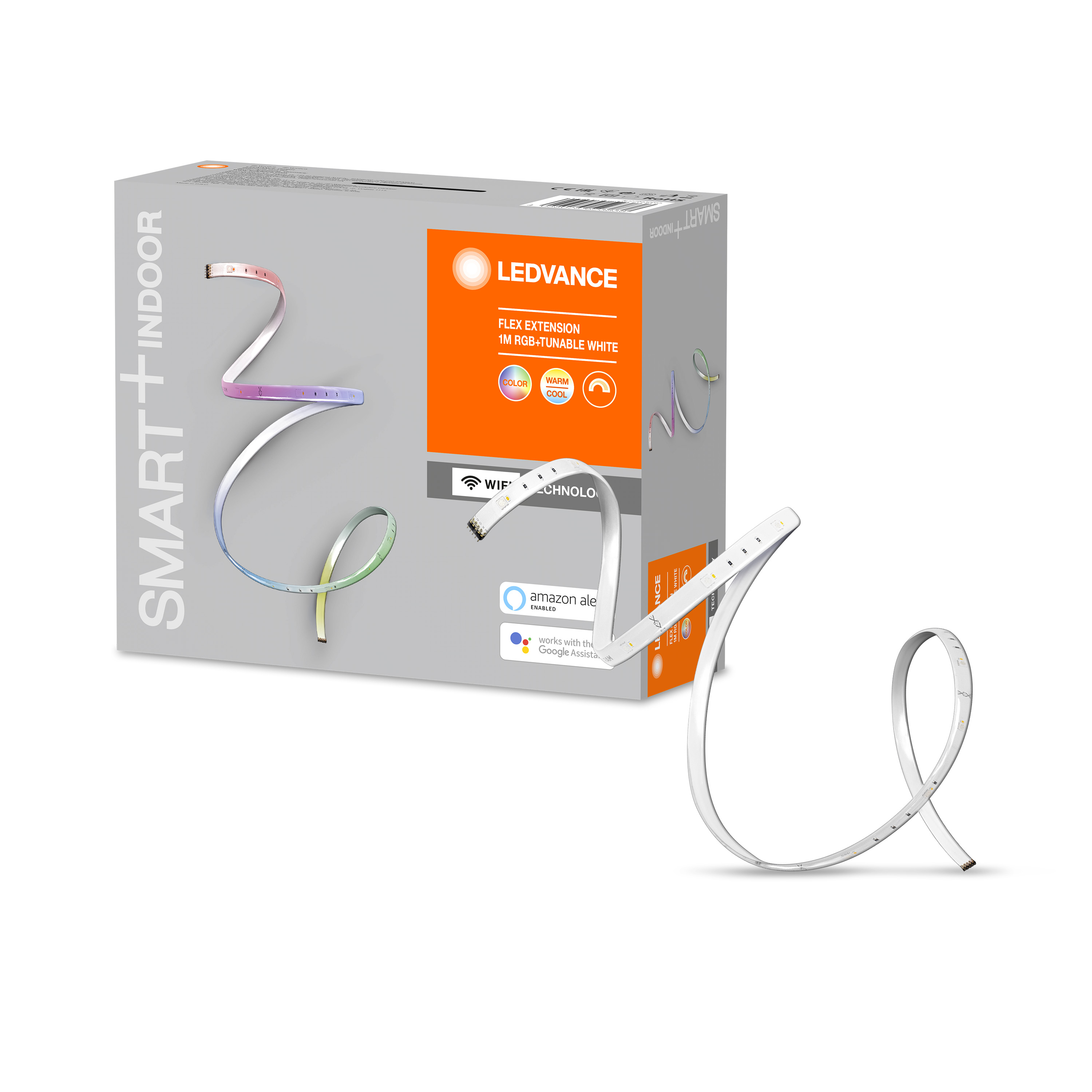

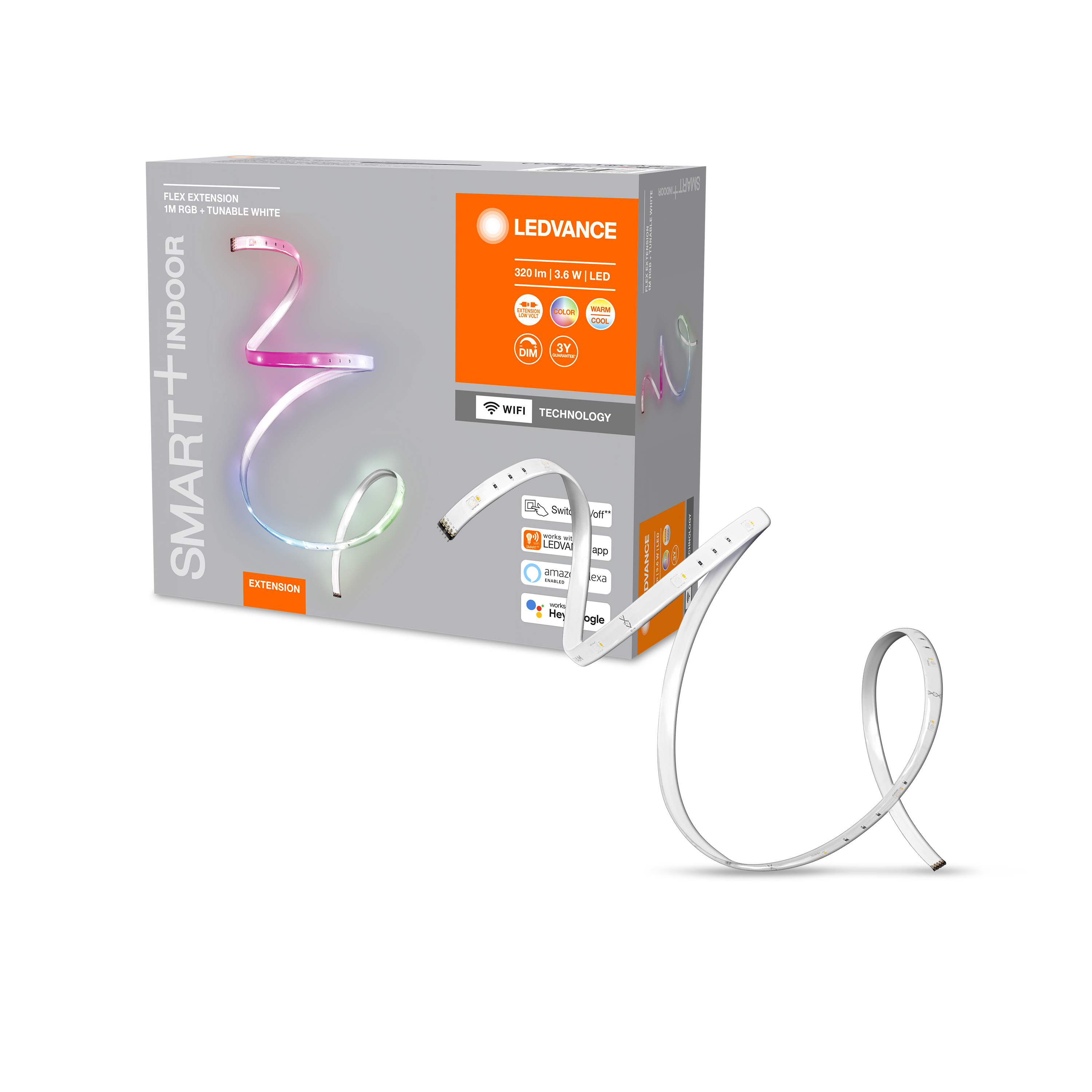

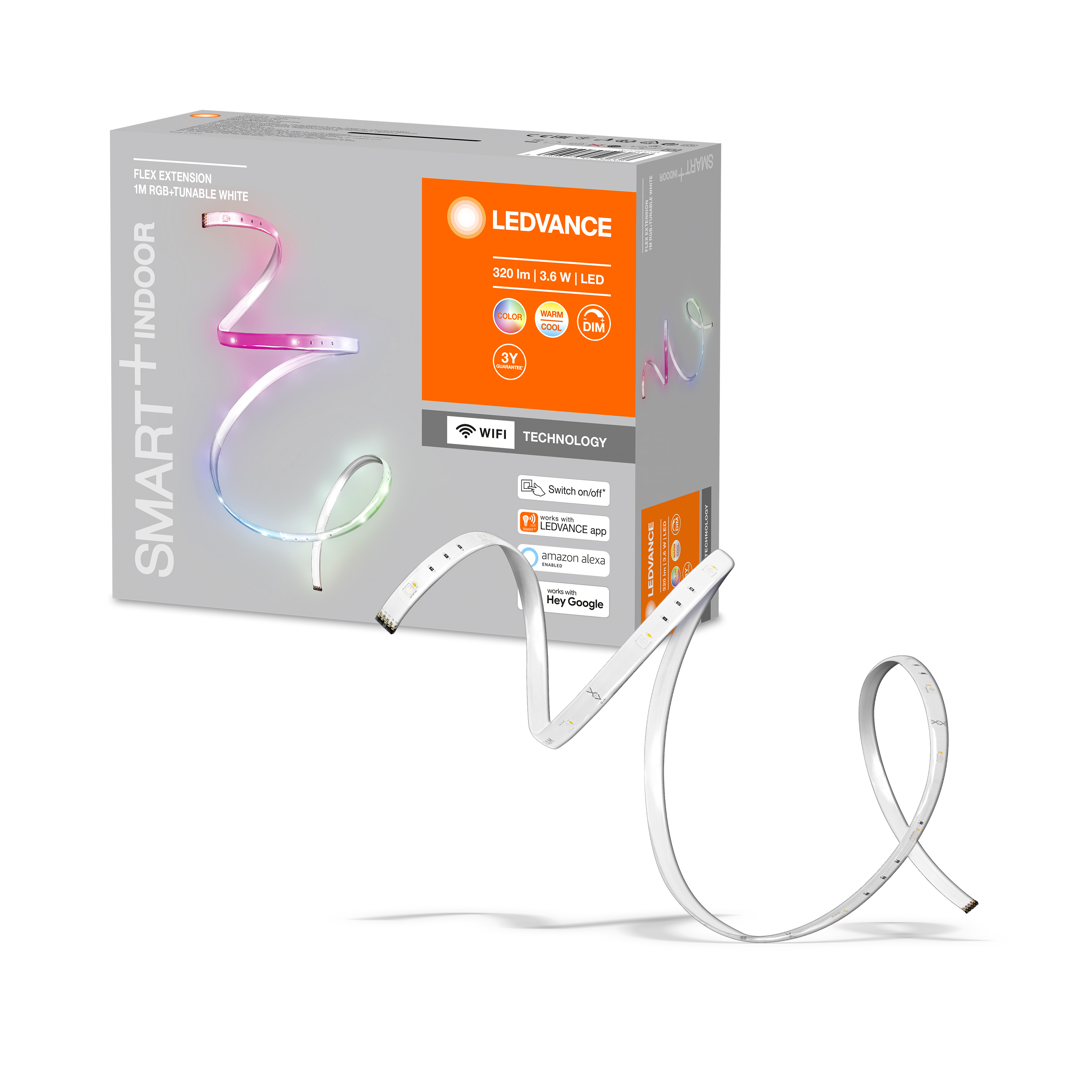

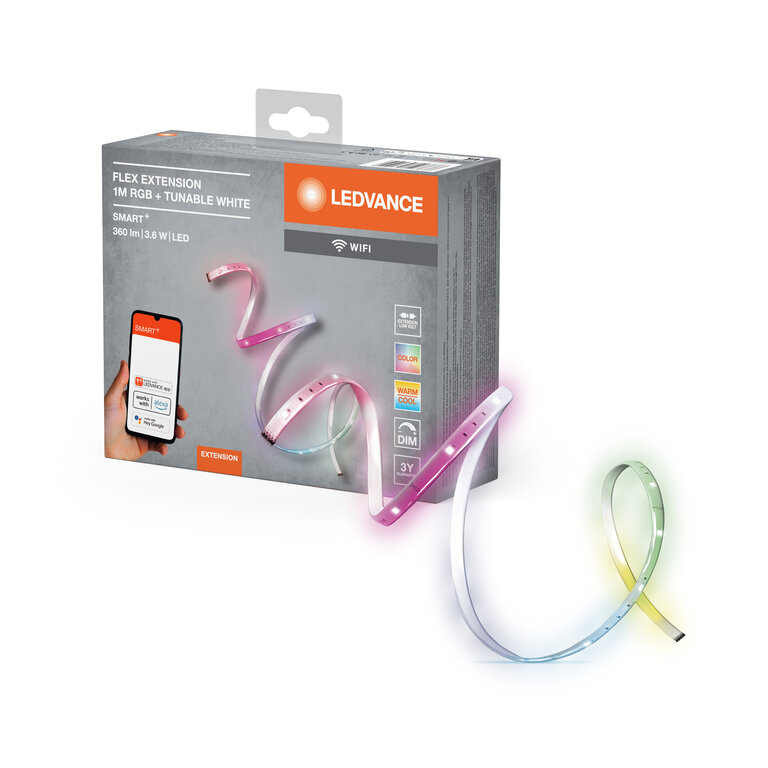

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI FLEX 1M EXT RGBTW MiPRC JPG (2.23 MB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI FLEX 1M EXT RGBTW MiPRC JPG (2.27 MB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI FLEX 1M EXT RGBTW MiPRC JPG (2.23 MB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI FLEX 1M EXT RGBTW MiPRC JPG (789.74 KB)

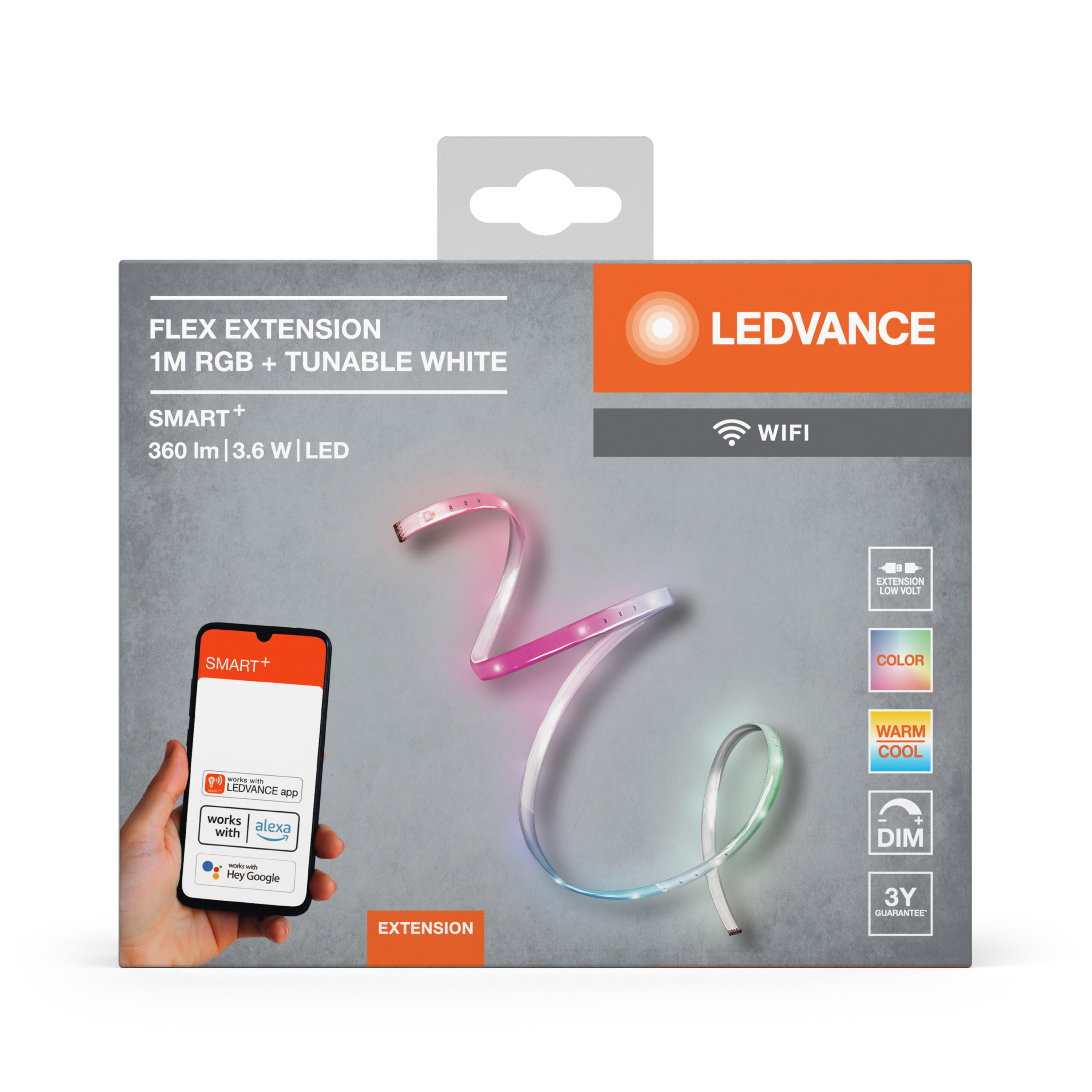

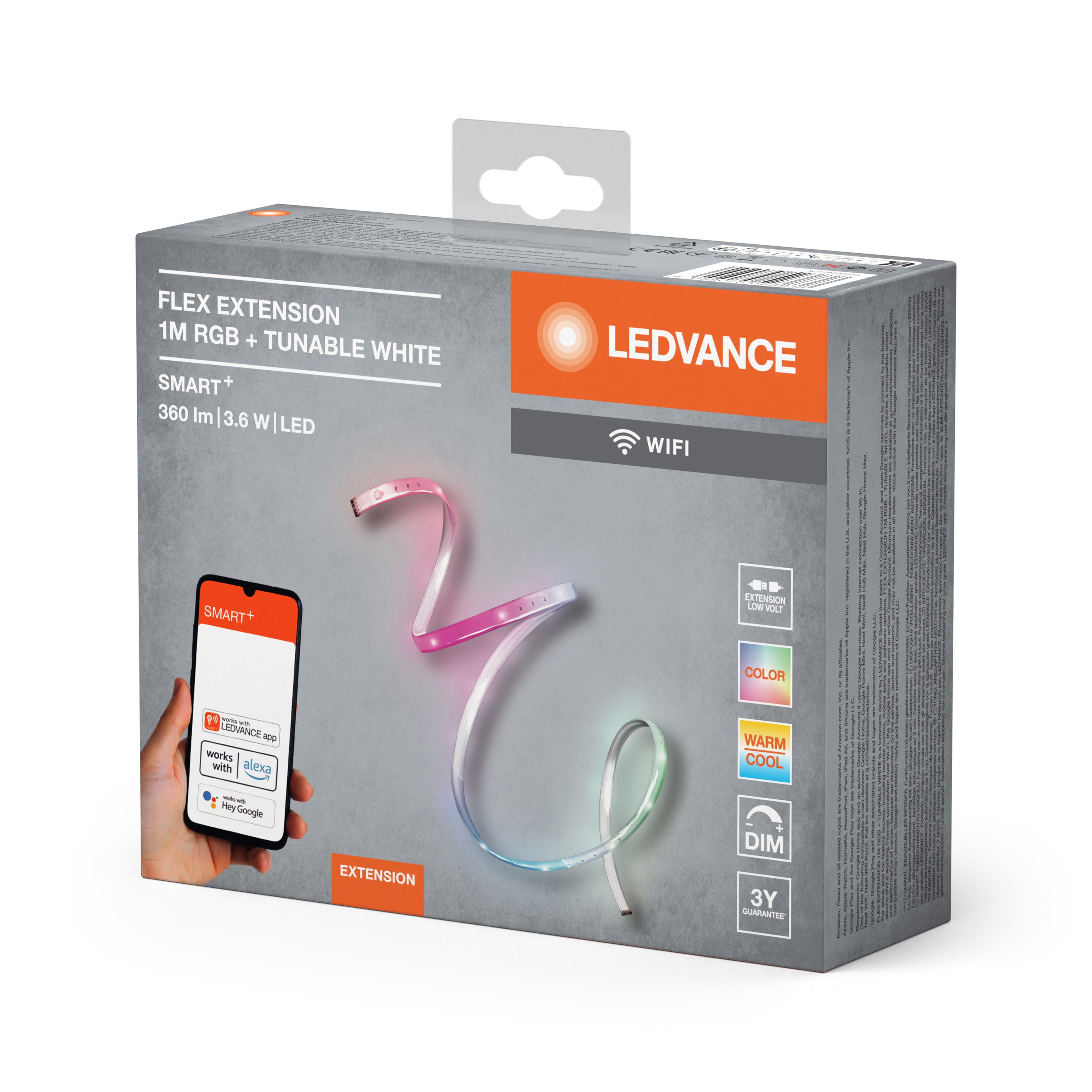

Packaging image, frontal
SH FC WIFI FLEX 1M EXT RGBTW MiPRC JPG (875.01 KB)
Packaging image, spacial
SH FC WIFI FLEX 1M EXT RGBTW MiPRC JPG (979.25 KB)

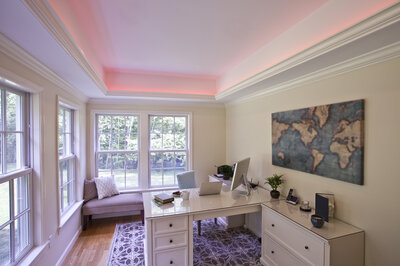

Application pictures
SMART+ WIFI FLEX MULTI COLOR JPG (14.94 MB)
Video
Stills + Video of moti on sensor + light stri p MP4 (25.37 MB)
Video
Stills + Video of moti on sensor + light stri p MP4 (8.29 MB)
Video
Stills + Video of moti on sensor + light stri p MP4 (77.98 MB)
Video
DIY Video (LED-strip - -> Cornerlamp) MP4 (54.56 MB)
Video
DIY SoMe video. Make s helf light with LED-st rip MP4 (33.32 MB)
Video
DIY back lit earth lam p with LED-strips MP4 (40.49 MB)
Video
DIY back lit earth lam p with LED-strips MOV (61.75 MB)
EAN EFO number ELDAS number
4058075523838 3254381 941600540
