Smart+ Orbis Wood

Choose your product version

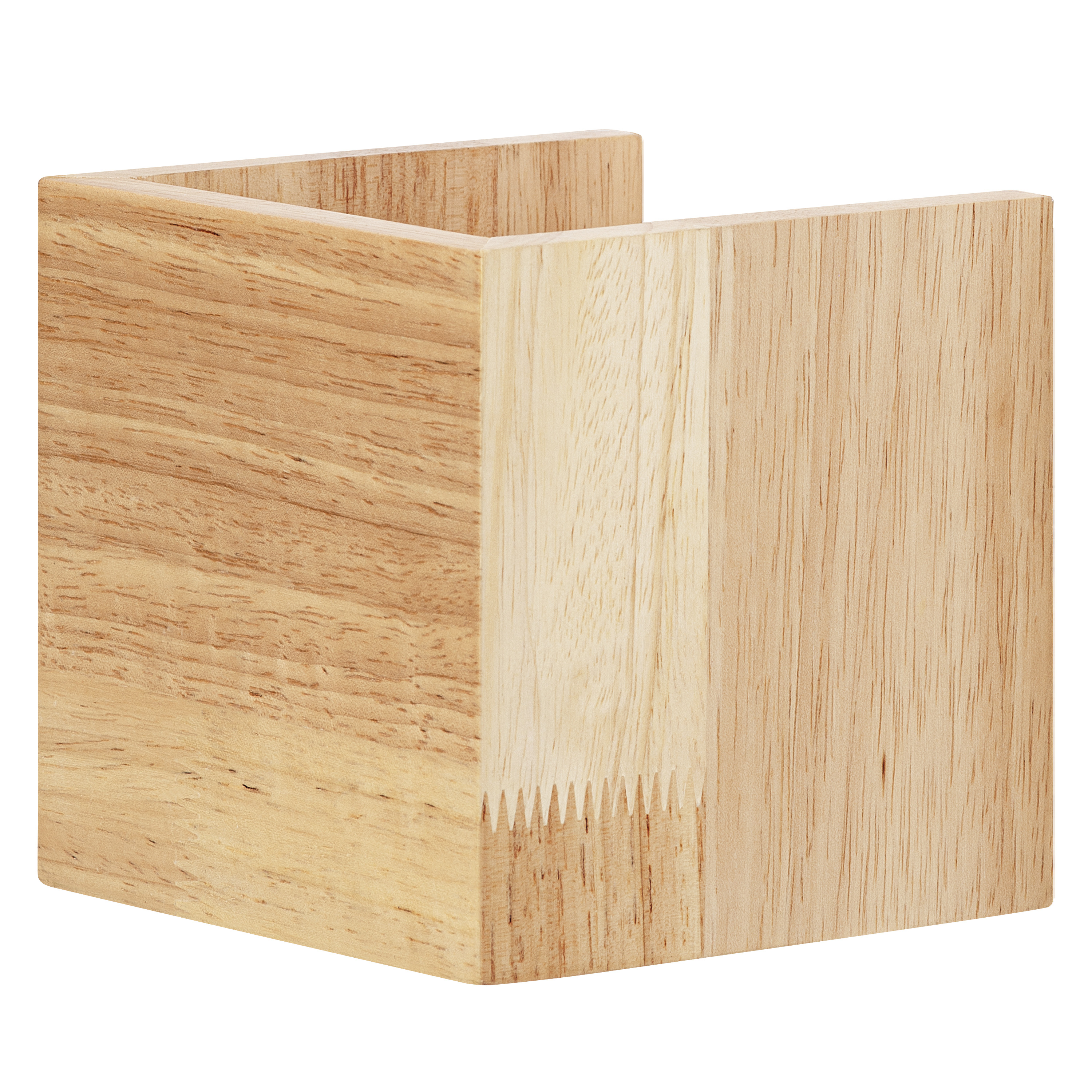

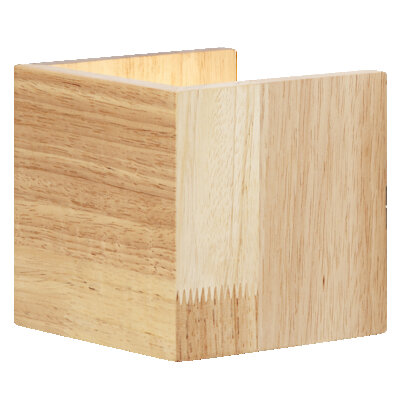

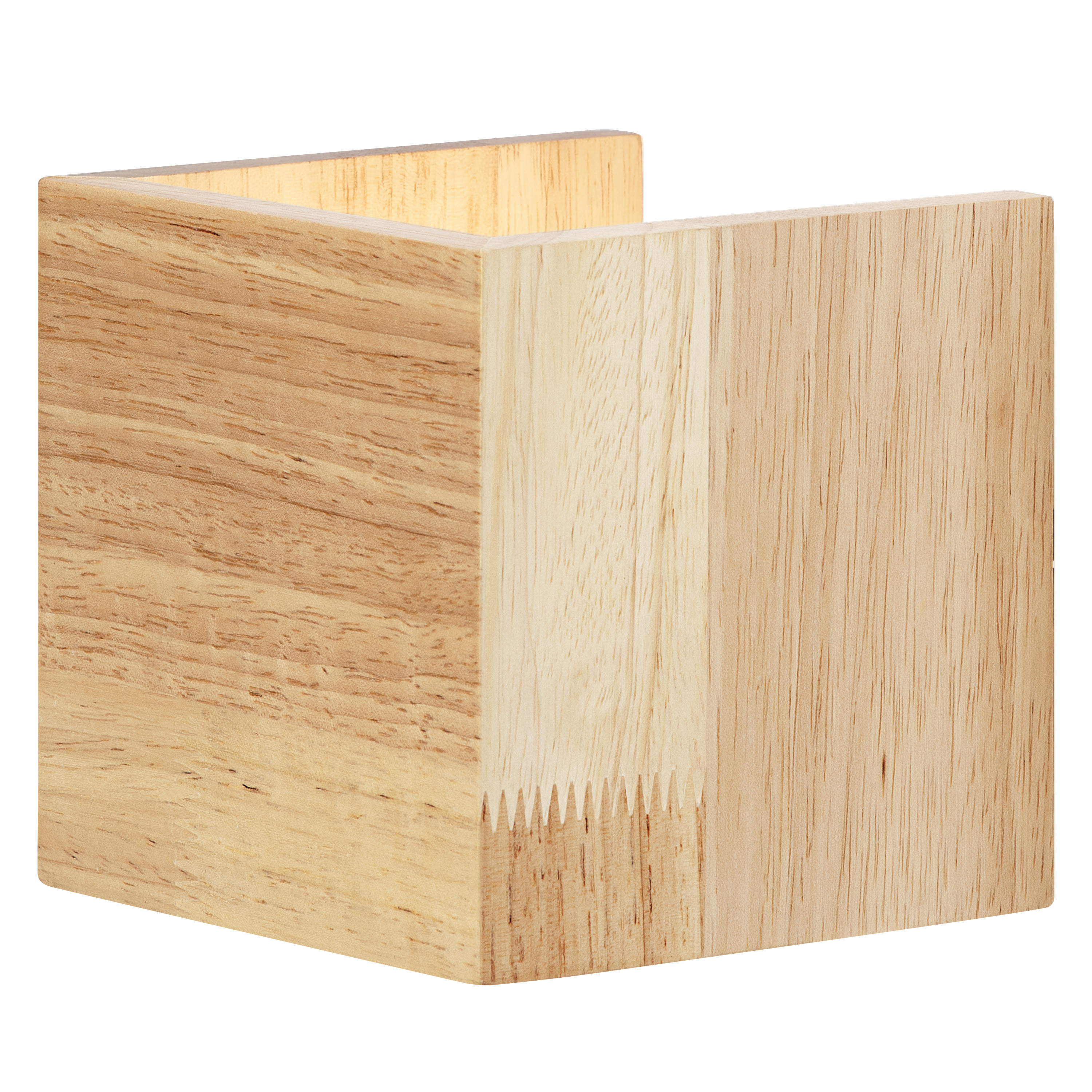

SMART+ Wifi Orbis Wall Wood 110X110mm TW

Product benefits
  • Easy and quick installation

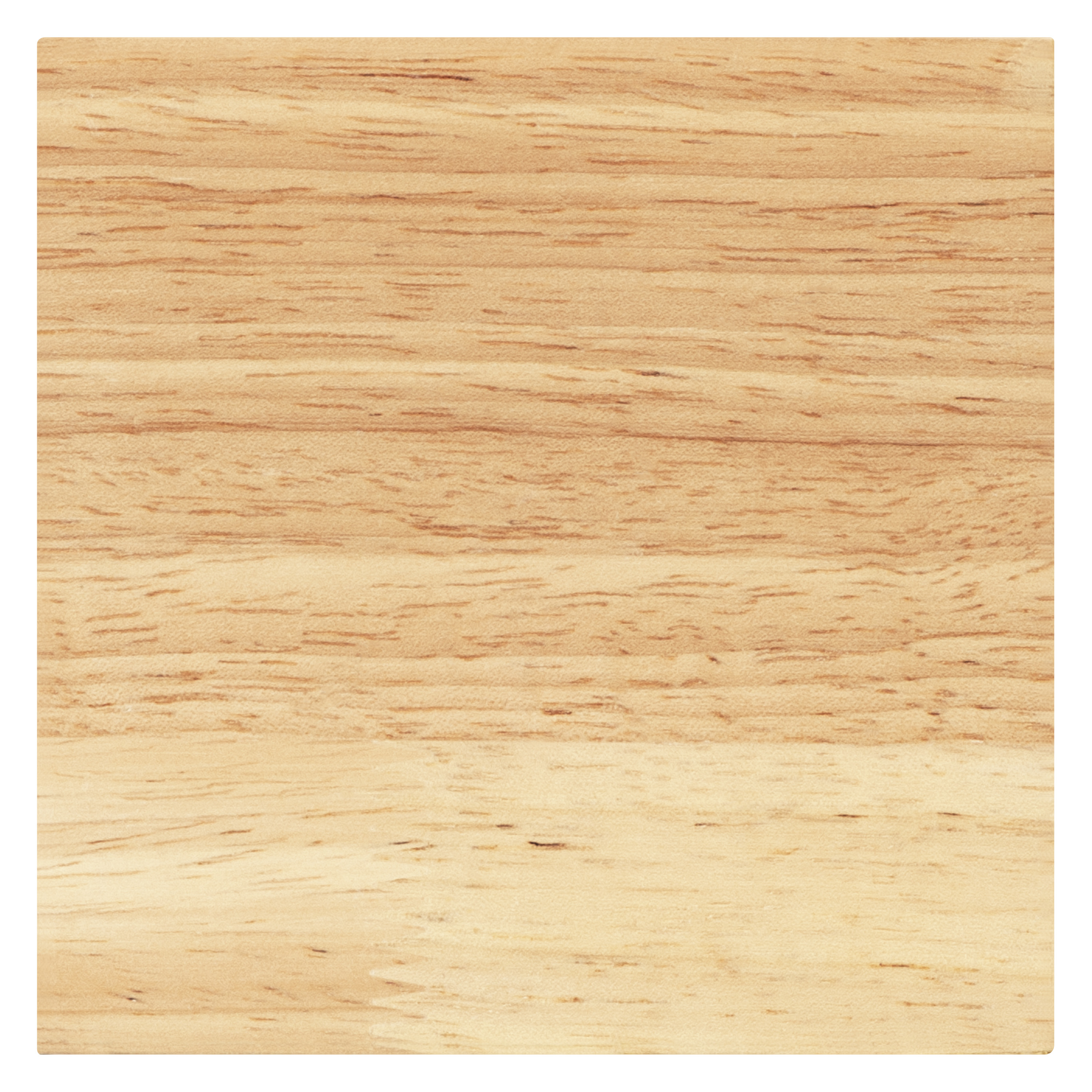

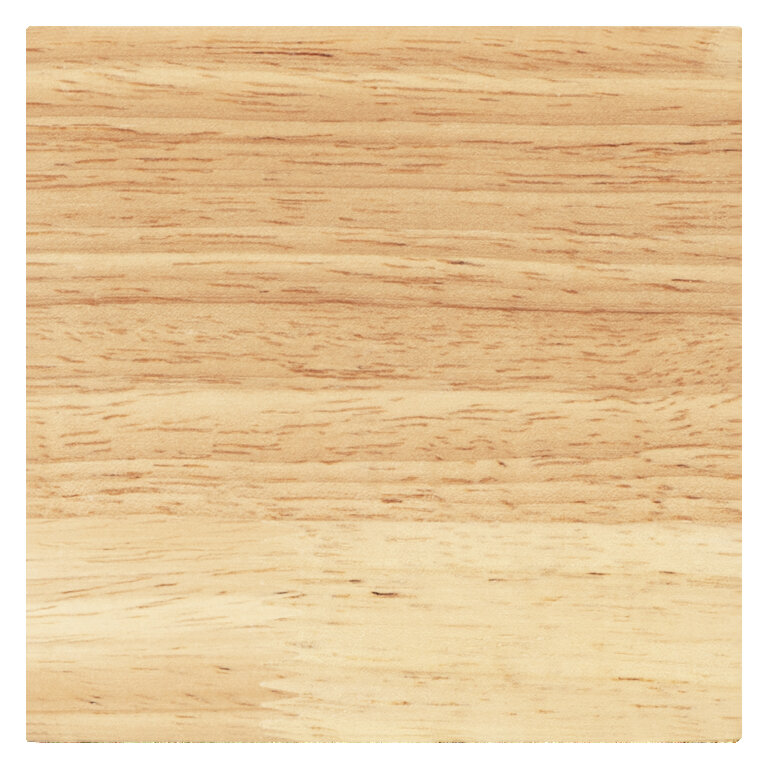

  • Real wood

PRODUCT DETAILS

Electrical data

Nominal wattage 7.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 32.000 mA
Inrush current 0.2 A
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 400 lm
Total luminous flux of contained light sources 600 lm
Luminous efficacy 66 lm/W
Color temperature 3000…6500 K
Reference control setting of contained light source (Kelvin) 3000 K 1)
Light color (designation) Tunable White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 360 °
UGR 11

1) Performing a reset will restore the default values set by the manufacturer

Dimensions & Weight

Length 110.00 mm
Height 110.00 mm
Width 110.00 mm
Product weight 500.00 g

Materials & Colors

Product color Yellow
Housing color Yellow
Body material Wood
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screw terminal
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Mounting location Wall
Application environment Indoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000

Emergency lighting

Integrated test switch No

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick installation
  • Real wood
Areas of application
  • Indoor applications

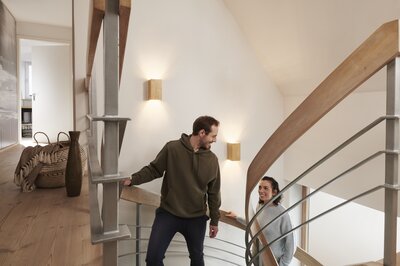

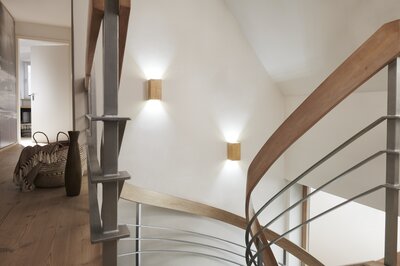

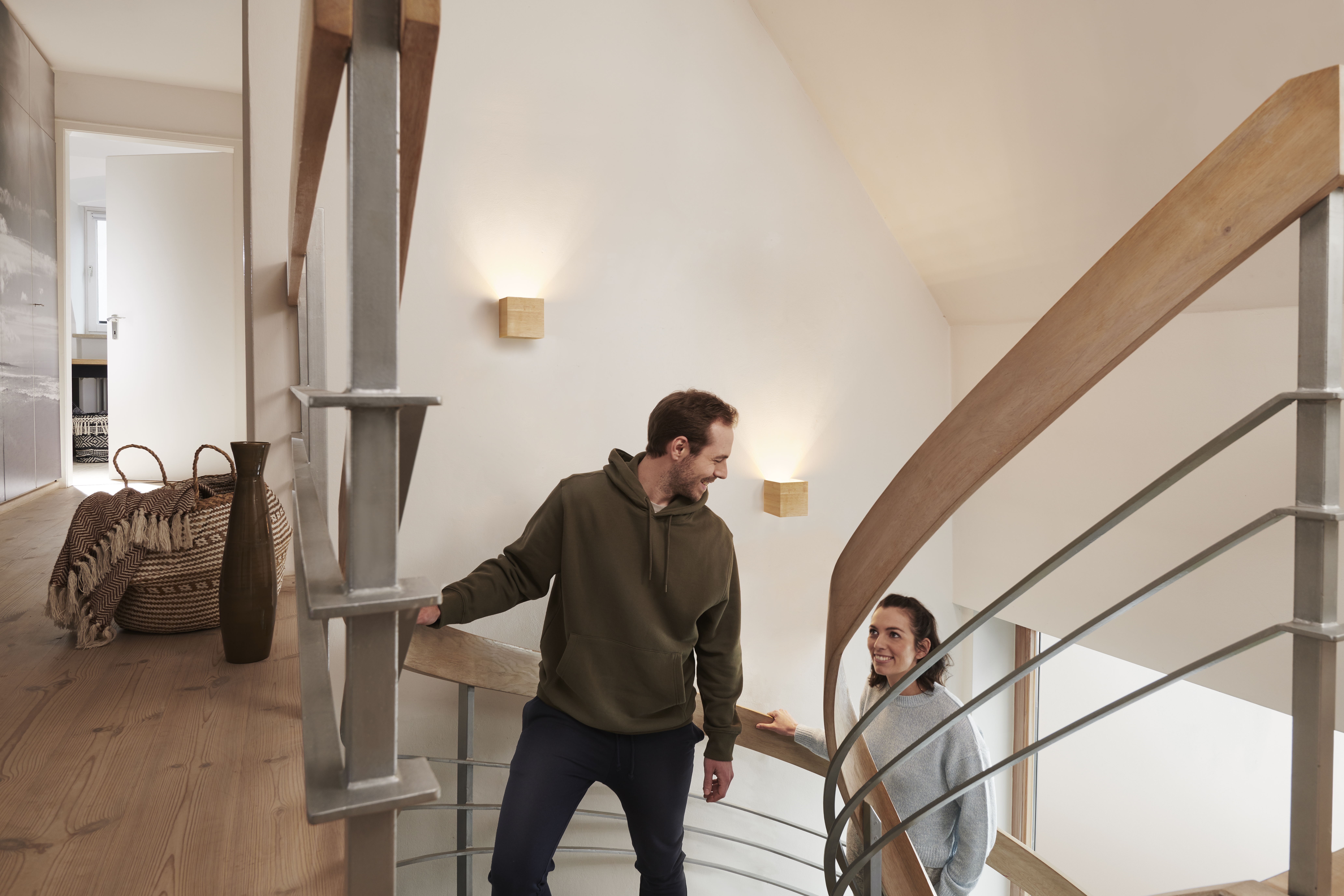

  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Adjustable color temperature via Tunable White: 3,000…6,500 K
  • Dimmable
  • Network protocol: WiFi
Equipment / Accessories
  • Mounting bracket included
  • Mounting screws and dowels included
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

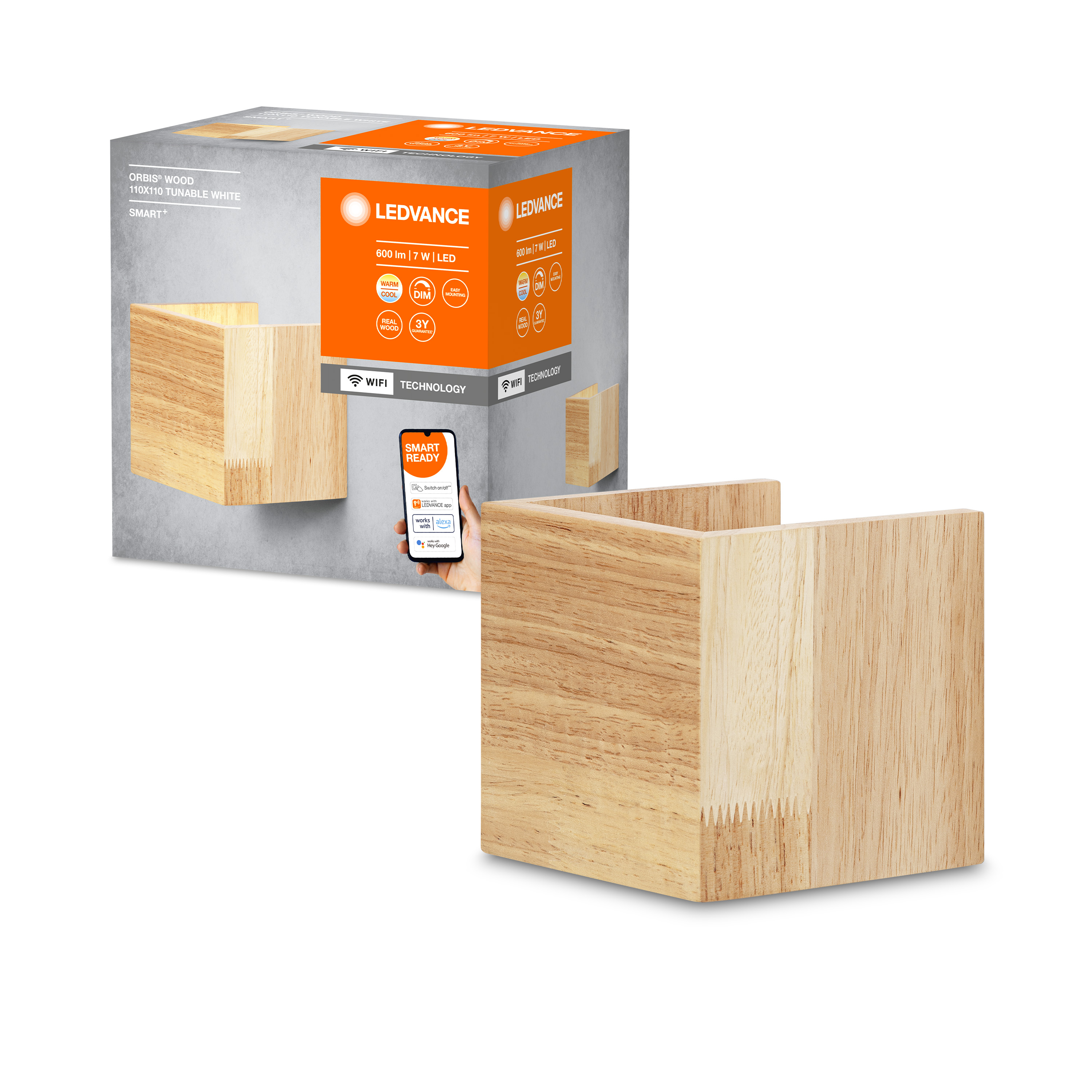

4058075574250 Folding box
1
120 mm x 160 mm x 160 mm 595.00 g 3.07 dm³
4058075574267 Shipping box
4
256 mm x 174 mm x 340 mm 2823.00 g 15.14 dm³
EAN ELDAS number
4058075574250 941264960
