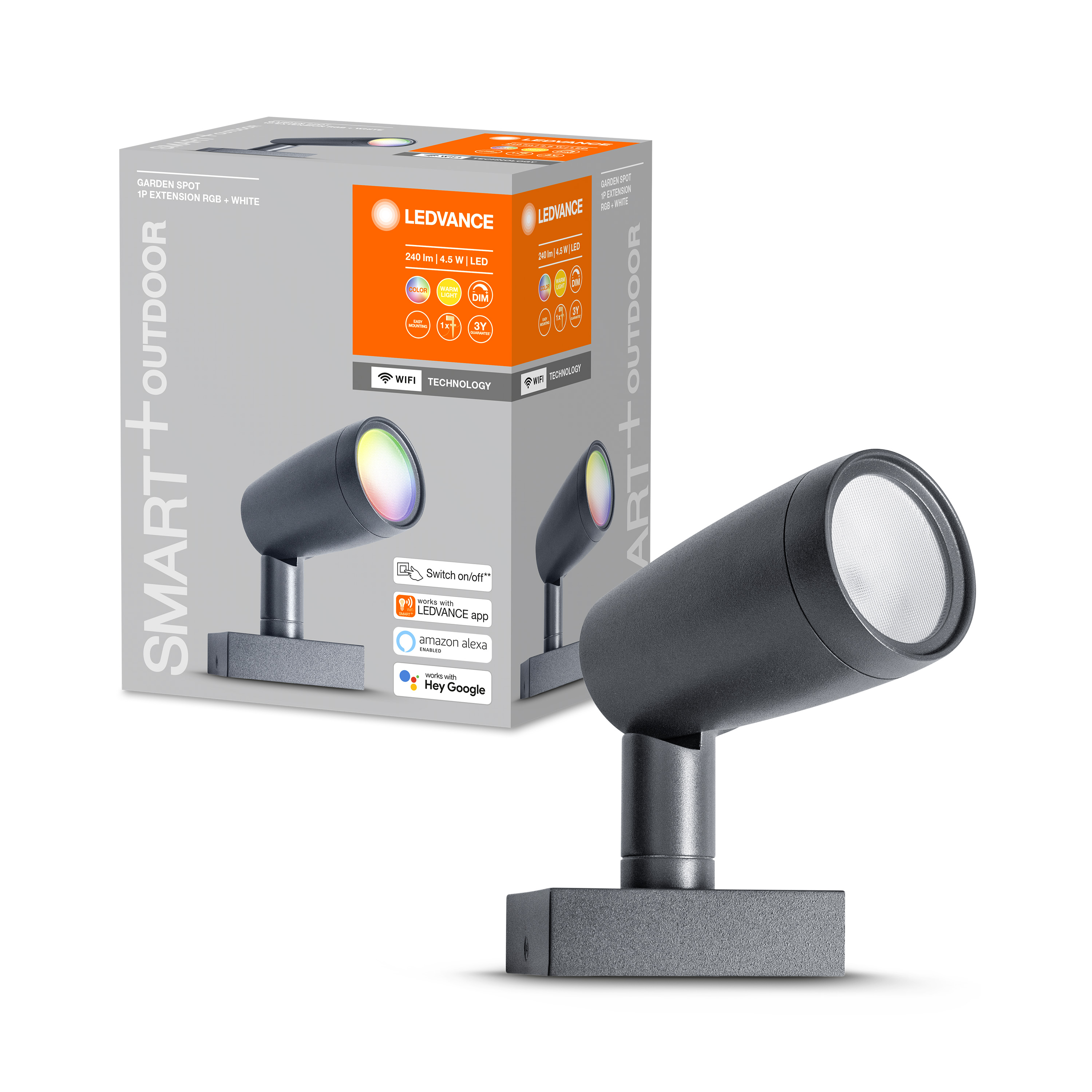

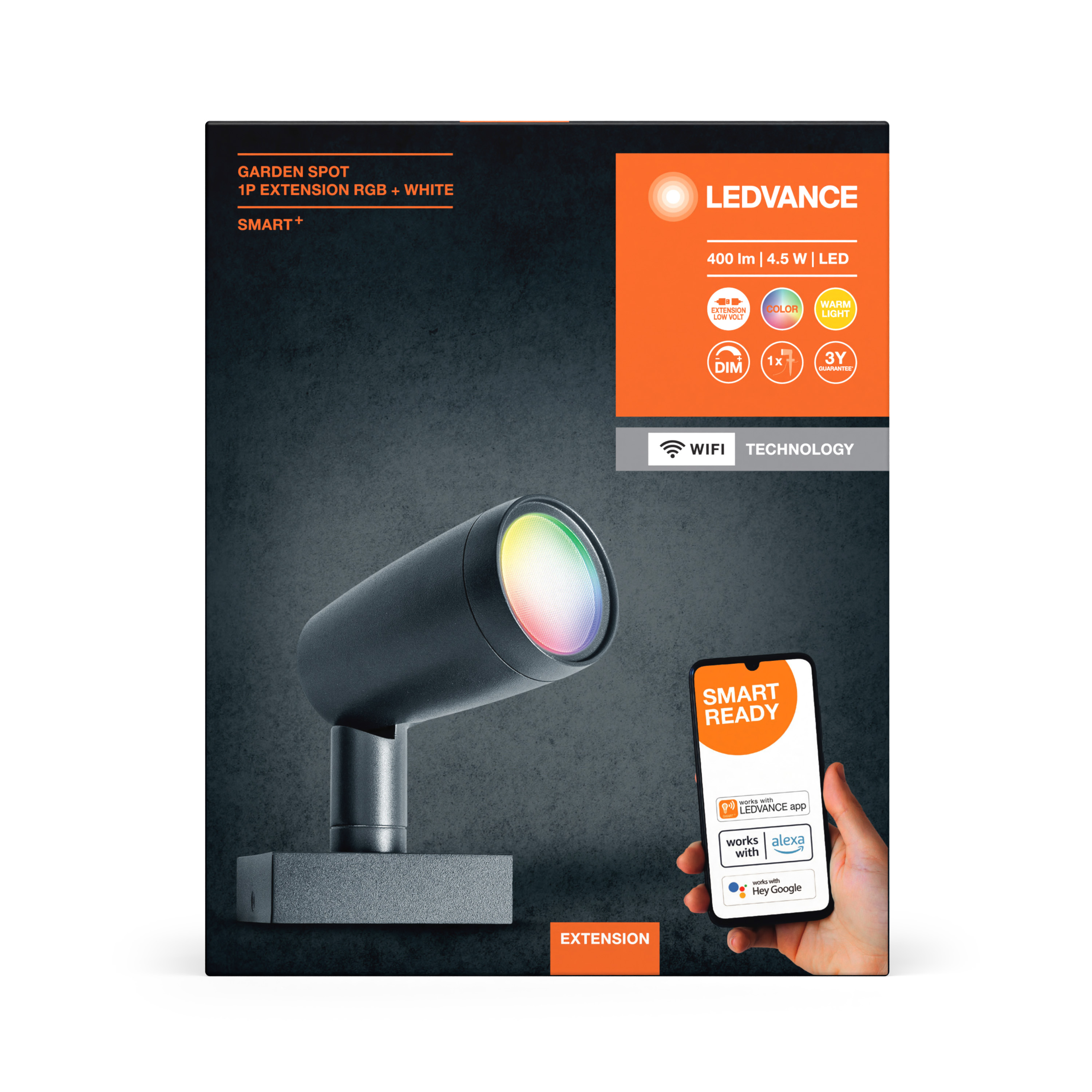

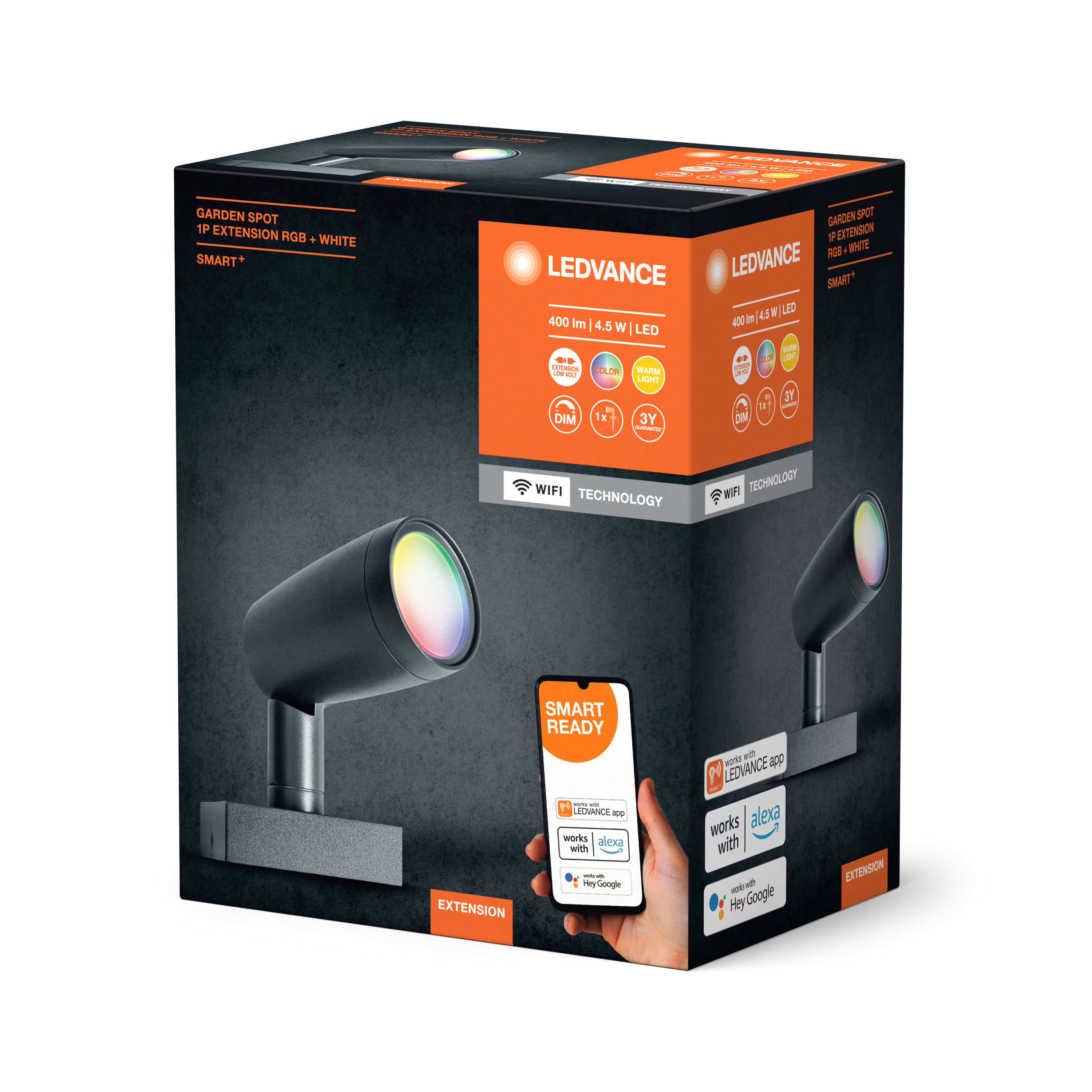

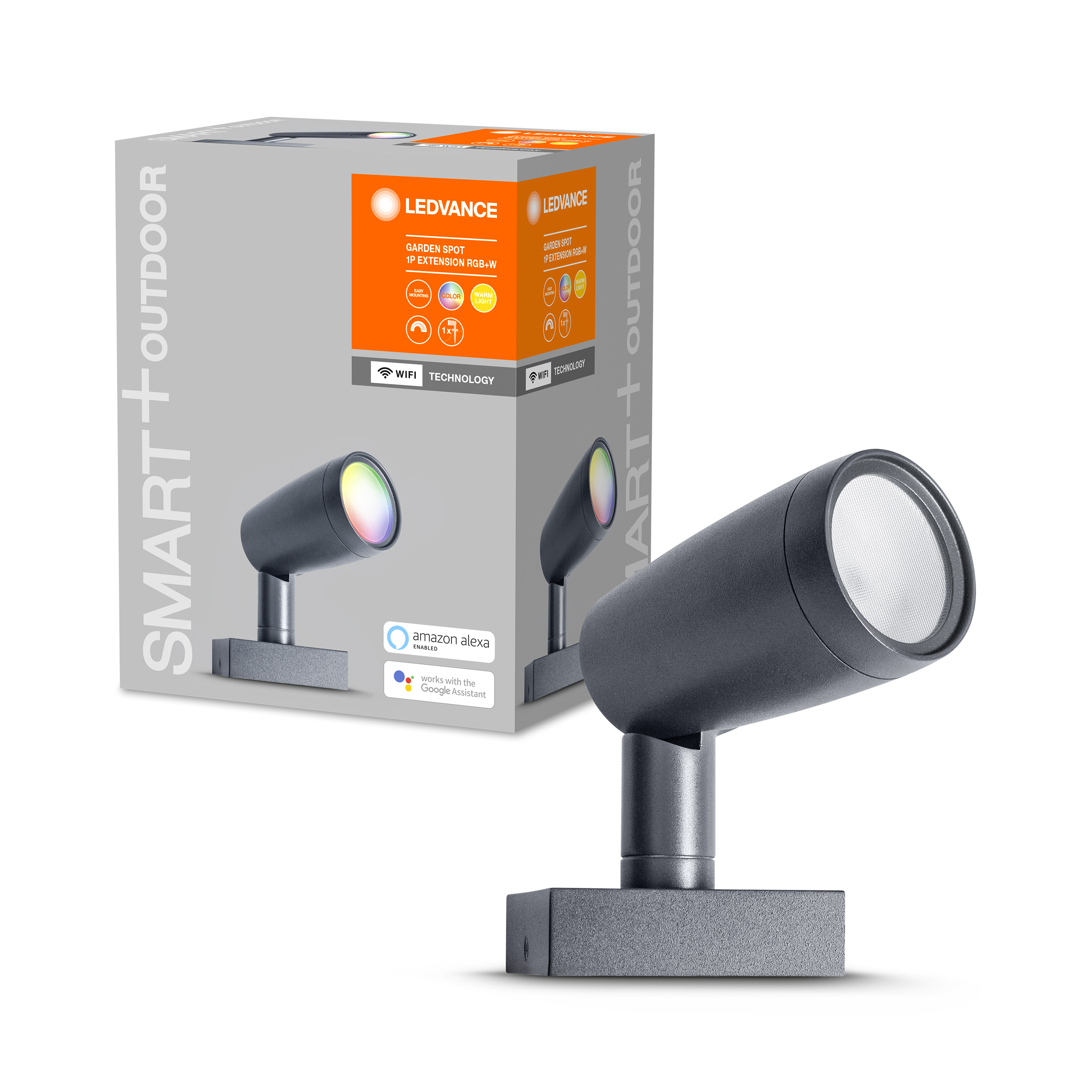

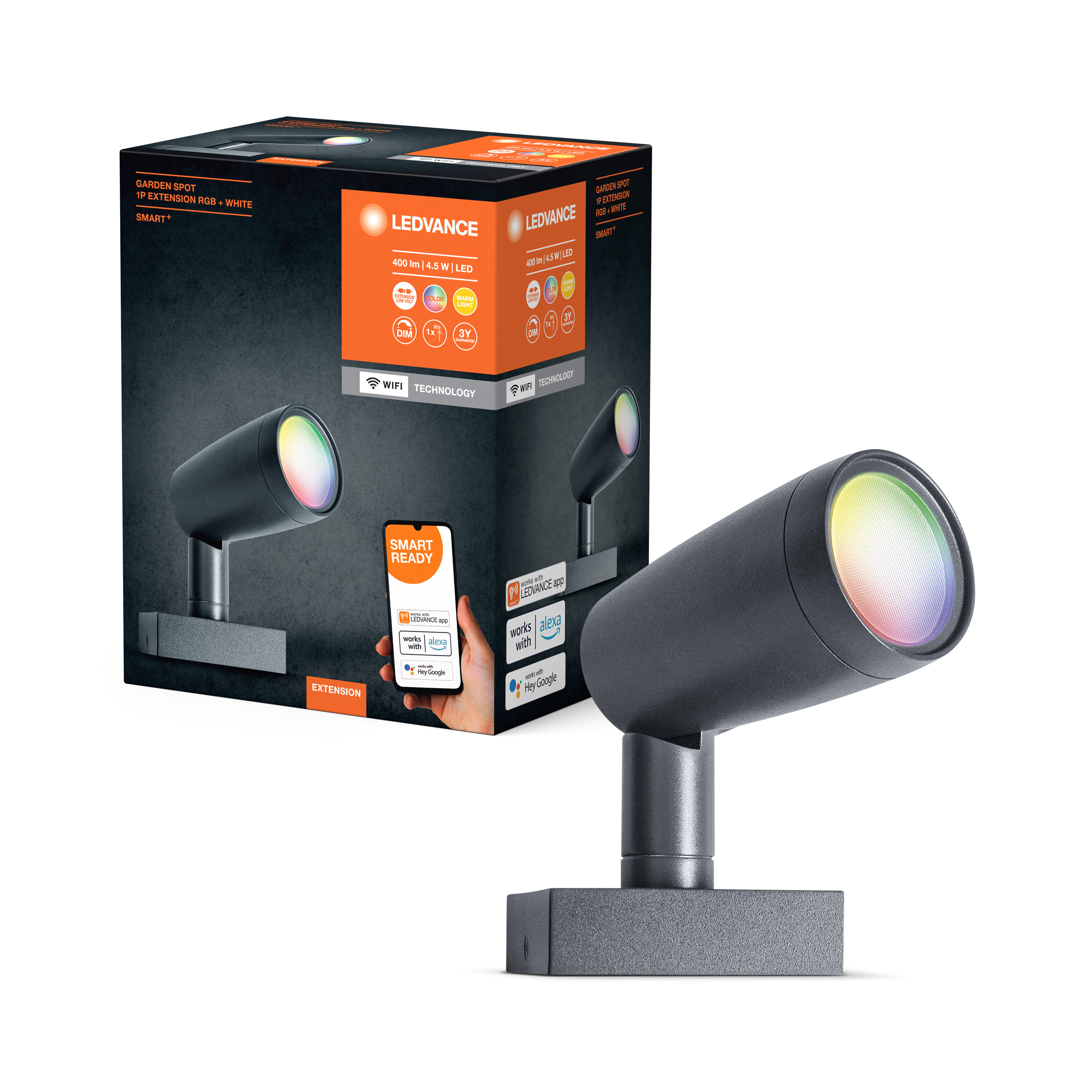

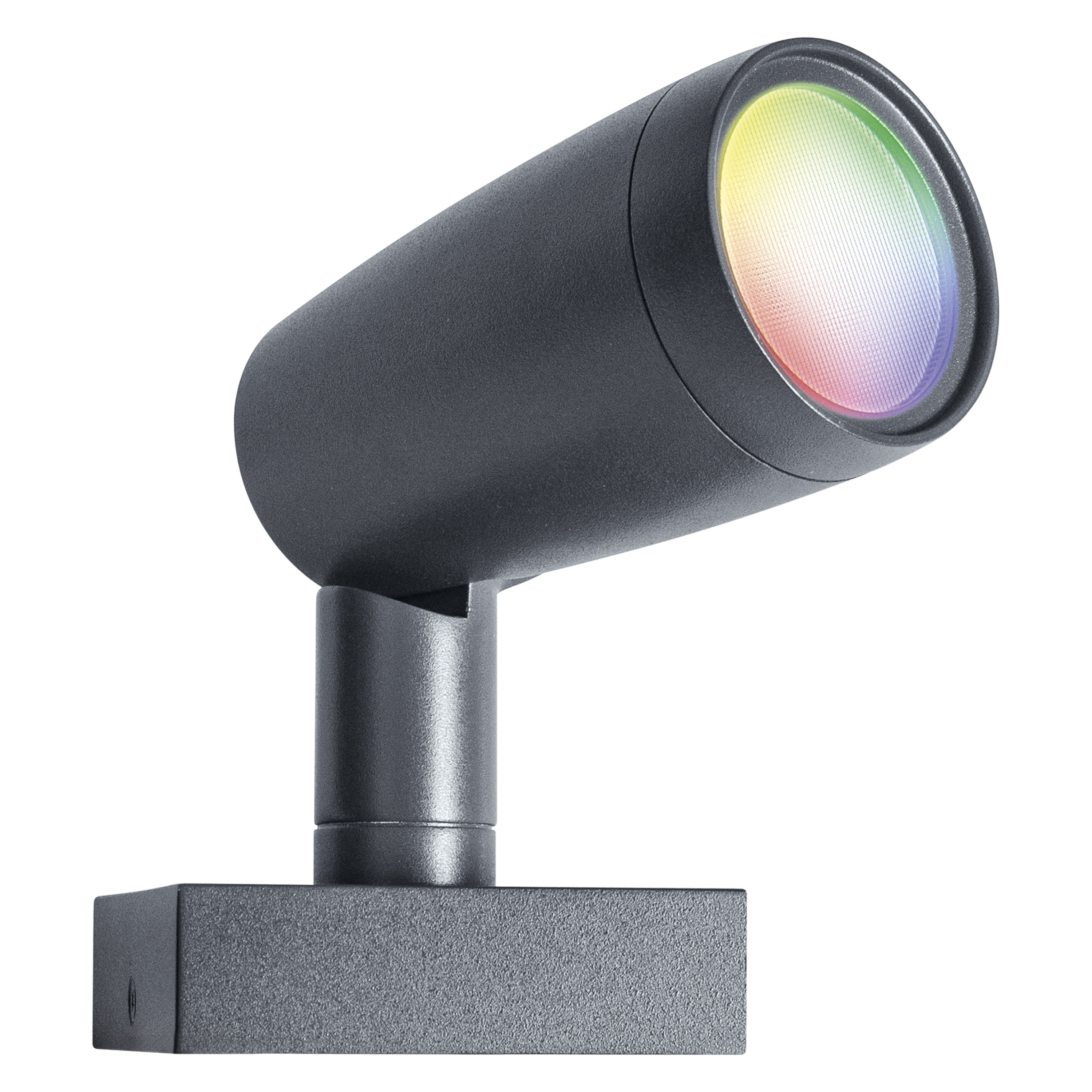

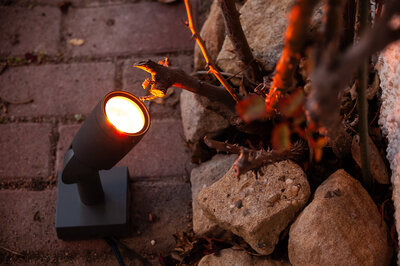

Smart+ Garden Spot Multicolor

Choose your product version



SMART+ Wifi Garden Spot 1P Ext RGB + W

Product benefits
  • Easy and quick installation

PRODUCT DETAILS

Electrical data

Nominal wattage 4.50 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ > 0.5
Protection class III
Operating mode Mains voltage

Photometrical data

Luminous flux 240 lm
Total luminous flux of contained light sources 400 lm
Luminous efficacy 58 lm/W
Color temperature 3000 K
Light color (designation) RGBW
Color rendering index Ra ≥80
Standard deviation of color matching ≤6 sdcm
Beam angle 76.00 °

Dimensions & Weight

Length 145.00 mm
Height 295.00 mm
Width 90.00 mm
Product weight 480.00 g

Materials & Colors

Product color Dark gray
Housing color Dark gray
Body material Aluminum
Cover material Glass

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Plug, EU
Type of protection IP44
Dimmable Yes
Type of dimming WiFi
Mounting type Ground spike
Mounting location Ground
Application environment Outdoor
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 12500

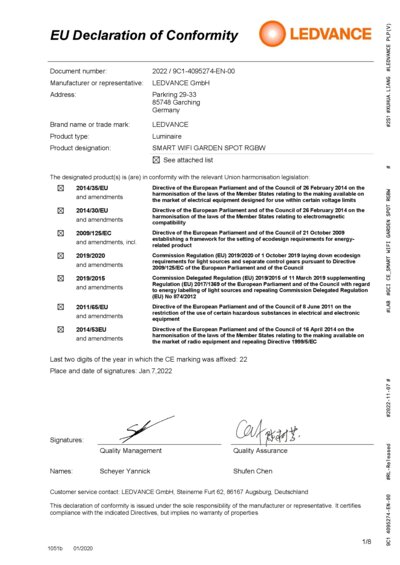

Certificates & Standards

Standards CE, EAC
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick installation
Areas of application

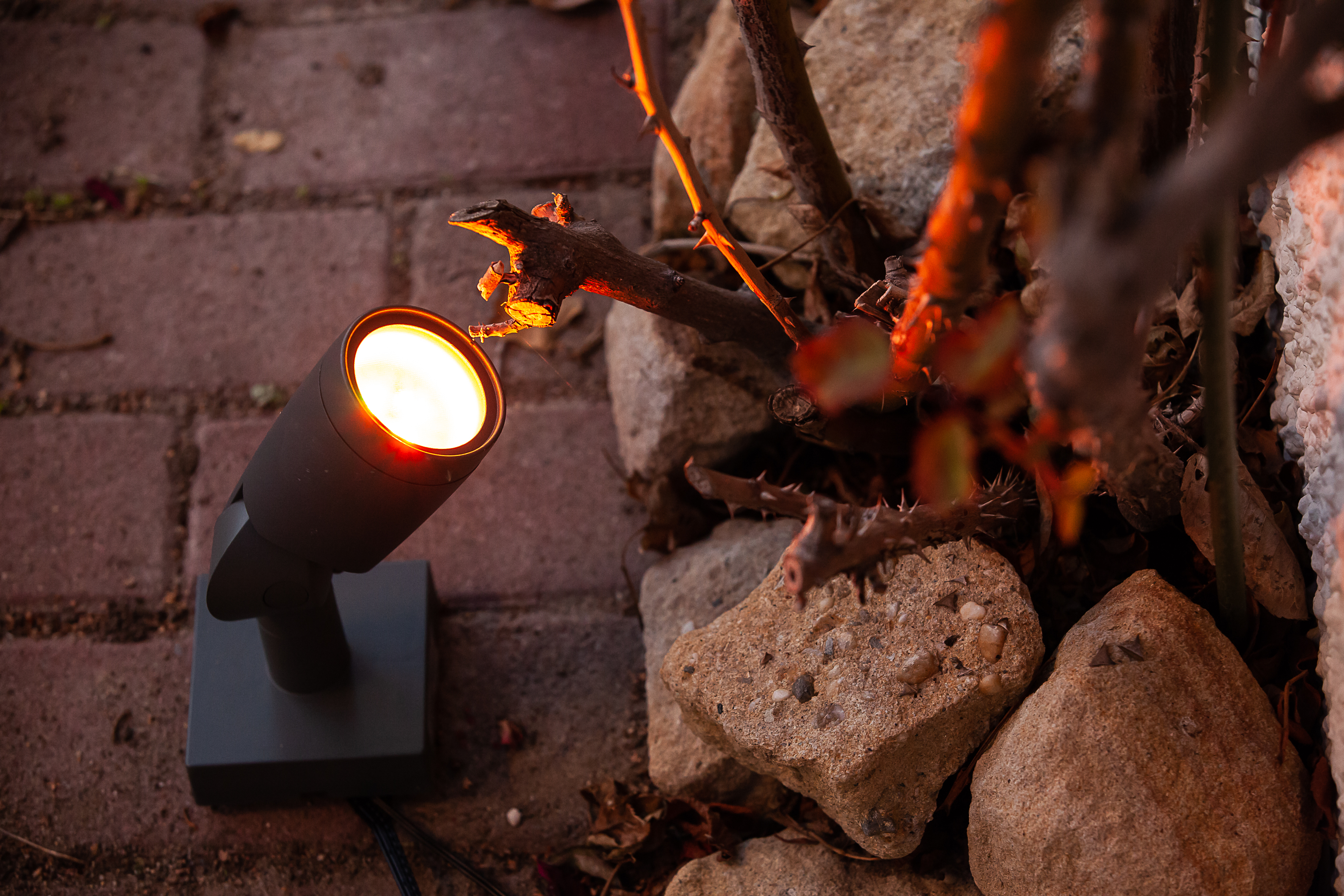

  • Gardens, balconies and other outdoor areas
Product features
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Color temperature: 3,000 K (Warm White)
  • Protection class (dots): IP65
  • Protection class (power supply): IP44
  • Maximum 3 spots connected to one power supply

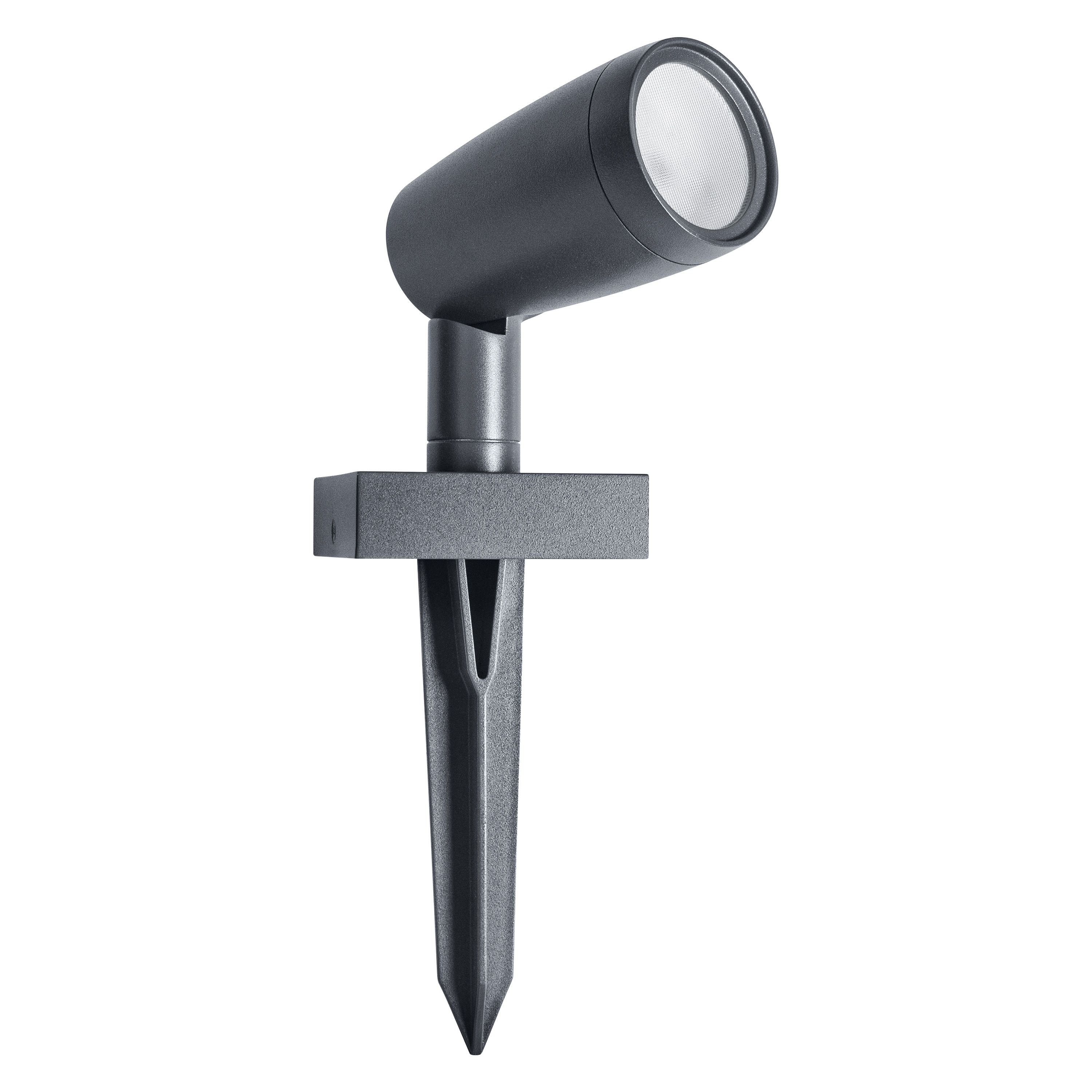

  • Easy mounting via earth spike or screws
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • Power supply included only in basic set
  • Control via app or voice control requires compatible Smart home system
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075478398 Folding box
1
100 mm x 140 mm x 175 mm 537.00 g 2.45 dm³
4058075478404 Shipping box
4
300 mm x 220 mm x 195 mm 2464.00 g 12.87 dm³
