OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux
DULUX T/E PLUS 13 W/827	GX24q-1	13 W	91 V	20000 h	850 lm	Yes
DULUX T/E PLUS 13 W/830	GX24q-1	13 W	91 V	20000 h	850 lm	Yes
DULUX T/E PLUS 13 W/840	GX24q-1	13 W	93 V	20000 h	850 lm	Yes
DULUX T/E PLUS 18 W/827	GX24q-2	18 W	100 V	20000 h	1200 lm	Yes
DULUX T/E PLUS 18 W/830	GX24q-2	18 W	100 V	20000 h	1200 lm	Yes
DULUX T/E PLUS 18 W/840	GX24q-2	18 W	100 V	20000 h	1200 lm	Yes
DULUX T/E PLUS 26 W/827	GX24q-3	26 W	105 V	20000 h	1750 lm	Yes
DULUX T/E PLUS 26 W/830	GX24q-3	26 W	105 V	20000 h	1750 lm	Yes
DULUX T/E PLUS 26 W/840	GX24q-3	26 W	105 V	20000 h	1750 lm	Yes
DULUX T/E PLUS 32 W/827	GX24q-3	32 W	100 V	20000 h	2250 lm	Yes
DULUX T/E PLUS 32 W/830	GX24q-3	32 W	100 V	20000 h	2250 lm	Yes
DULUX T/E PLUS 32 W/840	GX24q-3	32 W	100 V	20000 h	2250 lm	Yes
DULUX T/E PLUS 32 W/3000 K 100 V GX24q-3	GX24q-3	32 W	100 V	13000 h	2400 lm
DULUX T/E 32 W/830 GX24Q	GX24q-3	32 W	100 V	13000 h	2400 lm
DULUX T/E 32 W/840 GX24Q	GX24q-3	32 W	100 V	13000 h	2400 lm
DULUX T/E PLUS 32 W/4000 K 100 V GX24q-3	GX24q-3	32 W	100 V	13000 h	2400 lm
DULUX T/E PLUS 42 W/827	GX24q-4	42 W	135 V	20000 h	3050 lm	Yes
DULUX T/E PLUS 42 W/830	GX24q-4	42 W	135 V	20000 h	3050 lm	Yes
DULUX T/E PLUS 42 W/840	GX24q-4	42 W	135 V	20000 h	3050 lm	Yes
DULUX T/E 42 W/830 GX24Q	GX24q-4	42 W	135 V	13000 h	3200 lm
DULUX T/E PLUS 42 W/3000 K 135 V GX24q-4	GX24q-4	42 W	135 V	13000 h	3200 lm
DULUX T/E PLUS 42 W/4000 K 135 V GX24q-4	GX24q-4	42 W	135 V	13000 h	3200 lm
DULUX T/E 42 W/840 GX24Q	GX24q-4	42 W	135 V	13000 h	3200 lm

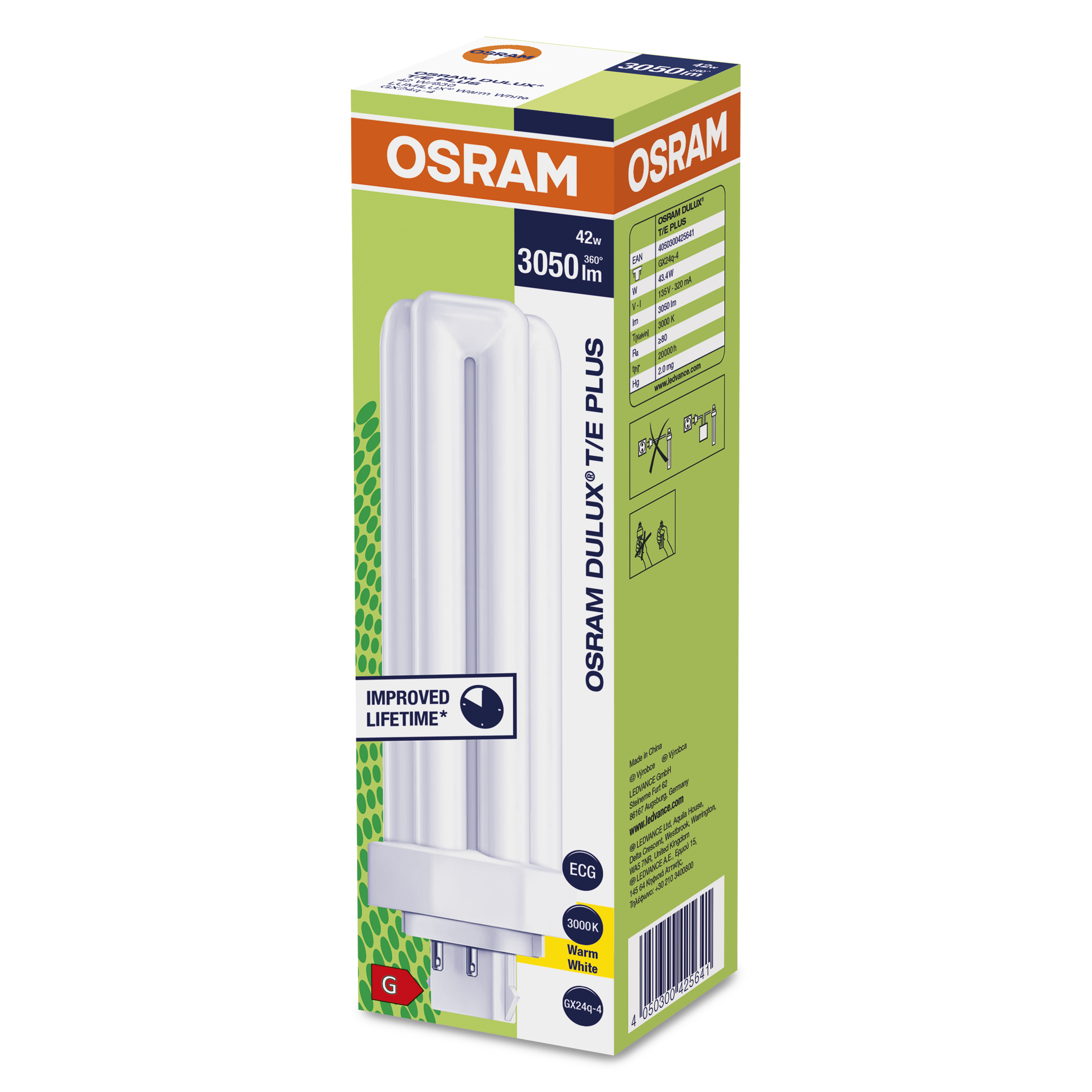

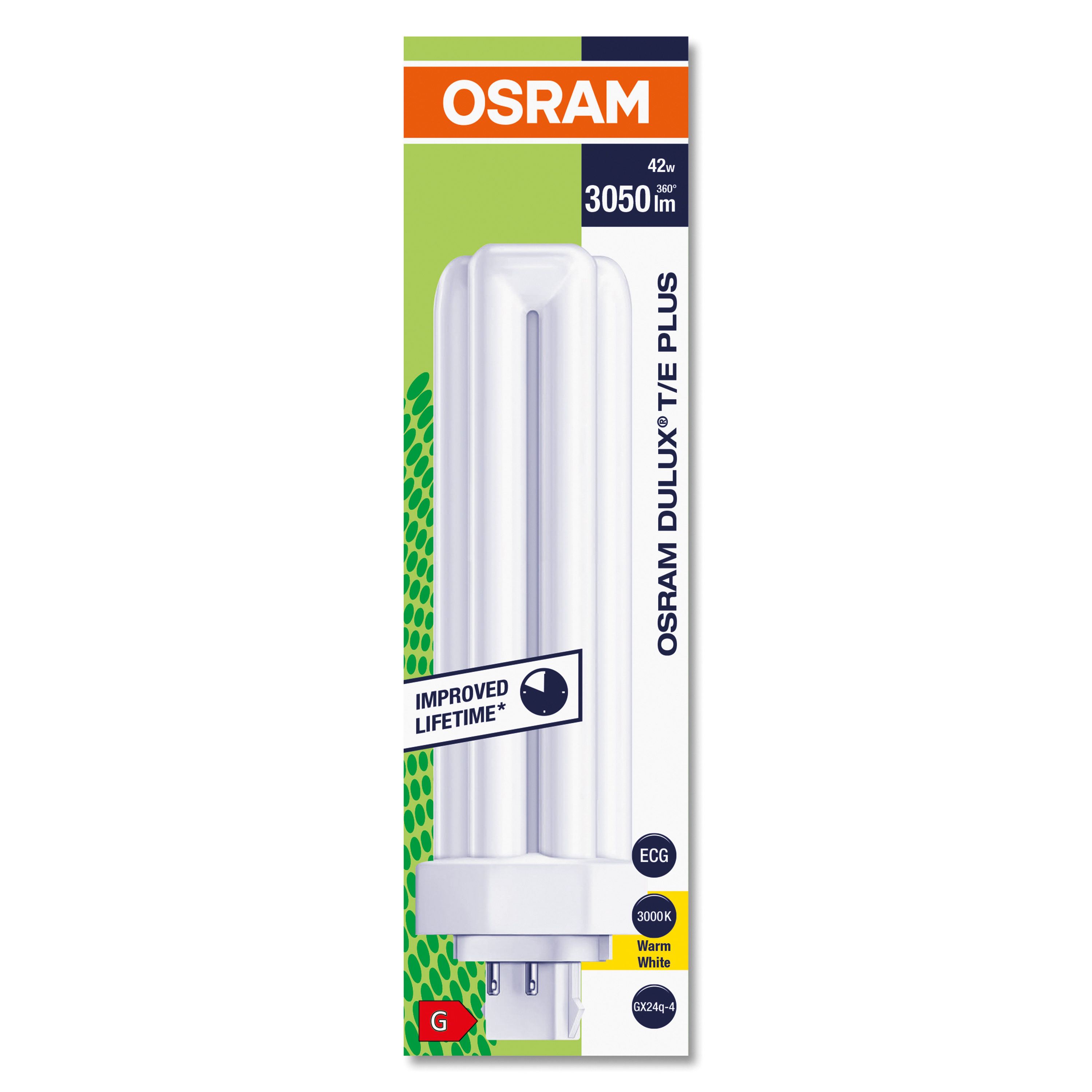

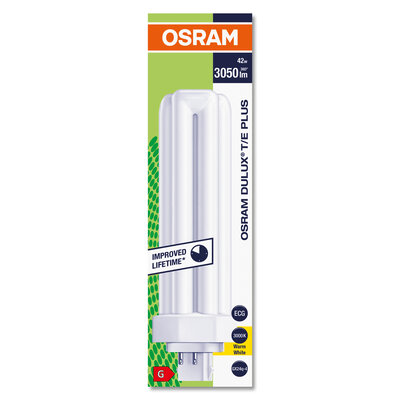

DULUX T/E PLUS 42 W/830

Product benefits

Improved maintenance

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	42 W
Construction wattage	43.40 W
Nominal voltage	135 V
Nominal current	0.32 A

Photometrical data

Luminous flux	3050 lm
Luminous efficacy	70 lm/W
Light color (designation)	LUMILUX Warm White
Color temperature	3000 K
Color rendering index Ra	≥80
Light color	830
Rated LLMF at 2,000 h	0.90
Rated LLMF at 4,000 h	0.84
Rated LLMF at 6,000 h	0.83
Rated LLMF at 8,000 h	0.81
Rated LLMF at 12,000 h	0.79
Rated LLMF at 16,000 h	0.78
Rated LLMF at 20,000 h	0.77

Dimensions & Weight

Overall length	169.00 mm
Length with base excl. base pins/connection	153,00 mm
Diameter	12 mm
Tube diameter	12 mm
Product weight	80.00 g

Temperatures & operating conditions

Ambient temperature range

-5…+40 °C

Lifespan

Service life	13000 h
Rated lamp survival factor at 2,000 h	0.99
Rated lamp survival factor at 4,000 h	0.99
Rated lamp survival factor at 6,000 h	0.99
Rated lamp survival factor at 8,000 h	0.99
Rated lamp survival factor at 12,000 h	0.95
Rated lamp survival factor at 16,000	0.81
Rated lamp survival factor at 20,000 h	0.50
Lifespan B50	20000 h

Additional product data

Base (standard designation)	GX24q-4
Mercury content	2.0 mg
Product remark	For ECG operation only

Capabilities

Dimmable

Yes

Certificates & Standards

Energy efficiency class	G
Energy consumption	44.00 kWh/1000h

Country-specific categorizations

ILCOS	FSMH-42/830-/P/-GX24q-4
Order reference	DULUX T/E 42W/8

Energy labelling regulation data acc EU 2019/2015

Lighting technology used	CFLNI
Non-directional or directional	NDLS
Mains or non-mains	NMLS
Light source cap-type (or other electric interface)	GX24q-4
Connected light source (CLS)	No
Color-tuneable light source	No
Envelope	No
High luminance light source	No
Anti-glare shield	No
Correlated colour temperature type	SINGLE_VALUE
Claim of equivalent power	No
Length	169.00 mm
Height	12 mm
Width	12 mm
Chromaticity coordinate x	0,440
Chromaticity coordinate y	0,403
Beam angle correspondence	SPHERE_360
EPREL ID	546478
Model number	AC34253

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Improved maintenance

Areas of application

Offices, public buildings
Shops
Supermarkets and department stores
Hotels, restaurants
Industrial lighting

Product features

Good color rendering index
Dimmable (3…100 %)
Short and compact pin-base lamp with triple-turn tubes
Single-ended four-pin plug-in GX24q base with shortened base casing

Equipment / Accessories

Suitable for operation on electronic control gear

Safety advice

In case of lamp breakage: www.ledvance.com/brokenlamp

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4050300425641	Folding box 1	45 mm x 48 mm x 173 mm	91.00 g	0.37 dm³
4050300425658	Shipping box 10	240 mm x 102 mm x 190 mm	999.00 g	4.65 dm³

Country-specific information

EAN	SEG number	STK number	EFO number	ELDAS number	AU model number
4050300425641	8330294	4934051	3820497	946189710	OSRDULUXT/E42W/830

13 W/827

13 W/830

13 W/840

18 W/827

18 W/830

18 W/840

26 W/827

26 W/830

26 W/840

32 W/827

32 W/830

32 W/840

32 W/3000 K 100 V GX24q-3

32 W/830 GX24Q

32 W/840 GX24Q

32 W/4000 K 100 V GX24q-3

42 W/827

42 W/830

42 W/840

42 W/830 GX24Q

42 W/3000 K 135 V GX24q-4

42 W/4000 K 135 V GX24q-4

42 W/840 GX24Q
