OSRAM DULUX S/E

Choose your product version

7 W 4000 K 2G7

11 W 4000 K 2G7

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal lamp life time Nominal luminous flux Dimmable
DULUX S/E 7 W 4000 K 2G7 2G7 7 W 10000 h 400 lm No
DULUX S/E 11 W 4000 K 2G7 2G7 11 W 10000 h 900 lm Yes


DULUX S/E 11 W 4000 K 2G7

Product benefits
  • Extremly economical
  • Good quality of light
  • Improved maintenance
  • Low power consumption (7 W, 9 W, 11 W)
  • Long service life
  • Extremely low profile
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 11 W
Construction wattage 11.80 W

Photometrical data

Luminous flux 900 lm
Light color (designation) LUMILUX Cool White
Color temperature 4000 K
Color rendering index Ra 80…90
Light color 840
Rated LLMF at 2,000 h 0.90
Rated LLMF at 4,000 h 0.84
Rated LLMF at 6,000 h 0.80
Rated LLMF at 8,000 h 0.76
Rated lamp efficacy (standard co.) 76 lm/W

Dimensions & Weight

Overall length 212.00 mm
Diameter 12.00 mm
Maximum diameter 11 mm
Product weight 34.00 g

Temperatures & operating conditions

Rated ambient temp.w.max.luminous 25.0 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.95
Rated lamp survival factor at 8,000 h 0.81
Operation mode LLMF/LSF HF

Additional product data

Base (standard designation) 2G7
Mercury content 1.3 mg

Capabilities

Suitable for indoor Yes
Dimmable Yes

Certificates & Standards

Energy efficiency class A
Energy consumption 12.98 kWh/1000h

Country-specific categorizations

Order reference DULUX S/E 11W/8

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) 2G7
Length 214.00 mm
Height 12.00 mm
Width 12.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Extremly economical
  • Good quality of light
  • Improved maintenance
  • Low power consumption (7 W, 9 W, 11 W)
  • Long service life
  • Extremely low profile
Areas of application
  • Offices, public buildings
  • Shops
  • Supermarkets and department stores
  • Hotels, restaurants
Product features
  • Short and compact pin-base lamps with single-turn tubes
  • Single-ended four-pin plug-in 2G7 base
  • Operates on battery, solar and AC power with suitable electronic control gear
  • Not dimmable
Equipment / Accessories
  • Suitable for operation on electronic control gear
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321583758 Folding box
1		 38 mm x 22 mm x 227 mm 44.00 g 0.19 dm³
4008321583765 Shipping box
50		 240 mm x 205 mm x 244 mm 2445.00 g 12.00 dm³

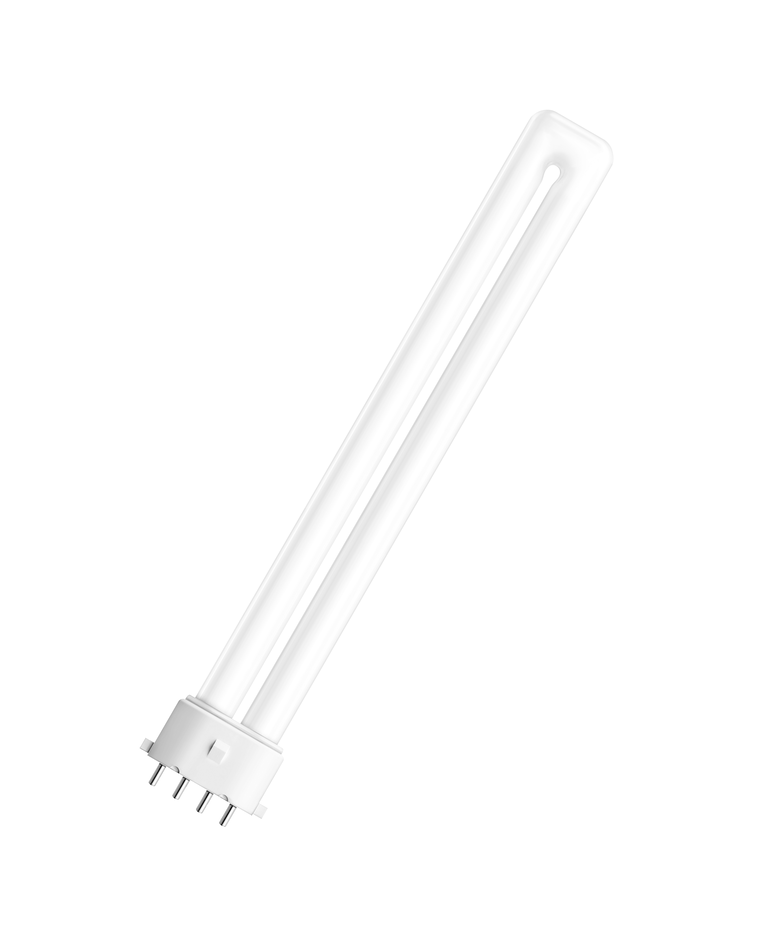

Product image: white background, diagonal
DULUX S/E 11W 2G7 TIF (8.02 MB)

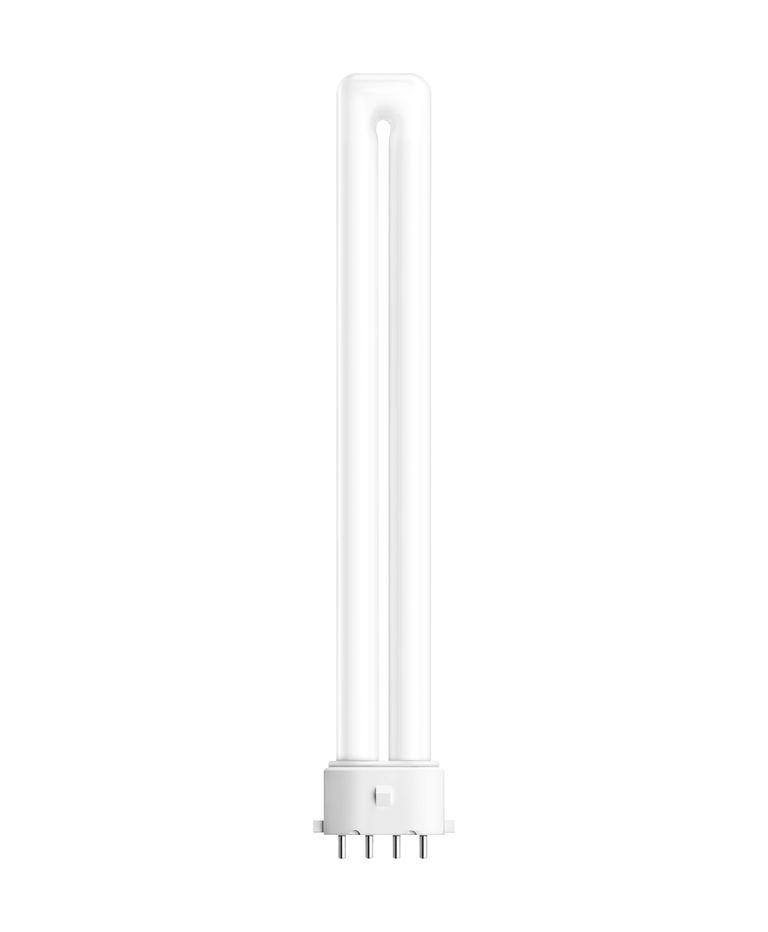

Product image: white background, upright
DULUX S/E 11W 2G7 TIF (4.11 MB)
Product line drawing with letters
319567_OSRAM DULUX S/E SVG (6.35 KB)
Product line drawing, front, no dimensions
39479_DULUX S/E SVG (4.76 KB)
