LED VALUE PAR16

Choose your product version

50 24 ° 4.5 W/2700 K GU10

50 36 ° 4.5 W/2700 K GU10

50 36 ° 4.5 W/4000 K GU10

50 36 ° 4.5 W/6500 K GU10

80 36 ° 7 W/2700 K GU10

80 36 ° 7 W/2700 K GU10

7 W/3000 K GU10

7 W/3000 K GU10

80 36 ° 7 W/4000 K GU10

80 36 ° 7 W/6500 K GU10

7 W/6500 K GU10

7 W/6500 K GU10

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE PAR 16 50 24 ° 4.5 W/2700 K GU10 GU10 4.5 W 220…240 V 15000 h 440 lm 50 W 24 ° No
LED VALUE PAR 16 50 36 ° 4.5 W/2700 K GU10 GU10 4.5 W 220…240 V 15000 h 440 lm 50 W 36 ° No
LED VALUE PAR 16 50 36 ° 4.5 W/4000 K GU10 GU10 4.5 W 220…240 V 15000 h 440 lm 50 W 36 ° No
LED VALUE PAR 16 50 36 ° 4.5 W/6500 K GU10 GU10 4.5 W 220…240 V 15000 h 440 lm 50 W 36 ° No
VALUE PAR 16 80 36 ° 7 W/2700 K GU10 GU10 7 W 220…240 V 15000 h 560 lm 80 W 36 ° No
VALUE PAR 16 80 36 ° 7 W/2700 K GU10 GU10 7 W 220…240 V 15000 h 650 lm 80 W 36 ° No
LED VALUE PAR 16 7 W/3000 K GU10 GU10 7 W 220…240 V 15000 h 650 lm
LED VALUE PAR 16 7 W/3000 K GU10 GU10 7 W 220…240 V 15000 h 650 lm
VALUE PAR 16 80 36 ° 7 W/4000 K GU10 GU10 7 W 220…240 V 15000 h 650 lm 80 W 36 ° No
VALUE PAR 16 80 36 ° 7 W/6500 K GU10 GU10 7 W 220…240 V 15000 h 650 lm 80 W 36 ° No
LED VALUE PAR 16 7 W/6500 K GU10 GU10 7 W 220…240 V 15000 h 650 lm
LED VALUE PAR 16 7 W/6500 K GU10 GU10 7 W 220…240 V 15000 h 650 lm


LED VALUE PAR 16 7 W/3000 K GU10

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps due to compact full glass design and single optic
  • Clear cast shadows for brilliant accent light
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Energy savings of up to 91 % (compared to halogen lamps)
  • High color consistency thanks to narrow binning
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Nominal current 40 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz

Photometrical data

Luminous flux 650 lm
Luminous efficacy 92 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830

Dimensions & Weight

Overall length 52.00 mm
Diameter 50.00 mm
Product weight 39.8 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Additional product data

Base (standard designation) GU10
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Certificates & Standards

Type of protection IP20
Standards CB, EMC, RoHS

Country-specific categorizations

Order reference LVPR168060 7W/8

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU10
Length 52.00 mm
Height 50.00 mm
Width 50.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps due to compact full glass design and single optic
  • Clear cast shadows for brilliant accent light
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Energy savings of up to 91 % (compared to halogen lamps)
  • High color consistency thanks to narrow binning
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Hospitality
  • Restaurants
  • Residential interiors
  • Museums, art galleries
Product features
  • Lamp made of glass
  • High color consistency: < 6 SDCM
  • Input voltage: 220…240 VAC
  • Lifetime up to 15,000 h
  • Not dimmable
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075587977 Folding box
1		 54 mm x 54 mm x 93 mm 59.80 g 0.27 dm³
4099854262111 Shipping box
10		 282 mm x 118 mm x 108 mm 726.00 g 3.59 dm³
4058075587984 Shipping box
10		 436 mm x 165 mm x 101 mm 703.00 g 7.27 dm³

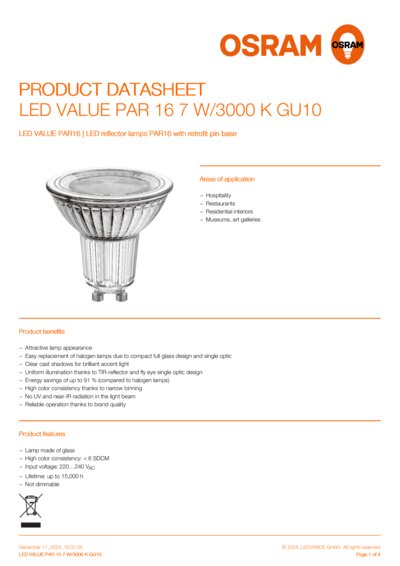

Product datasheet -> old version of product
LEDVALUEPAR167W3000KGU 10en PDF (679.16 KB)
Product image: white background, upright
LPPAR168060 7.5W 230V GU10 JPG (2.1 MB)
Product line drawing with numbers
LPPAR168060 7.5W 230V GU10 SVG (4.24 KB)
