LED VALUE CLASSIC B

Choose your product version

2.5 W/2700 K E14

25 3.3 W/2700 K E14

40 4.9 W/2700 K B22d

4.7 W/2700 K E14

40 4.9 W/2700 K E14

4.7 W/2700 K E14

40 4.9 W/2700 K E14

4.7 W/2700 K E27

40 4.9 W/2700 K E27

4.9 W/6500 K B22d

40 4.9 W/6500 K E14

4.7 W/6500 K E14

5 W/3000 K E14 GEN2

5 W/3000 K E14 GEN2

5 W/6500 K E14 GEN2

5 W/6500 K E14 GEN2

60 7 W/2700 K E14

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS B 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 220 ° No
LED VALUE CLAS B 25 3.3 W/2700 K E14 E14 3.3 W 220…240 V 15000 h 250 lm 25 W 220 ° No
LED VALUE CLAS B 40 4.9 W/2700 K B22d B22d 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS B 4.7 W/2700 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS B 40 4.9 W/2700 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS B 4.7 W/2700 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 220 ° No
LED VALUE CLAS B 40 4.9 W/2700 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS B 4.7 W/2700 K E27 E27 4.7 W 220…240 V 15000 h 470 lm 40 W 180 ° No
LED VALUE CLAS B 40 4.9 W/2700 K E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS B 4.9 W/6500 K B22d B22d 4.9 W 220…240 V 15000 h 470 lm 180 ° No
LED VALUE CLAS B 40 4.9 W/6500 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS B 4.7 W/6500 K E14 E14 4.7 W 220…240 V 15000 h 470 lm 40 W 220 ° No
LED VALUE CLAS B 5 W/3000 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No
LED VALUE CLAS B 5 W/3000 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 280 ° No
LED VALUE CLAS B 5 W/6500 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No
LED VALUE CLAS B 5 W/6500 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 280 ° No
LED VALUE CLAS B 60 7 W/2700 K E14 E14 7 W 220…240 V 15000 h 806 lm 60 W 200 ° No


LED VALUE CLAS B 4.9 W/6500 K B22d

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Simple direct replacement for conventional incandescent lamps
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.9 W
Construction wattage 4.90 W
Nominal voltage 220…240 V
Nominal current 39 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 470 lm
Luminous efficacy 95 lm/W
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 180 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 101.50 mm
Diameter 37.00 mm
Product weight 20.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg

Capabilities

Dimmable No

Country-specific categorizations

Order reference LVCLB40 4,9W/86

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Length 101.50 mm
Height 37.00 mm
Width 37.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Simple direct replacement for conventional incandescent lamps
  • Instant 100 % light, no warm-up time
Areas of application
  • General illumination
  • Domestic applications
  • Chandeliers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Not dimmable
  • Good color rendering CRI ≥ 80 and color stability throughout the life of the lamp
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075625112 Folding box
1		 38 mm x 38 mm x 102 mm 26.00 g 0.15 dm³
4058075625129 Shipping box
10		 198 mm x 84 mm x 113 mm 319.00 g 1.88 dm³
4099854084560 Shipping box
10		 206 mm x 91 mm x 127 mm 335.00 g 2.38 dm³
Product image: white background, diagonal
CLAS B 40 FR 5.5 W B22 D JPG (1.23 MB)
Product image: white background, upright
CLAS B 40 FR 5.5 W B22 D JPG (1.15 MB)
Product line drawing, front, no dimensions
CLAS B 40 FR 5.5 W B22 D SVG (6.29 KB)

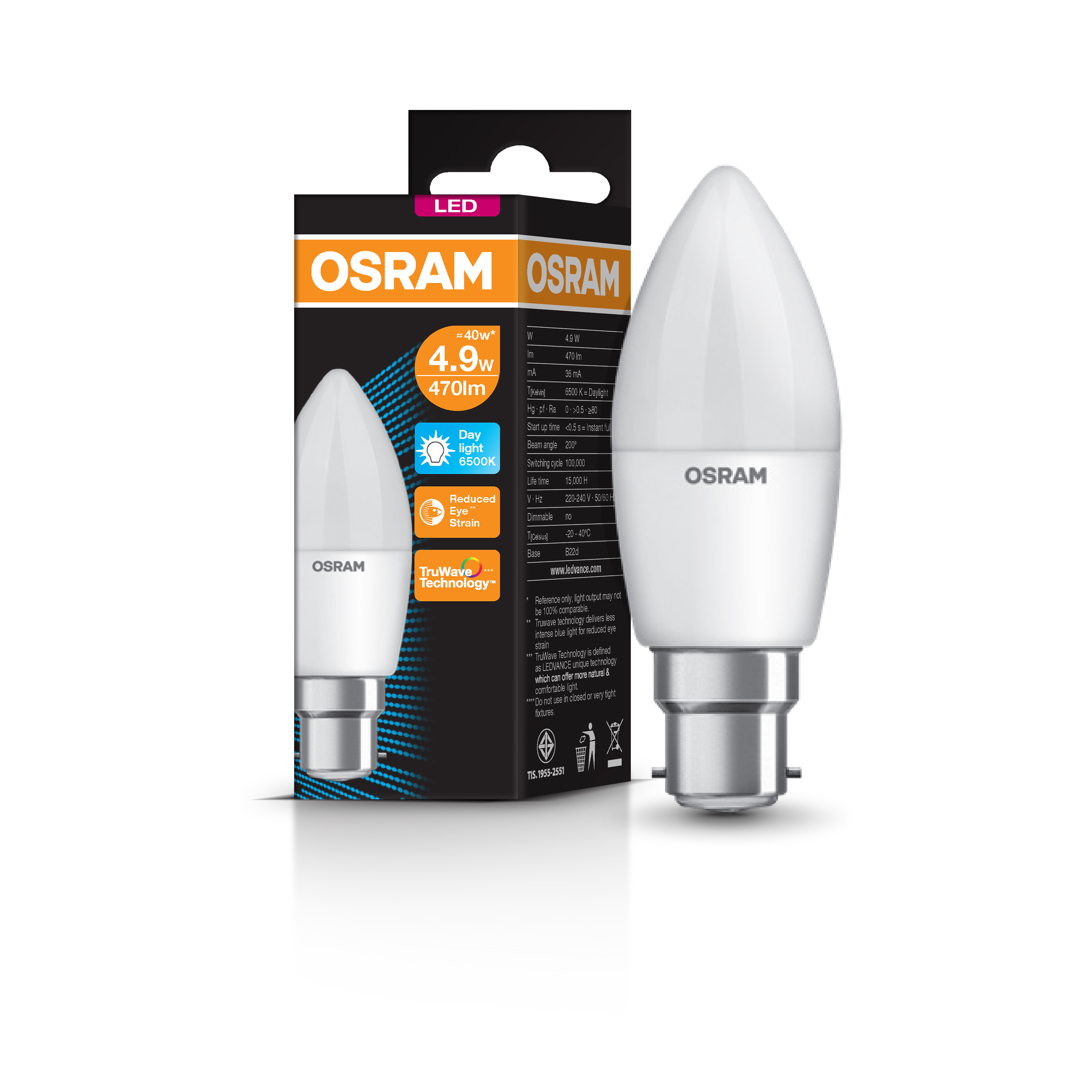

Combo Shot = Product Beauty Shot + Packaging Image
LED VALUE CLB40 4.9W/8 65 FR B22D JPG (1.59 MB)
