Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| Downlight Slim 85mm 4.5W 3000K | 4.50 W | 15000 | 110 ° | 240 lm | No |
| Downlight Slim 85mm 4.5W 4000K | 4.50 W | 15000 | 110 ° | 240 lm | No |
| Downlight Slim 85mm 4.5W 6500K | 4.50 W | 15000 | 110 ° | 240 lm | No |
| Downlight Slim 120mm 8W 3000K | 8.00 W | 15000 | 110 ° | 550 lm | No |
| Downlight Slim 120mm 8W 4000K | 8.00 W | 15000 | 110 ° | 550 lm | No |
| Downlight Slim 120mm 8W 6500K | 8.00 W | 15000 | 110 ° | 550 lm | No |
| Downlight Slim 225mm 22W 3000K | 22.00 W | 15000 | 110 ° | 2000 lm | No |
| Downlight Slim 225mm 22W 4000K | 22.00 W | 15000 | 110 ° | 2000 lm | No |
| Downlight Slim 225mm 22W 6500K | 22.00 W | 15000 | 110 ° | 2000 lm | No |

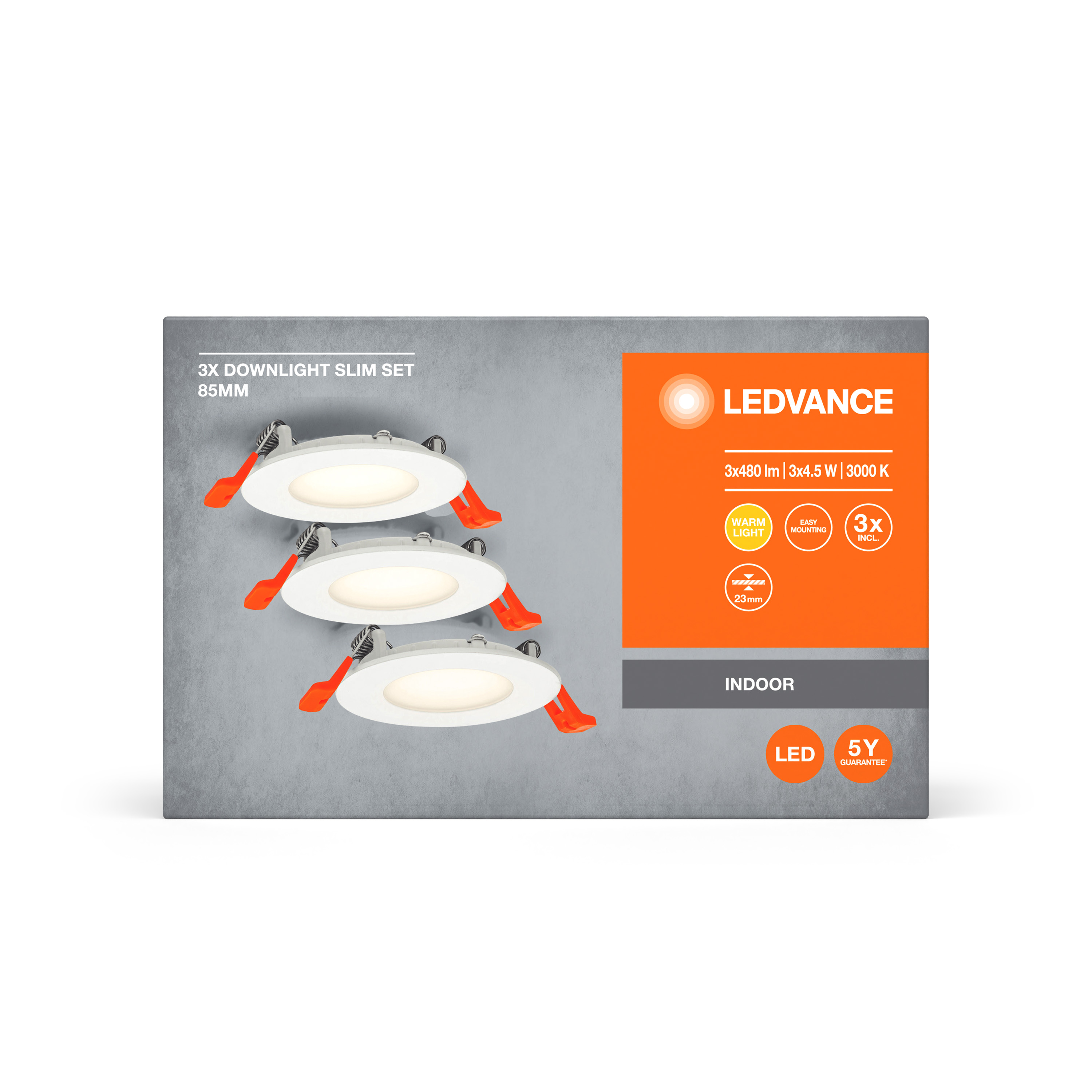

| Downlight Slim Set 3 x 85mm 3000K | 4.50 W | 15000 | 110 ° | 720 lm | No |
| Downlight Slim Set 3 x 120mm 3000K | 8.00 W | 15000 | 110 ° | 550 lm | No |
| Nominal wattage | 4.50 W |
| Nominal voltage | 220…240 V |
| Nominal current | 60.000 mA |
| Power factor λ | > 0.4 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 720 lm |
| Total luminous flux of contained light sources | 480 lm |
| Luminous efficacy | 56 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
| Diameter | 85.00 mm |
| Height | 23.00 mm |
| Product weight | 50.00 g |
| Product color | White |
| Housing color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Mounting diameter | 72,0 mm |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

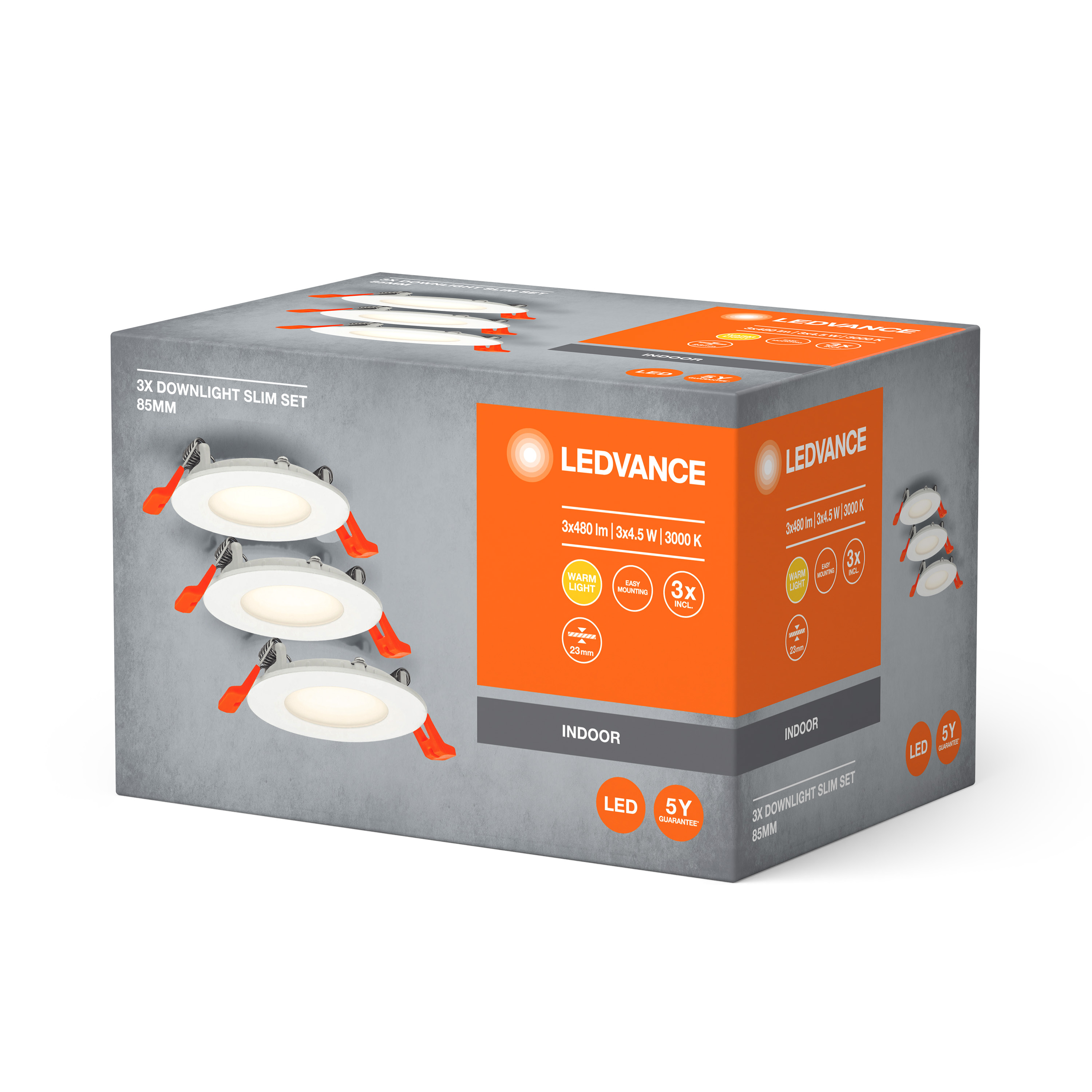

| 4058075629387 | Folding box 3 |
136 mm x 161 mm x 103 mm | 252.00 g | 2.26 dm³ |
| 4058075629394 | Shipping box 18 |
355 mm x 182 mm x 247 mm | 1924.00 g | 15.96 dm³ |
| EAN | ELDAS number |
|---|---|
| 4058075629387 | 941469460 |
