Product description

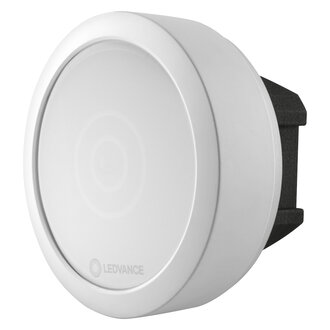

BIOLUX HCL CONTROL UNIT
BIOLUX HCL PL 600 ZB 43W 2700-6500K
BIOLUX HCL DL DN150 ZB 20W 2700-6500K

BIOLUX HCL CONTROL UNIT

Product benefits

Easy and quick installation of the BIOLUX HCL-lighting system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL-luminaire(s) / BIOLUX HCL LED strips / VIVARES occupancy sensor) thanks to wireless Zigbee 3.0 technology
Automated commissioning and setup by LEDVANCE BIOLUX app, no programming, registration or cloud required
Intuitive control of BIOLUX HCL luminaires - BIOLUX HCL LED strips via control unit
Easy selection of the appropriate lighting modes for different working situations
Can support working with more concentration
5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s) - BIOLUX HCL LED strips and VIVARES occupancy sensor)

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	1.00 W
Nominal voltage	220…240 V
Type of current	AC
Mains frequency	50…60 Hz

Luminaire control gear data

Low flicker

Yes

Dimensions & Weight

Width	84,0 mm
Height	54.00 mm
Diameter	84,0 mm
Product weight	226.00 g

Colors & materials

Product color	White
Body material	Polycarbonate\|Methacrylate butadiene styrene\|Polymethylmethacrylate
Cover material	Polymethylmethacrylate (PMMA)

Temperatures & operating conditions

Ambient temperature range	0…+40 °C
Temperature range in operation	0…+40 °C

Additional product data

Mounting location	Wall
Low flicker	Yes

Capabilities

Dimmable

Certificates & Standards

Standards	CE
Type of protection	IP20

Product description

Product benefits

Easy and quick installation of the BIOLUX HCL-lighting system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL-luminaire(s) / BIOLUX HCL LED strips / VIVARES occupancy sensor) thanks to wireless Zigbee 3.0 technology
Automated commissioning and setup by LEDVANCE BIOLUX app, no programming, registration or cloud required
Intuitive control of BIOLUX HCL luminaires - BIOLUX HCL LED strips via control unit
Easy selection of the appropriate lighting modes for different working situations
Can support working with more concentration
5 years BIOLUX HCL system guarantee when operated as part of a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s) - BIOLUX HCL LED strips and VIVARES occupancy sensor)

Areas of application

Lighting solution for up to 48 BIOLUX HCL products (luminaires/ LED strips / VIVARES occupancy sensors)
Meeting and conference rooms
Hotel and office rooms with little daylight
Nursery and elderly homes
Hospitals

Product features

LEDVANCE designed high-value product
6 preprogrammed lighting modes selectable: RELAX, CREATE, NATURAL, FOCUS, BOOST and ON/OFF
Selected lighting mode is shown on the display of the control unit
Intuitive timetable mode for individual date and time settings of the 6 lighting modes in the BIOLUX app for automated course
Switch on/off the lights with the control unit and optional VIVARES occupancy sensor
Implemented FAQ and installation guide in the BIOLUX app for quick support during the on-site installation
Installation in standard flush-mounted boxes like used for lighting switches and sockets

Equipment / Accessories

LEDVANCE BIOLUX app required for commissioning and additional functions time table / sensor configuration / NATURAL test (available for Android and iOS)

Legal advice

The use of the LEDVANCE BIOLUX app is exclusively subject to the LEDVANCE BIOLUX app Terms of Use, which are displayed during installation of the app and are available in the app

Safety advice

Important operating notice and legal disclaimer: This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL CONTROL UNIT in combination with BIOLUX HCL luminaire(s), LED strips and VIVARES occupancy sensor including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL system products.
Important operating notice: The BIOLUX HCL CONTROL UNIT may be rotated clockwise or counterclockwise a maximum of 7,200° (equivalent to 20 complete 360° rotations) per day in total (adding together all operating procedures).

References / Links

For Guarantee see www.ledvance.com/guarantee
For reference projects see https://www.ledvance.com/professional/lighting-solutions

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075308657	Folding box 1	54 mm x 205 mm x 104 mm	288.00 g	1.15 dm³
4058075308664	Shipping box 2	224 mm x 124 mm x 144 mm	678.00 g	4.00 dm³

Country-specific information

EAN	SEG number	STK number	EFO number	ELDAS number
4058075308657	7985300	2628006	1407931	919000100
