Choose your product version

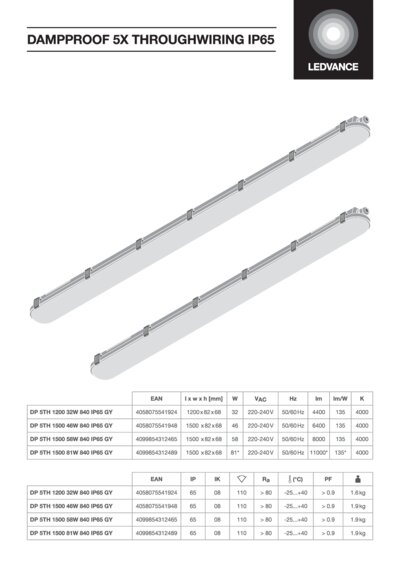

| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| DP 5TH 1500 58W 840 IP65 GY | 58.00 W | 100000 | 110 ° | 8000 lm | No |
| DP 5TH 1500 81W 840 IP65 GY | 81 W / 69 W / 57 W / 46 W | 100000 | 110 ° | 11000 lm / 9600 lm / 8200 lm / 6600 lm | No |
| Nominal wattage | 58.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 280.000 mA |
| Inrush current | 15.8 A |
| Inrush current time Th50 | 348 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 26 |
| Max. number of luminaires per miniature circuit breaker C10 | 23 |
| Max. number of luminaires per miniature circuit breaker C16 | 38 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 8000 lm |
| Luminous efficacy | 135 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤ 1 |
| Stroboscope effect metric (SVM) | ≤ 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |

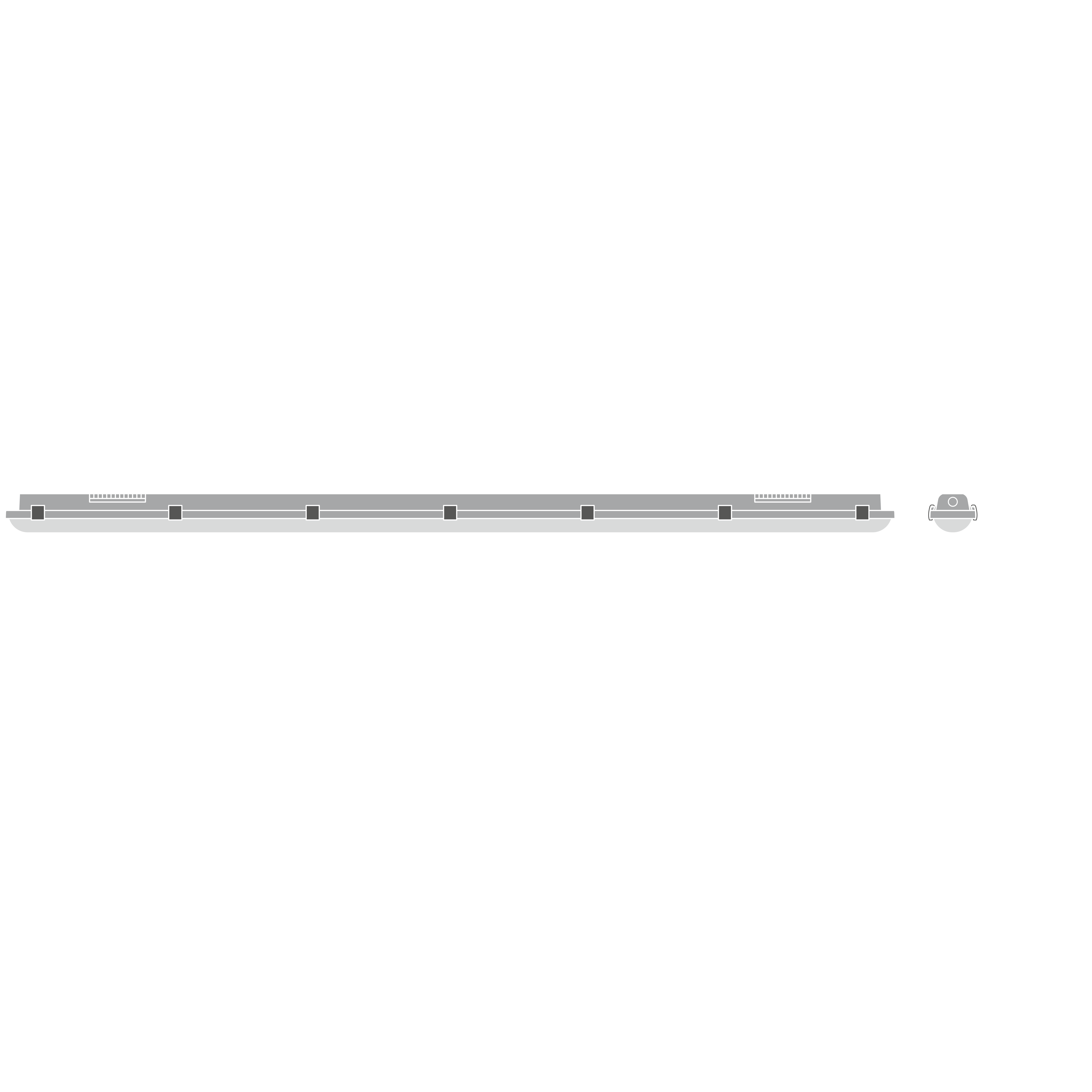

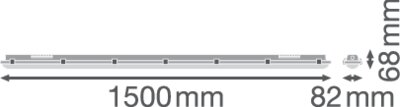

| Length | 1500.00 mm |
| Height | 68.00 mm |
| Width | 82.00 mm |
| Product weight | 1904.5 g |
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -25…+40 °C |
| Temperature range at storage | -25…+80 °C |
| Type of connection | Screwless terminal, 5-Pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |

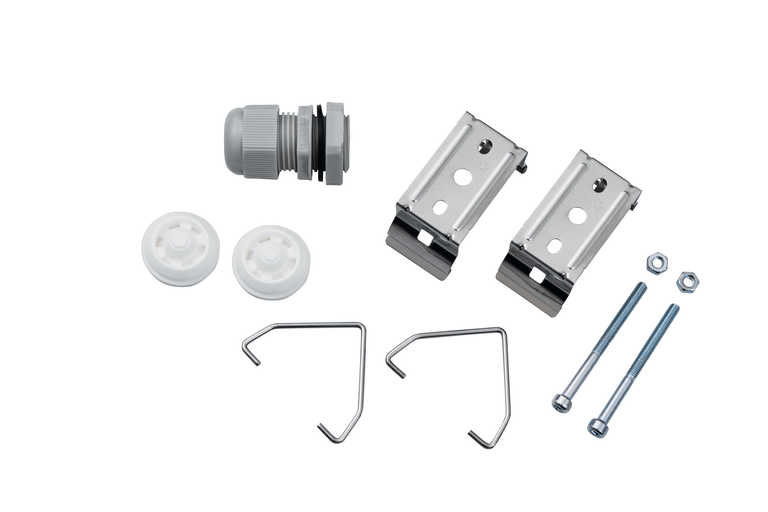

| Mounting type | Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 34000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 490 mA |
| ECG - Output ripple current | < 5 % |

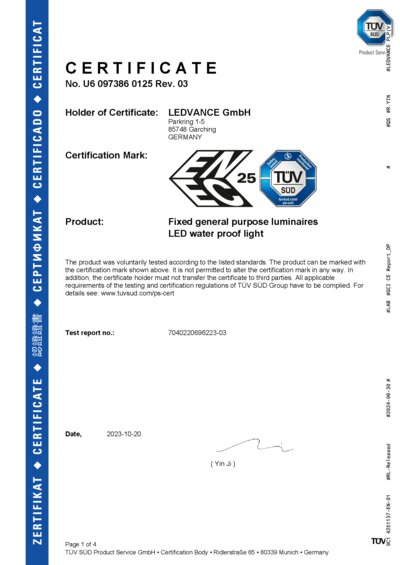

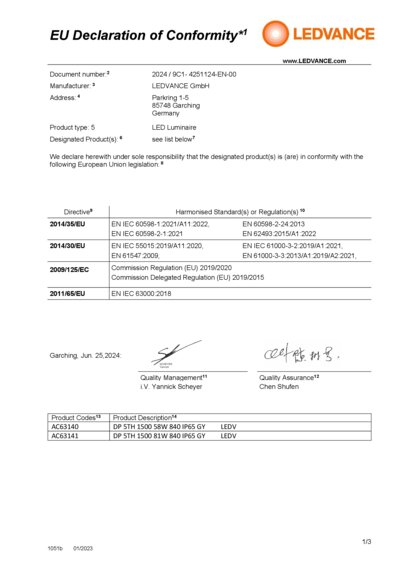

| Standards | CE, CB, ENEC, TÜV SÜD, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |

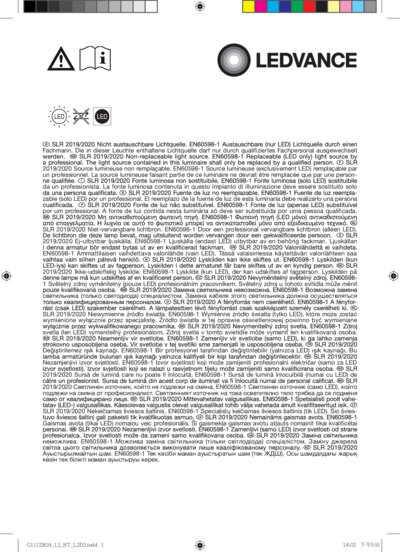

| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

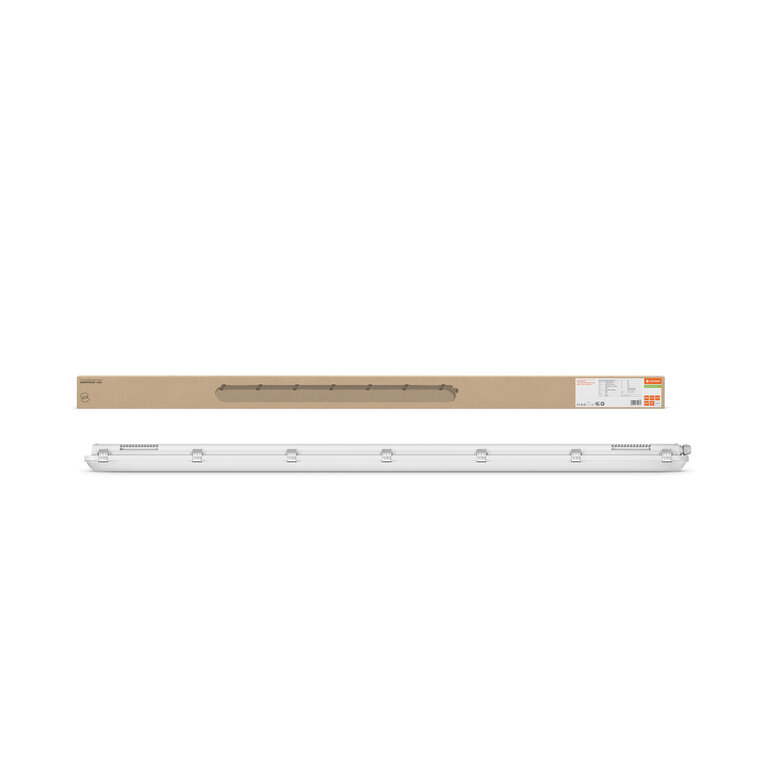

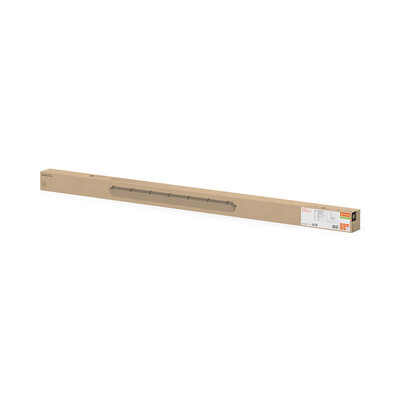

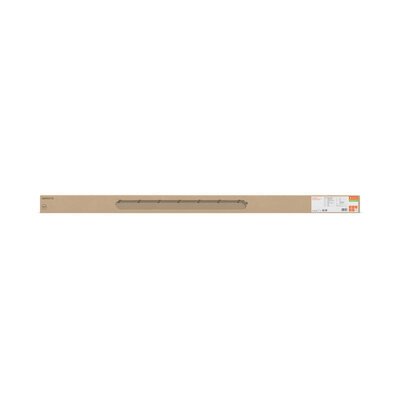

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854312465 | Folding box 1 |
1,512 mm x 87 mm x 74 mm | 1939.50 g | 9.73 dm³ |
| 4099854312472 | Shipping box 6 |
1,532 mm x 191 mm x 245 mm | 12868.00 g | 71.69 dm³ |
| EAN | SEG number | STK number | EFO number |
|---|---|---|---|
| 4099854312465 | 7220075 | 4325354 | 3378155 |
