Choose your product version

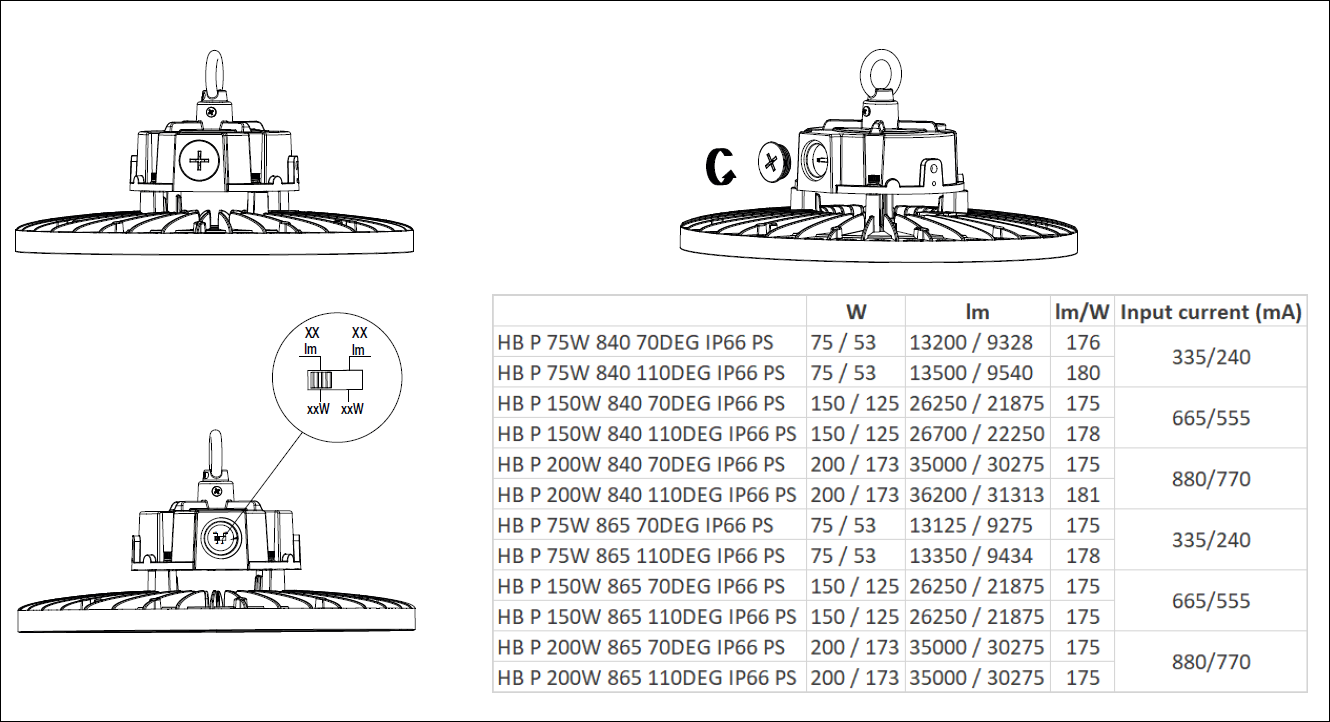

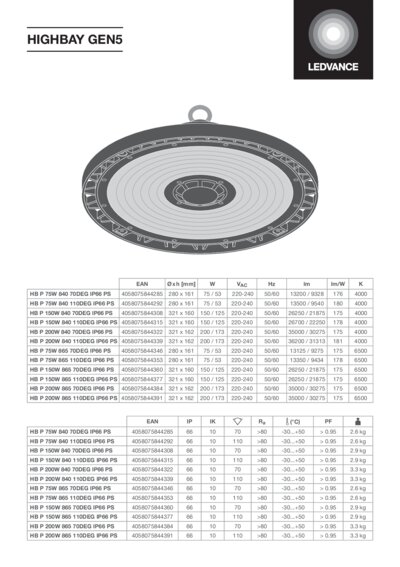

| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

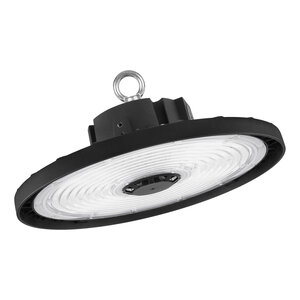

| HB P 75W 865 70DEG IP66 PS | 75 W / 53 W | 200000 | 70 ° | 13125 lm / 9275 lm | Yes |
| HB P 75W 840 70DEG IP66 PS | 75 W / 53 W | 200000 | 70 ° | 13200 lm / 9328 lm | Yes |
| HB P 75W 865 110DEG IP66 PS | 75 W / 53 W | 200000 | 110 ° | 13350 lm / 9434 lm | Yes |
| HB P 75W 840 110DEG IP66 PS | 75 W / 53 W | 200000 | 110 ° | 13500 lm / 9540 lm | Yes |
| HB P 150W 840 70DEG IP66 PS | 150 W / 125 W | 200000 | 70 ° | 26250 lm / 21875 lm | Yes |
| HB P 150W 865 70DEG IP66 PS | 150 W / 125 W | 200000 | 70 ° | 26250 lm / 21875 lm | Yes |
| HB P 150W 865 110DEG IP66 PS | 150 W / 125 W | 200000 | 110 ° | 26250 lm / 21875 lm | Yes |
| HB P 150W 840 110DEG IP66 PS | 150 W / 125 W | 200000 | 110 ° | 26700 lm / 22250 lm | Yes |
| HB P 200W 840 70DEG IP66 PS | 200 W / 173 W | 200000 | 70 ° | 35000 lm / 30275 lm | Yes |
| HB P 200W 865 110DEG IP66 PS | 200 W / 173 W | 200000 | 110 ° | 35000 lm / 30275 lm | Yes |
| HB P 200W 865 70DEG IP66 PS | 200 W / 173 W | 200000 | 70 ° | 35000 lm / 30275 lm | Yes |
| HB P 200W 840 110DEG IP66 PS | 200 W / 173 W | 200000 | 110 ° | 36200 lm / 31313 lm | Yes |
| Nominal wattage | 75 W / 53 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |

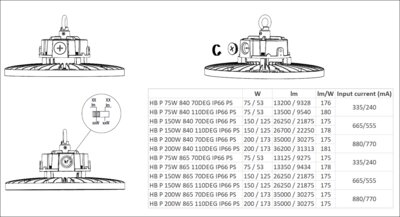

| Nominal current | 335…240 mA |
| Inrush current | 14 A |
| Inrush current time Th50 | 324 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 15 |
| Max. number of luminaires per miniature circuit breaker C10 | 12 |
| Max. number of luminaires per miniature circuit breaker C16 | 19 |
| Power factor λ | > 0.95 |
| Total harmonic distortion | < 15 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 13125 lm / 9275 lm |
| Luminous efficacy | 175 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤4 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 70 ° |
| Diameter | 280.00 mm |
| Height | 161.00 mm |
| Product weight | 2600.00 g |
| Cable length | 1500 mm |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | Yes |

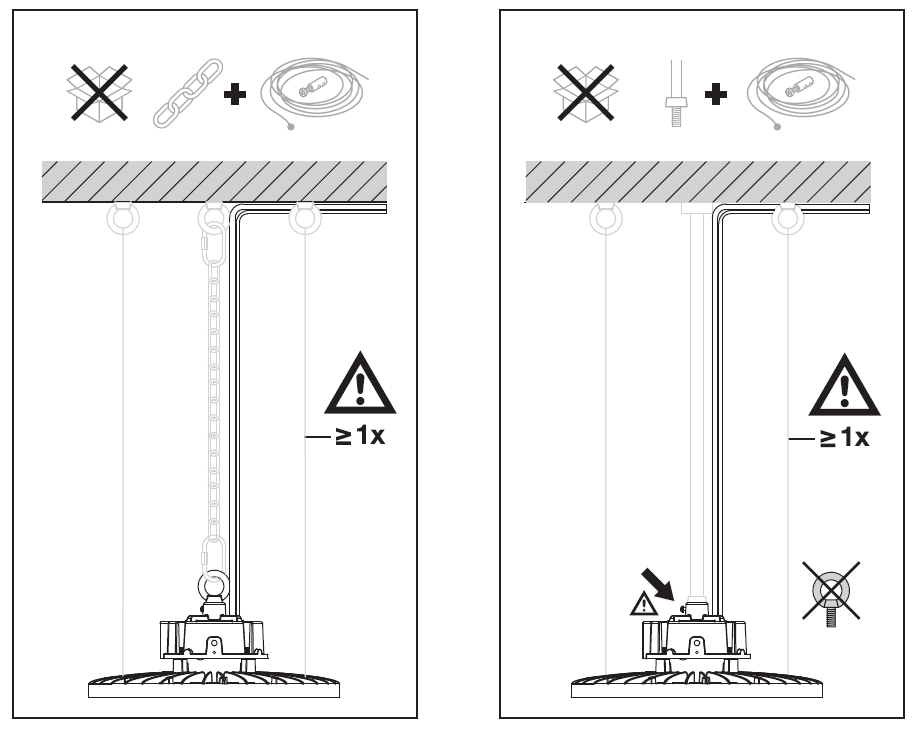

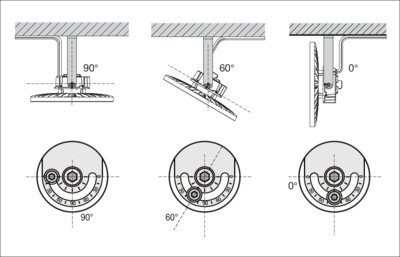

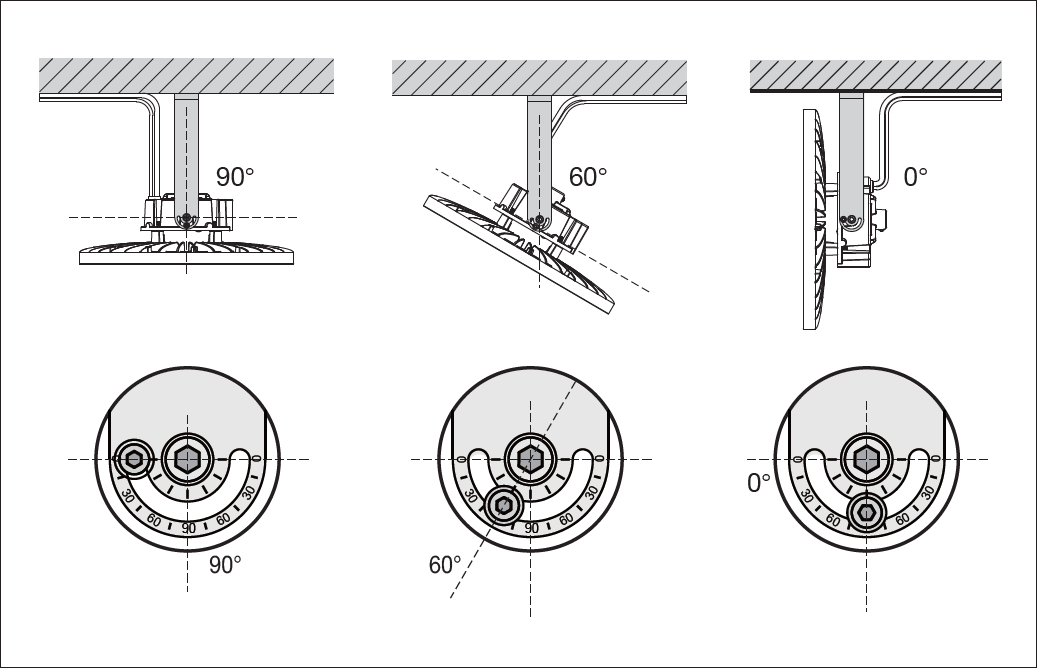

| Mounting type | Surface/Suspended |
| Mounting location | Ceiling, Wall |

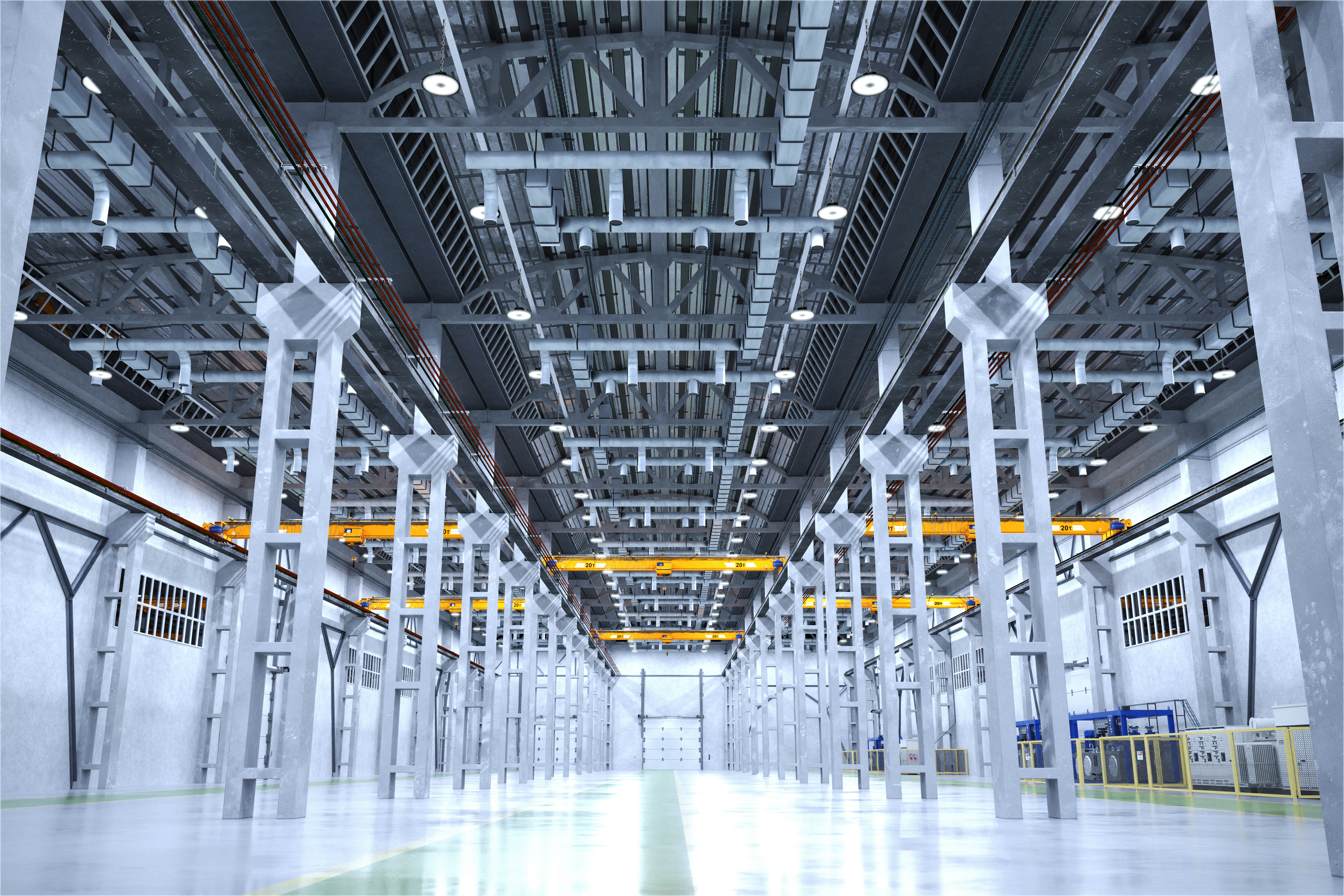

| Application environment | Indoor |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 120000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Lifespan L90/B10 at 25 °C | 49000 h |
| Number of switching cycles | 200000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 305 mA |
| ECG - Output ripple current | < 5 % |

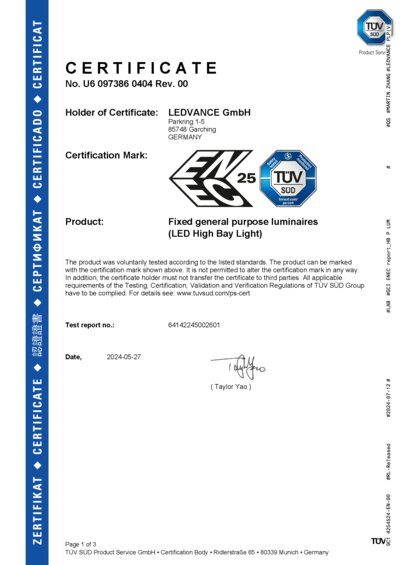

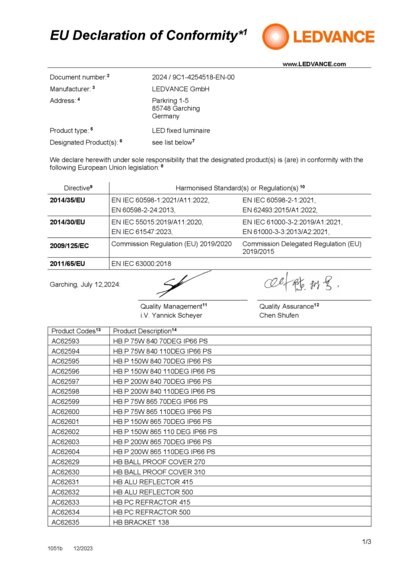

| Standards | CE, UKCA, EAC, CB, ENEC, TÜV SÜD, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |

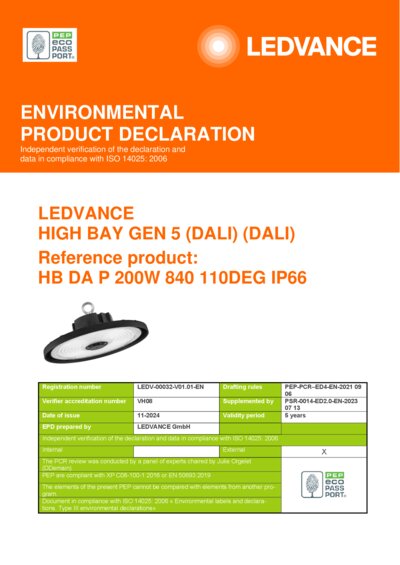

| EPD | LEDV-00032-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
| Added function | MULTI SELECT |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

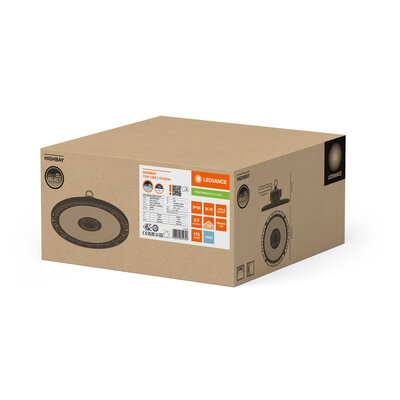

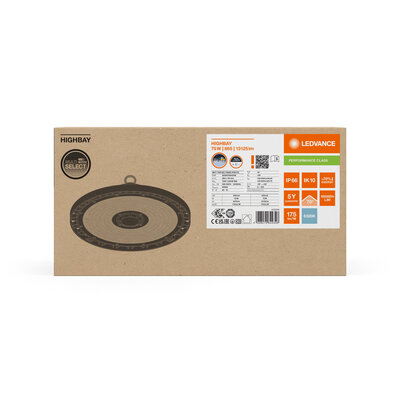

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075844346 | Shipping box 1 |
338 mm x 328 mm x 171 mm | 3208.00 g | 18.96 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
HB BRACKET 138 | 4058075844643 |
|

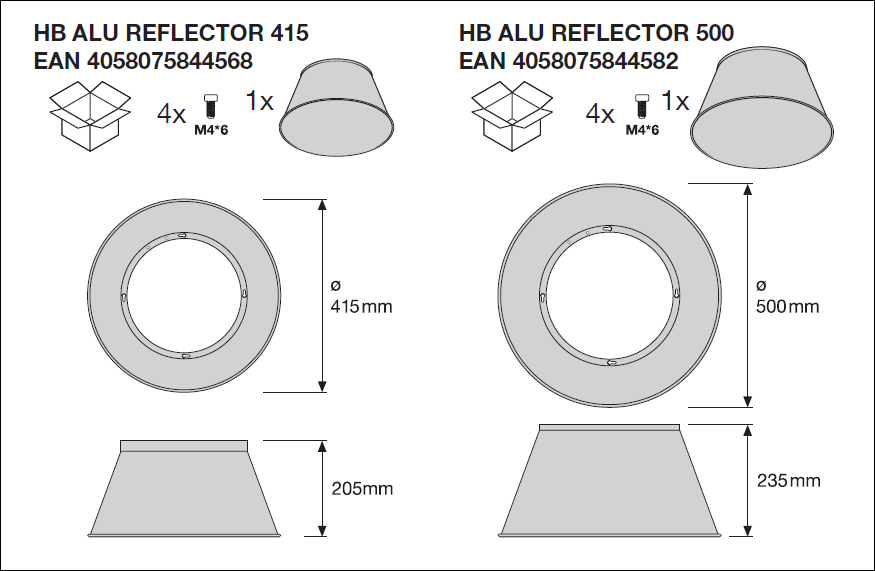

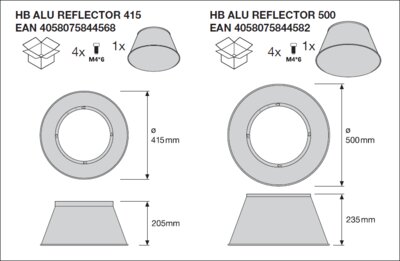

HB ALU REFLECTOR 415 | 4058075844568 |
|

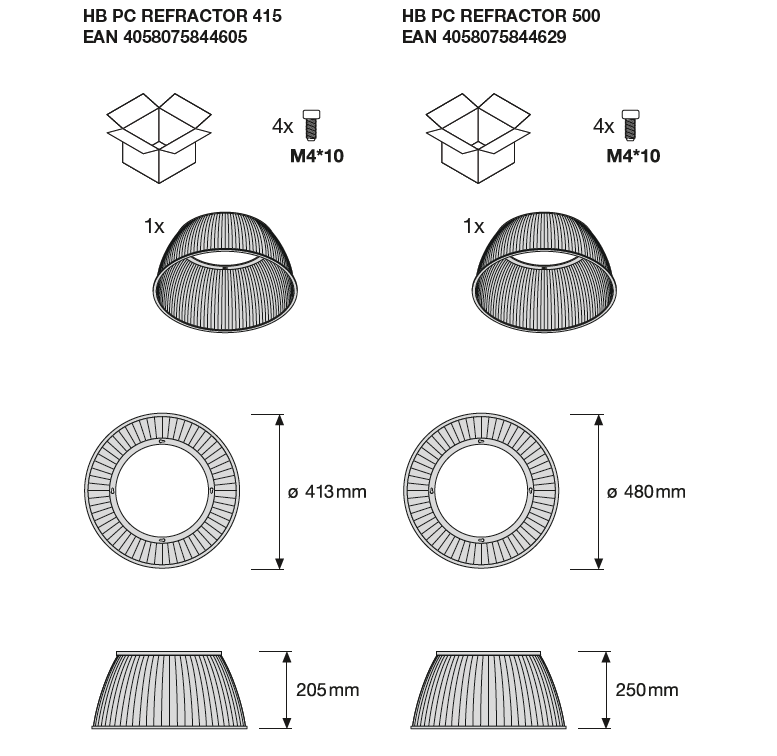

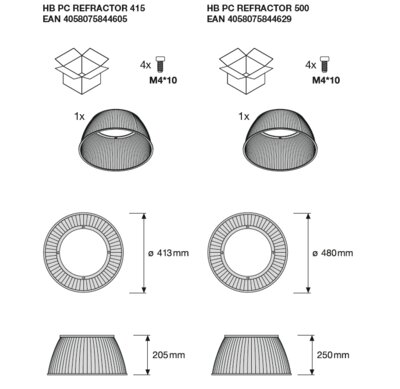

HB PC REFRACTOR 415 | 4058075844605 |
| EAN | SEG number | STK number |
|---|---|---|
| 4058075844346 | 7220079 | 4325325 |
