LUMILUX T5 HE

Choose your product version

Phase out

14 W/827

Phase out

14 W/830

Phase out

14 W/830

Phase out

14 W/840

14 W/865

Phase out

14 W/865

Phase out

14 W/865

Phase out

21 W/827

Phase out

21 W/830

Phase out

21 W/830

Phase out

21 W/840

Phase out

21 W/865

Phase out

28 W/827

Phase out

28 W/830

28 W/840

Phase out

28 W/840

28 W/865

28 W/865

Phase out

28 W/865

Phase out

35 W/827

Phase out

35 W/830

35 W/840

Phase out

35 W/840

35 W/865

Phase out

35 W/865

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal lamp life time Nominal luminous flux Dimmable
HE 14 W/827 G5 14 W 86 V 24000 h 1350 lm Yes
HE 14 W/830 G5 14 W 86 V 24000 h 1350 lm Yes
HE 14 W/830 G5 14 W 86 V 24000 h 1350 lm Yes
HE 14 W/840 G5 14 W 86 V 24000 h 1350 lm Yes
HE 14 W/865 G5 14 W 220 V 24000 h 1100 lm
HE 14 W/865 G5 14 W 86 V 24000 h 1300 lm Yes
HE 14 W/865 G5 14 W 86 V 24000 h 1300 lm Yes
HE 21 W/827 G5 21 W 126 V 24000 h 2000 lm Yes
HE 21 W/830 G5 21 W 126 V 24000 h 2000 lm Yes
HE 21 W/830 G5 21 W 126 V 24000 h 2000 lm Yes
HE 21 W/840 G5 21 W 126 V 24000 h 2000 lm Yes
HE 21 W/865 G5 21 W 126 V 24000 h 1925 lm Yes
HE 28 W/827 G5 28 W 166 V 24000 h 2800 lm Yes
HE 28 W/830 G5 28 W 166 V 24000 h 2800 lm Yes
HE 28 W/840 G5 28 W 220 V 24000 h 2600 lm
HE 28 W/840 G5 28 W 166 V 24000 h 2800 lm Yes
HE 28 W/865 G5 28 W 220 V 24000 h 2400 lm Yes
HE 28 W/865 G5 28 W 220 V 24000 h 2400 lm
HE 28 W/865 G5 28 W 166 V 24000 h 2700 lm Yes
HE 35 W/827 G5 35 W 220 V 24000 h 3550 lm Yes
HE 35 W/830 G5 35 W 220 V 24000 h 3550 lm Yes
HE 35 W/840 G5 35 W 220 V 24000 h 3320 lm
HE 35 W/840 G5 35 W 220 V 24000 h 3550 lm Yes
HE 35 W/865 G5 35 W 24000 h 3050 lm Yes
HE 35 W/865 G5 35 W 220 V 24000 h 3400 lm Yes


HE 35 W/865

Product benefits
  • Up to 20 % more economical than LUMILUX® T8
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 35 W
Construction wattage 35.50 W
Rated lamp efficacy (HF data 25 °C) 86

Photometrical data

Luminous flux 3050 lm
Luminous efficacy 86 lm/W
Luminous flux at 25 °C 3050 lm
Luminous flux at 35 °C 3500 lm
Light color (designation) LUMILUX Cool Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Rated LLMF at 2,000 h 0.95
Rated LLMF at 4,000 h 0.93
Rated LLMF at 6,000 h 0.92
Rated LLMF at 8,000 h 0.90
Rated LLMF at 12,000 h 0.90
Rated LLMF at 16,000 h 0.90
Rated LLMF at 20,000 h 0.89

Dimensions & Weight

Overall length 1449.00 mm
Length with base excl. base pins/connection 1449 mm
Diameter 16,0 mm
Tube diameter 16 mm
Maximum diameter 16 mm
Product weight 115.00 g

Temperatures & operating conditions

Rated ambient temp.w.max.luminous 35.0 °C

Lifespan

Service life 19000 h 1)
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.99
Rated lamp survival factor at 8,000 h 0.99
Rated lamp survival factor at 12,000 h 0.99
Rated lamp survival factor at 16,000 0.97
Rated lamp survival factor at 20,000 h 0.85
Operation mode LLMF/LSF HF

1) With preheat ECG

Additional product data

Base (standard designation) G5
Mercury content 1.2 mg
Product remark Suitable for ECG operation only, Lamp designed for internal luminaire temperatures of 30…40 °C; optimum luminous flux achieved at 35 °C

Capabilities

Suitable for indoor Yes
Dimmable Yes

Certificates & Standards

Energy efficiency class A+
Energy consumption 39.05 kWh/1000h

Country-specific categorizations

ILCOS FDH-35/865-L/P/-G5-16/1449
Order reference HE 35W/865

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LFL_T5_HE
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G5
Envelope No
Length 1449.00 mm
Height 16,0 mm
Width 16,0 mm
Beam angle correspondence SPHERE_360

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Up to 20 % more economical than LUMILUX® T8
Areas of application
  • Public buildings
  • Offices
  • Shops
  • Supermarkets and department stores
  • Industry
  • Outdoor applications only in suitable luminaires
Product features
  • Very good lumen maintenance: 90 % throughout the service lifetime of the lamp
  • Good color rendering index
  • Dimmable
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300464664 Unpacked
1		 1,461 mm x 15 mm x 15 mm 132.00 g 0.33 dm³
4050300464671 Shipping box
40		 1,496 mm x 199 mm x 87 mm 5182.00 g 25.90 dm³
Product image: white background, diagonal
324626_LUMILUX T5 HE H IGH EFFICIENCY TIF (2.11 MB)
Product image: white background, horizontal
37228_LUMILUX T5 HE SVG (683.42 KB)

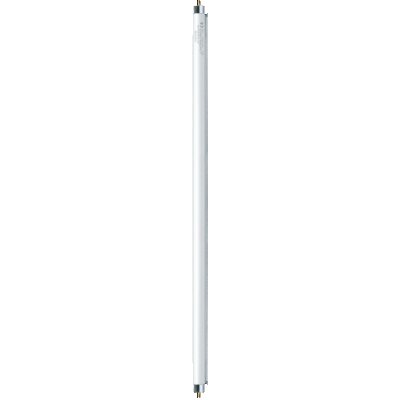

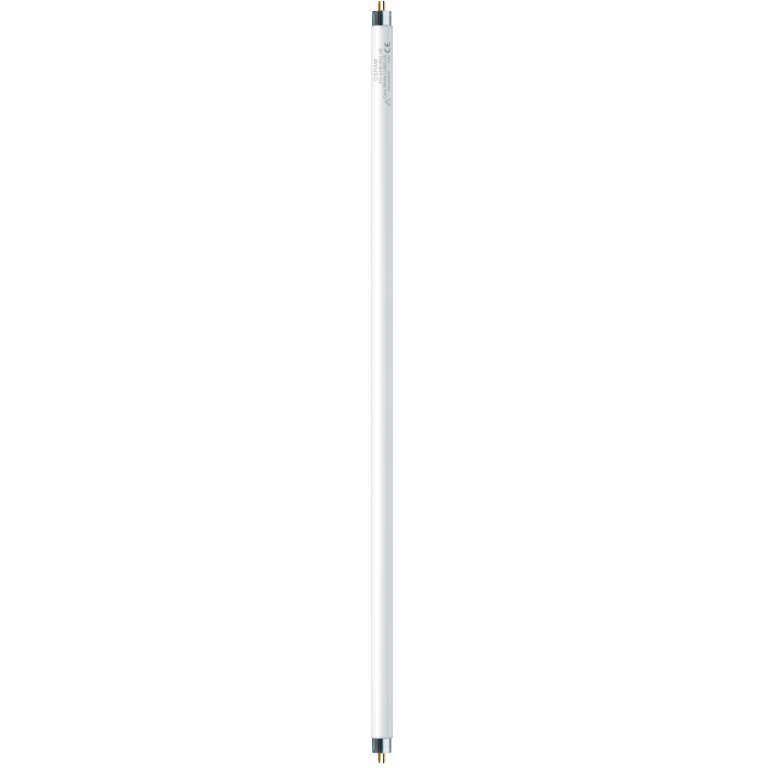

Product image: white background, upright
37755_LUMILUX FH HE TIF (3.51 MB)
Product line drawing with letters
2804_FLUORESCENT LAMP T5, G5 BASE Base: G5 SVG (6.15 KB)
Product line drawing, front, no dimensions
325856_FLUORESCENT LAM P (BASIC T5/LUMILUX T5 ) G5 BASE SVG (2.79 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
Spectral power distribution
349641_FL_865 PNG (92.75 KB)
EAN SEG number STK number EFO number
4050300464664 8328573 4931086 3860432
