LED ECO PAR16

Choose your product version

36 ° 2.5 W/3000 K GU10

36 ° 2.5 W/6500 K GU10

36 ° 4 W/3000 K GU10

120 ° 4.5 W/3000 K GU10

36 ° 4 W/4000 K GU10

120 ° 4.5 W/4000 K GU10

120 ° 4.5 W/6500 K GU10

36 ° 5 W/3000 K GU10

36 ° 5 W/4000 K GU10

36 ° 5 W/6500 K GU10

36 ° 5 W/6500 K GU10

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED ECO PAR16 36 ° 2.5 W/3000 K GU10 GU10 2.5 W 220…240 V 8000 h 230 lm 35 W 36 ° No
LED ECO PAR16 36 ° 2.5 W/6500 K GU10 GU10 2.5 W 220…240 V 8000 h 230 lm 35 W 36 ° No
LED ECO PAR16 36 ° 4 W/3000 K GU10 GU10 4 W 220…240 V 8000 h 350 lm 50 W 36 ° No
LED ECO PAR 16 120 ° 4.5 W/3000 K GU10 GU10 4.5 W 220…240 V 15000 h 350 lm 35 W 120 ° No
LED ECO PAR16 36 ° 4 W/4000 K GU10 GU10 4 W 220…240 V 8000 h 350 lm 50 W 36 ° No
LED ECO PAR 16 120 ° 4.5 W/4000 K GU10 GU10 4.5 W 220…240 V 15000 h 350 lm 35 W 120 ° No
LED ECO PAR 16 120 ° 4.5 W/6500 K GU10 GU10 4.5 W 220…240 V 15000 h 350 lm 35 W 120 ° No
LED ECO PAR 16 36 ° 5 W/3000 K GU10 GU10 5 W 220…240 V 15000 h 400 lm 50 W 36 ° No
LED ECO PAR 16 36 ° 5 W/4000 K GU10 GU10 5 W 220…240 V 15000 h 400 lm 50 W 36 ° No
LED ECO PAR 16 36 ° 5 W/6500 K GU10 GU10 5 W 220…240 V 15000 h 400 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/6500 K GU10 GU10 5 W 220…240 V 15000 h 400 lm 50 W 36 ° No


LED ECO PAR 16 120 ° 4.5 W/6500 K GU10

Product benefits
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Clear cast shadows for brilliant accent light
  • Energy savings of up to 93 % (compared to halogen lamps)
  • High color homogeneity
  • Easy replacement of halogen lamps thanks to compact design
  • Quick and simple LED conversion without modification of the existing installtion
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.5 W
Construction wattage 4.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 35 W
Nominal current 49 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous intensity 130 cd
Luminous flux 350 lm
Nominal useful luminous flux 90° 350 lm
Luminous efficacy 77 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 130 cd

Light technical data

Beam angle 120 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 54.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 42.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) GU10
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F
Energy consumption 5.00 kWh/1000h
Type of protection IP20
Standards CB, ROHS
Photobiological safety group acc. to EN62778 RG1

Country-specific categorizations

Order reference LEPAR1635120 4,

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU10
Correlated colour temperature type SINGLE_VALUE
Length 54.00 mm
Height 50.00 mm
Width 50.00 mm
EPREL ID 686620
Model number AC32043

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Clear cast shadows for brilliant accent light
  • Energy savings of up to 93 % (compared to halogen lamps)
  • High color homogeneity
  • Easy replacement of halogen lamps thanks to compact design
  • Quick and simple LED conversion without modification of the existing installtion
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Hospitality
  • Restaurants
  • Residential interiors
Product features
  • High-quality LED replacement for halogen reflector lamps
  • High color consistency: < 6 SDCM
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075725706 Folding box
1		 52 mm x 52 mm x 60 mm 55.00 g 0.16 dm³
4058075725713 Shipping box
10		 270 mm x 114 mm x 72 mm 625.00 g 2.22 dm³

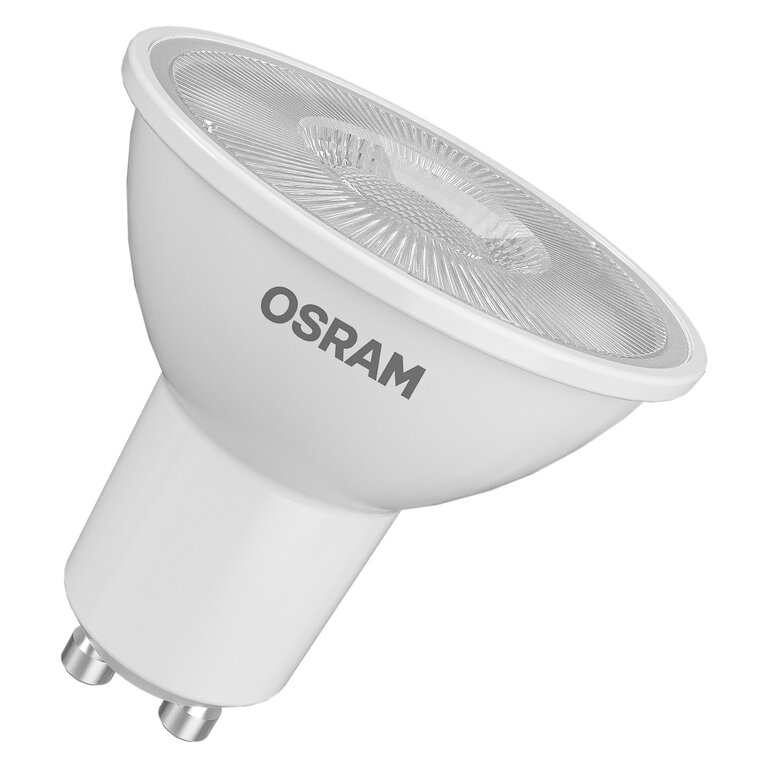

Product image: white background, diagonal with OSRAM logo
LED PAR 1650120 230V G U10 OSRAM JPG (1.94 MB)

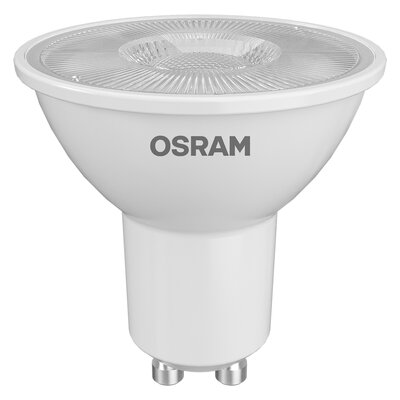

Product image: white background, upright, OSRAM logo
LED PAR 1650120 230V G U10 OSRAM JPG (2.07 MB)
Product line drawing with numbers
LED PAR 1650120 230V G U10 OSRAM SVG (3.17 KB)
Energy label
EL-4058075725706-AC320 43 PDF (21.49 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
