LED ECO PAR16

Choose your product version

36 ° 2.5 W/3000 K GU10

36 ° 2.5 W/6500 K GU10

36 ° 4 W/3000 K GU10

120 ° 4.5 W/3000 K GU10

36 ° 4 W/4000 K GU10

120 ° 4.5 W/4000 K GU10

120 ° 4.5 W/6500 K GU10

36 ° 5 W/3000 K GU10

36 ° 5 W/4000 K GU10

36 ° 5 W/6500 K GU10

36 ° 5 W/6500 K GU10

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED ECO PAR16 36 ° 2.5 W/3000 K GU10 GU10 2.5 W 220…240 V 8000 h 230 lm 35 W 36 ° No
LED ECO PAR16 36 ° 2.5 W/6500 K GU10 GU10 2.5 W 220…240 V 8000 h 230 lm 35 W 36 ° No
LED ECO PAR16 36 ° 4 W/3000 K GU10 GU10 4 W 220…240 V 8000 h 350 lm 50 W 36 ° No
LED ECO PAR 16 120 ° 4.5 W/3000 K GU10 GU10 4.5 W 220…240 V 15000 h 350 lm 35 W 120 ° No
LED ECO PAR16 36 ° 4 W/4000 K GU10 GU10 4 W 220…240 V 8000 h 350 lm 50 W 36 ° No
LED ECO PAR 16 120 ° 4.5 W/4000 K GU10 GU10 4.5 W 220…240 V 15000 h 350 lm 35 W 120 ° No
LED ECO PAR 16 120 ° 4.5 W/6500 K GU10 GU10 4.5 W 220…240 V 15000 h 350 lm 35 W 120 ° No
LED ECO PAR 16 36 ° 5 W/3000 K GU10 GU10 5 W 220…240 V 15000 h 400 lm 50 W 36 ° No
LED ECO PAR 16 36 ° 5 W/4000 K GU10 GU10 5 W 220…240 V 15000 h 400 lm 50 W 36 ° No
LED ECO PAR 16 36 ° 5 W/6500 K GU10 GU10 5 W 220…240 V 15000 h 400 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/6500 K GU10 GU10 5 W 220…240 V 15000 h 400 lm 50 W 36 ° No


LED ECO PAR16 36 ° 5 W/6500 K GU10

Product benefits
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Clear cast shadows for brilliant accent light
  • Energy savings of up to 93 % (compared to halogen lamps)
  • High color homogeneity
  • Easy replacement of halogen lamps thanks to compact design
  • Quick and simple LED conversion without modification of the existing installtion
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 50 W
Nominal current 42 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous intensity 700 cd
Luminous flux 400 lm
Luminous efficacy 80 lm/W
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 700 cd

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 54.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 19.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) GU10
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference LPAR1650 5W/865

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU10
Length 54.00 mm
Height 50.00 mm
Width 50.00 mm
Displacement factor >0.7

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Clear cast shadows for brilliant accent light
  • Energy savings of up to 93 % (compared to halogen lamps)
  • High color homogeneity
  • Easy replacement of halogen lamps thanks to compact design
  • Quick and simple LED conversion without modification of the existing installtion
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Hospitality
  • Restaurants
  • Residential interiors
Product features
  • High-quality LED replacement for halogen reflector lamps
  • High color consistency: < 6 SDCM
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075204591 Folding box
1		 50 mm x 100 mm x 125 mm 55.00 g 0.63 dm³
4099854265976 Shipping box
10		 255 mm x 107 mm x 72 mm 313.00 g 1.96 dm³
4058075204607 Shipping box
10		 255 mm x 107 mm x 72 mm 420.00 g 1.96 dm³
Product image: white background, diagonal
LED ECO PAR16 GU10 JPG (1.19 MB)
Product image: white background, upright
LED ECO PAR16 GU10 JPG (1.16 MB)
Product line drawing, front, no dimensions
LED VALUE PAR16 4.5 W GU10 SVG (5.28 KB)

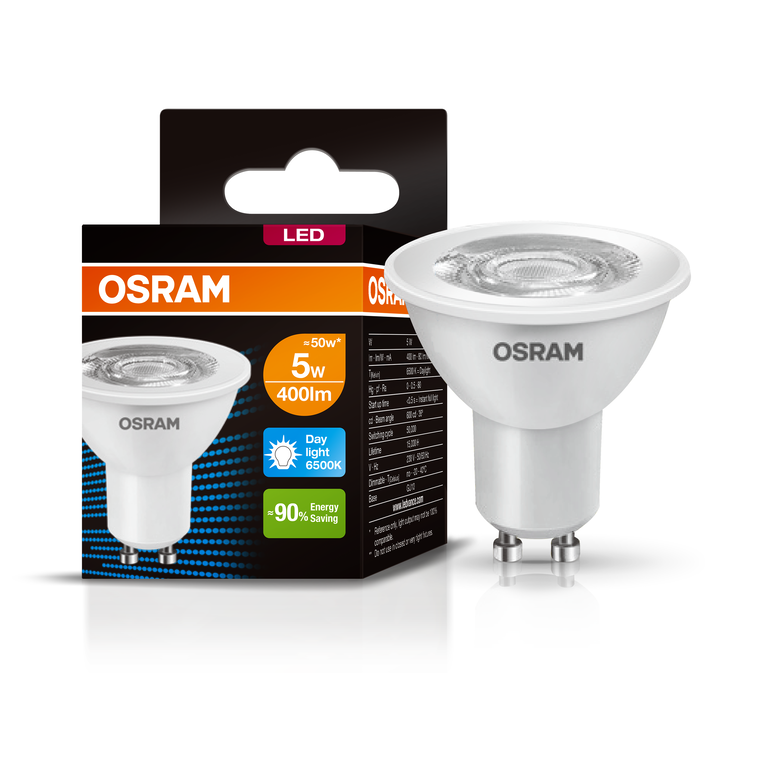

Combo Shot = Product Beauty Shot + Packaging Image
LEPAR165036 5W/865 230 V GU10 OSRAM TIF (49.05 MB)

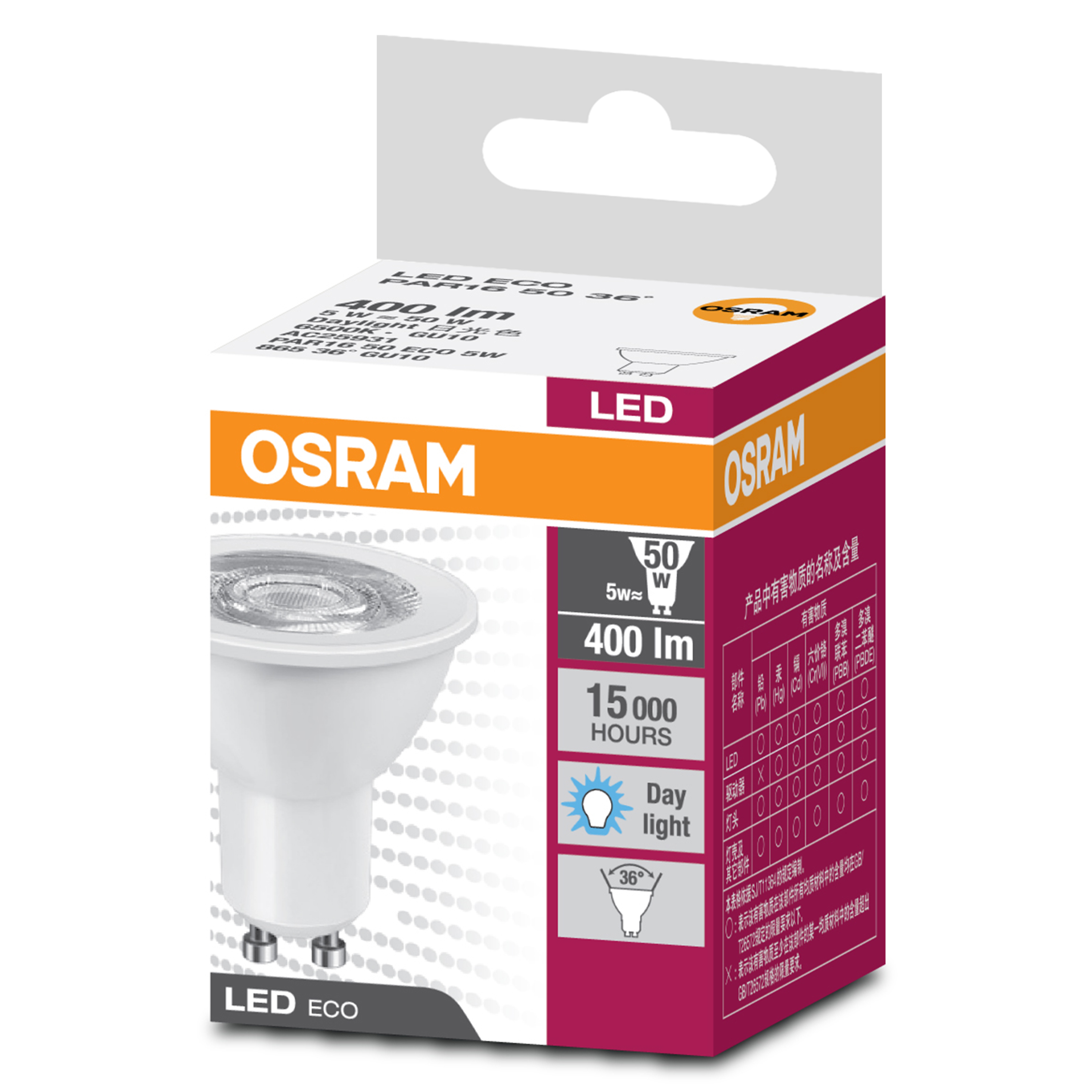

Packaging image, spacial
LEPAR165036 5W 865 230 V GU10 JPG (1.01 MB)
IES file (IES)
LED ECO PAR16 50 GU10 IES (7.41 KB)
